180kw PET Monofilament Machine

Basic Information
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per year
Detail Information
Material: PET Recycle Application: Green Nets
Yarn Size: 0.1-0.15mm Capacity: 100kg/h
Power: 180kw Brand: Leap
Screw L:D: 30:1 Speed: 160m/min
High Light:

PET recycle Monofilament Machine

,

180kw PET Monofilament Machine


Product Description

PET Monofilament Machine For Shading Green Nets 0.1-0.15mm 100kg/h



Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0~72 rpm. Screw: Zhejiang Zhoushan.

(2) L:D: 30:1, Material of screw: 38CrMoALA ,

The screw is suitable for PET recycle.

(3) Pressure automatic feedback system can adjust the screw speed automatically to ensure the uniform of yarn.

(4) Material of barrel heater: Far infarad.

(5) Metering pump 50cc, rotation speed: 0-45 rotation.

(6) Round spinneret: 1 set.

(7) Two color doser: 1 set



2. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) Using heating pipe, power:18KW.

(4) Equip one suction device under the yarn support plate.



3. Seven roller stretching unit A

(1) Seven variable diameter rollers.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-out oil lubrication system which makes the gears runs steady.

(4) Equip 1 pressing roller.

(5) Equip water collecting plate at bottom.



4. Overflow type hot water tank:1 set

(1) Tank size: 4000mm

(2) Heating power: 45KW in 2 zones,

(3) The tank is made by SS 304 with insulating layer.

(4) Water removal device: 2 sets with 5.5kw fan.

(5) Water circulating water pump 2 sets



5. Seven roller stretching unit B

(1) Seven variable diameter rollers which made by steel pipe.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.

(4) Equip 1 pressing roller at exit.



6. Spindle winder: 336 spindles

(1) Bobbin as client's request.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) The frame transmit by gear rack

(4) Max design speed: 0-18m/min



7. Waster yarn collectors: 1 sets

(1) Torque motor power: 80KG.cm



8. Total installation power: 180KW

9. Total weight: 20T


Parameter:
Screw diameter Φ90mm
Raw material PET recycle Filament size 0.1-0.15mm
Capacity 100Kg/H Filament shape round
Screw L:D 30:1 Stretching unit 2 sets
Screw material 38CrMoALA Winder 336 spindles
Max linear speed 160m/min Instillation power 180Kw
Nozzle holes 6 holes Overall size 28×2.5×3.5m


Pictures:

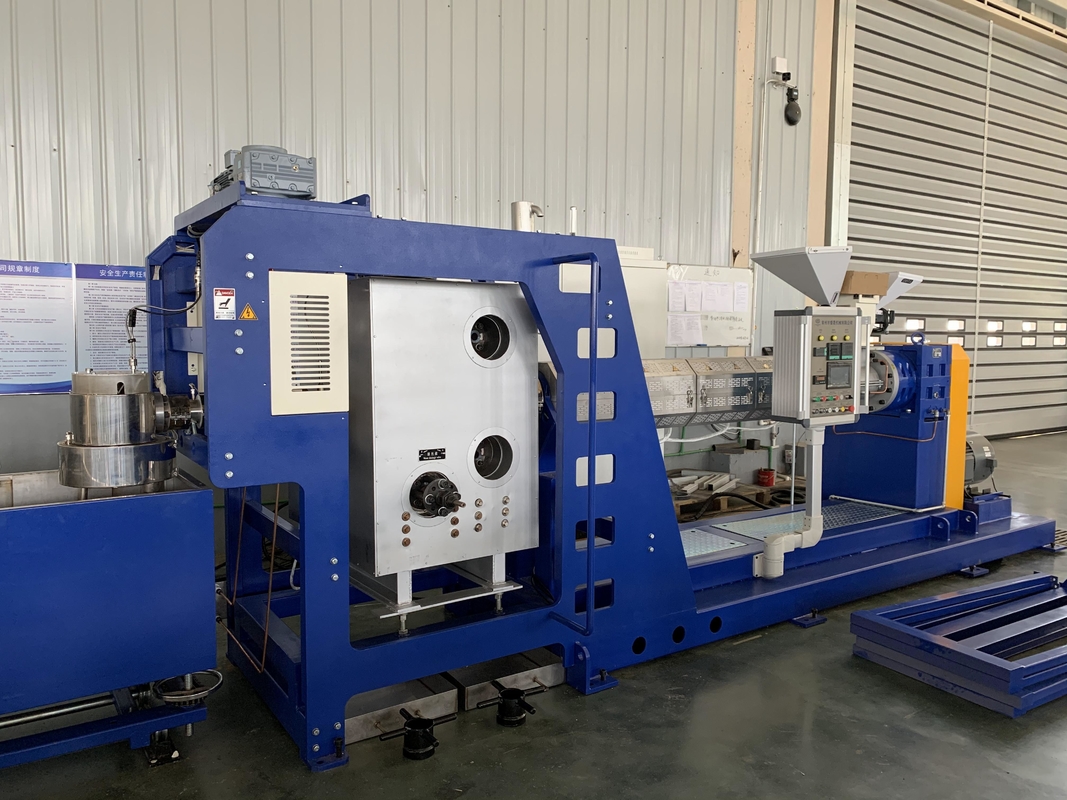

180kw PET Monofilament Machine 0
