Nylon Tooth Brush Manufacturing Machine

Basic Information
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per year
Detail Information
Raw Material: Nylon Application: Tooth Brush
Screw: 2 Sets Spinneret: 1 Set
Sharp: Core-Sheath Conjugated Capacity: 30kg/h
Power: 300kw Diameter: 0.18mm
High Light:

300kw tooth brush manufacturing machine

,

Nylon tooth brush manufacturing machine


Product Description

Brush Making Machine For Nylon Core-Sheath Conjugated Tooth Brush Filament



Product Description:

1. Extruder

(1) Screw A diameter: 50mm; Rotation speed: 0~72rpm.

(2) Screw B diameter: 50; Rotation speed: 0~72rpm.

(3) L:D: 33:1; The screw structure is special designed for PP/PE virgin material.

(4) Pressure automatic feedback system to adjust the screw speed.

(5) Cast aluminums screw heater with stainless steel insulation layer.

(6) Electrical heating spinneret device: 1 set

(7) Heater: Electric heating ring.

(8) Melt pump: 2 sets



2. Quenching tank: 1 set

(1) The tank is made by stainless steel 304.

(2) The height of tank is horizontal pushing structure.



3. The first seven roller stretching unit: 1 set

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Jiangsu Guomao Reducer

(4) Built-out oil lubrication system which makes the gears run steady.

(5) Working height: 1100mm



4. Hot water tank:1 set

(1) Heating power: 27kw, two zones heater.

(2) Double pressure rollers with twin cylinder opening system.

(3) Water removal device with suction motor.



5. The second seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) Working height: 1100mm



6. Single layer hot blast annealing oven: 1 set

(1) Fan power: 2.2KW×2 sets

(2) Heating power: 23KW

(3) Oven length: 5000 mm

(4) Special design of hot air channel which make the temperature evenly.



7. Seven roller stretching unit C, with brake resistor

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.

(4) Working height: 1100mm



8. Lubricating system: 1 set

(1) Frequency control of speed



9. Tapered winder: 180 spindles

(1) Tube is according to the client’s requirements.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) The frame transmit by gear rack

(4) Winding motor: 5KG

(5) Max design speed: 0-180m/min



Specification:

Screw diameter Φ50mm+Φ50mm
Raw material Nylon Filament size 0.18mm
Capacity 30Kg/H Filament shape

Core-Sheath

Screw L:D 30:1 Stretching unit 3 sets
Screw material 38CrMoALA Winder 180 spindles
Max linear speed 120m/min Instillation power 200Kw
Nozzle holes 168 holes Overall size 40×2.8×2.8m


Pictures:

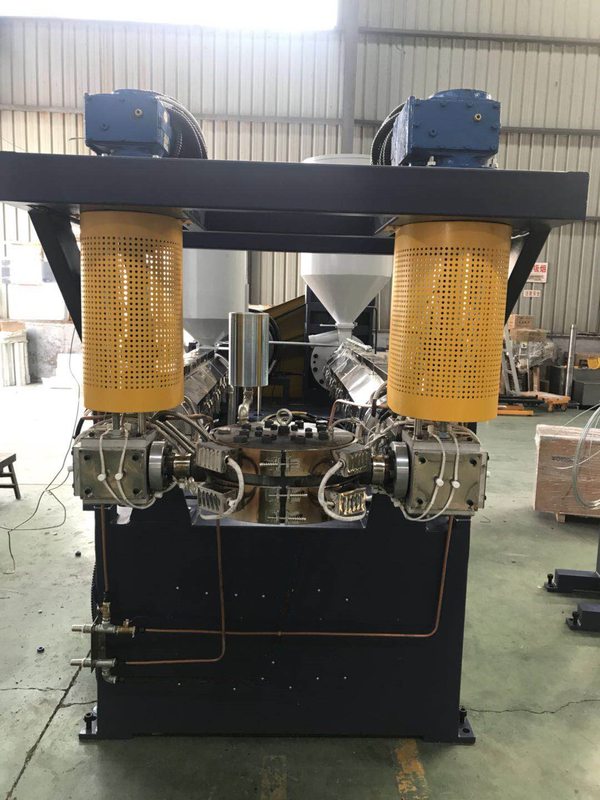

Nylon Tooth Brush Manufacturing Machine 0
