100kg/H PET Monofilament Machine 1-4mm Plastic Steel Wire Making

Screw dia.: 90mm; Rotation speed: 0～100rpm, Screw manufacturer: Zhejiang Zhoushan

(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is special design for PET bottle flakes and PET granular.

(3) Hard tooth reducer: Jiangsu Haoke Gearbox

(4) RKC Pressure automatic feedback system which can adjust the screw speed automatically

(5) Melt filter: 2.5m2 double position filter changer

(6) Equip magnet base with window.

(7) Equip one color dosing system.

(8) 70cc Metering pump:1 set

(9) Driving power of metering pump: 3.7kw, 0-45 rpm

(10) Spinneret device: 1 set

(11) Heater: Electric heating ring, heating power: 4kw

(12) Nozzle: 2 pieces with the disassembly support

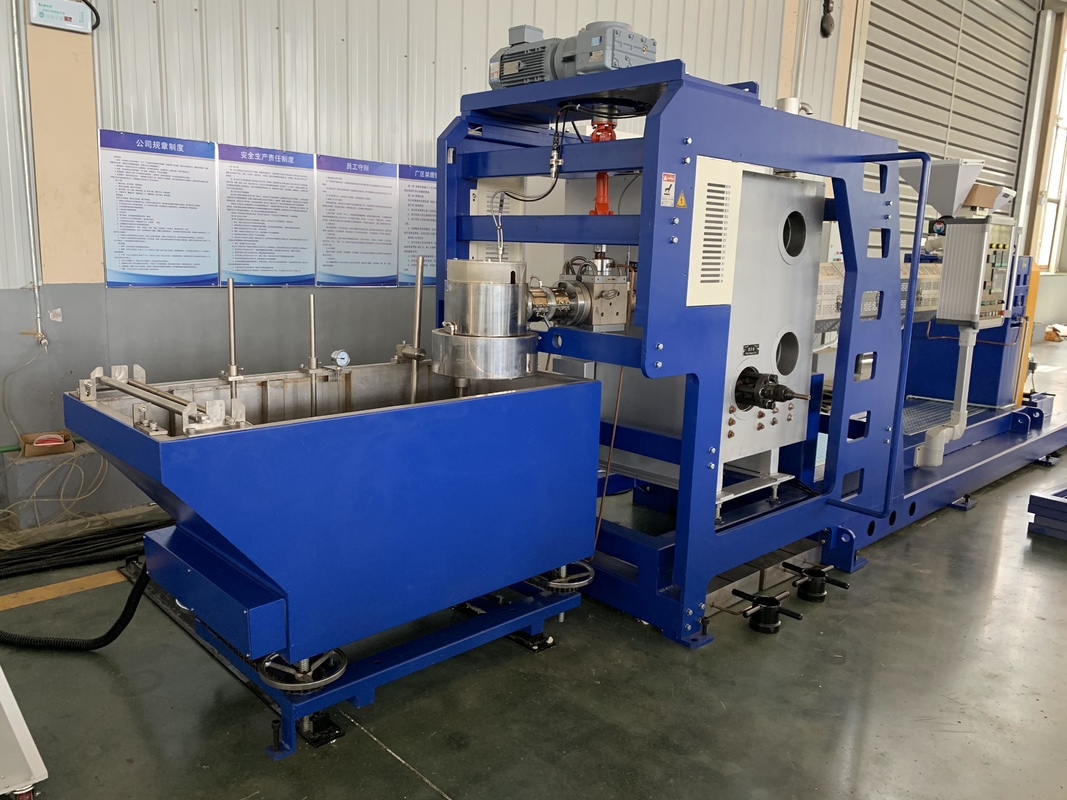

2. Cooling water tank: 2 sets

(1) The tank is made by stainless steel 304.

(2) The height of tank is horizontal pushing structure is conveniently to disassembly the spinneret.

(3) Air chiller: 1 set

3. Seven roller Stretching unit A, 0-40m

(1) Roller size: φ270×450×7,

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(5) Built-out oil lubrication system which makes the gears run steady.

(6) Equip single pressing roller

(7) The center height is 1100mm

4. Hot water Tank:1 set

(1) Water tank length: 4000mm

(2) Heating power: 35KW; Electrical heating, the heating pipe are in the tank.

(3) Material is stainless steel 304 with heat preservation.

(4) Equip brush for water removal.

(5) Equip one moisture absorption device

5. Seven rollers stretching unit B: 0-160m

(1) Roller size: φ270×450×7,

(2) Power of motor: 11KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(5) Built-out oil lubrication system which makes the gears run steady.

(6) Equip one pressing rollers

(7) The center height is 1100mm

6. Single layers hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 23KW

(3) Oven length: 4300 mm

(4) Special design of hot air channel which make the temperature evenly.

7. Seven rollers stretching unit C: 0-180m

(1) Roller size: φ270×450×7

(2) Power of motor: 11KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4)Driving motor and reducer:Jiangsu Guomao Reducer

(5) Built-out oil lubrication system which makes the gears run steady.

(6) Equip single pressing roller

(7) The center height is 1100mm

8. Single layers hot blast setting oven: 1 set

(1) Fan power: 2.2KW×2 sets,

(2) Heating power: 23KW

(3) Oven length: 5000 mm

(4) Special design of hot air channel which make the temperature evenly.

9. Seven rollers stretching unit D

(1) Roller size: φ270×450×7

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(5) Built-out oil lubrication system which makes the gears run steady.

(6) Equip single pressing roller

(7) The center height is 1100mm

10. Lubricating system: 1 set

(1) Motor and reducer are from Taiwan CPG

11. Winding collector:8 spindles

(1) Tube size according to the customer’s requirements.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) Winding motor: 15KG

total capacity: 220KW,

total dimension: 40×2.5×2m,

total weight: 20T
