Zipper PET Monofilament Yarn Making Machine 7.5KW High Accuracy

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 s per year

Get Best Price
High Light:

7.5KW PET monofilament yarn making machine

,

Zipper PET monofilament yarn making machine

,

Zipper PET monofilament extrusion line

Application:
Zipper
Screw Diameter:
90mm
Monofilament Diameter:
0.48-1.01mm
Speed:
140m/min
Material:
Bottle Flakes
Control:
PLC
Frequency:
50Hz
Application:
Zipper
Screw Diameter:
90mm
Monofilament Diameter:
0.48-1.01mm
Speed:
140m/min
Material:
Bottle Flakes
Control:
PLC
Frequency:
50Hz
Zipper PET Monofilament Yarn Making Machine 7.5KW High Accuracy

PET Monofilament Making Machine for zipper Monofilament by bottle flakes



Product Description:



1. Extruder: 1 set

(1) Screw dia.: 105mm; Rotation speed: 0~80rpm,

(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is special design for PET bottle flakes and PET granular.

(3) Hard tooth reducer: Jiangsu Haoke Gearbox.

(4) RKC Pressure automatic feedback system which can adjust the screw speed automatically

(5) Melt filter: 3.5m2 double position filter changer

(6) Pressure sensor and gauges: Shanghai Zhaohui

(7) Equip magnet base with window.

(8) Equip one color dosing system.

(9) 100cc Metering pump:1 set

(10) Driving power of metering pump: 3.7kw,0-45 rpm

(11) Heater: Electric heating ring.

(12) Spinneret device: 1 Set

(13) Nozzle: 2 pieces with the disassembly support



2. Cooling Water Tank:1 set

(1) The tank is made by Stainless Steel 316.

(2) The height of tank is adjustable and the horizontal pushing structure is conveniently to disassembly the spinneret.

(3) Use big window with double spotlight.

3. Seven roller Stretching unit A, 0-40m

(1) Roller size: φ270×750×7,

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(5) Built-out oil lubrication system which makes the gears run steady.

(6) Equip single pressing roller

(7) The center height is 1100mm

4. Hot water Tank:1 set

(1) Size (L×W×H) : 4000×800×1100 mm

(2) Heating power: 35KW; Electrical heating, the heating pipe are in the tank.

(3) Material is stainless steel 304 with heat preservation.

(4) Equip brush for water removal.

(5) Equip one moisture absorption device: 4KW

6. Seven rollers stretching unit B: 0-160m

(1) Roller size: φ270×750×7,

(2) Power of motor: 15KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(5) Built-out oil lubrication system which makes the gears run steady.

(6) Equip one pressing rollers

(7) The center height is 1100mm

7. Single layers hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 23KW

(3) Oven length: 4300 mm

(4) Special design of hot air channel which make the temperature evenly.

8. Seven rollers stretching unit C: 0-180m

(1) Roller size: φ270×750×7

(2) Power of motor: 15KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer:Jiangsu Guomao Reducer

(5) Built-out oil lubrication system which makes the gears run steady.

(6) Equip single pressing roller

(7) The center height is 1100mm

9. Single layers hot blast setting oven: 1 set

(1) Fan power: 2.2KW×2 sets,

(2) Heating power: 23KW

(3) Oven length: 5000 mm

(4) Special design of hot air channel which make the temperature evenly.

10. Seven rollers stretching unit D

(1) Roller size: φ270×750×7

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(5) Built-out oil lubrication system which makes the gears run steady.

(6) Equip single pressing roller

(7) The center height is 1100mm

11. Lubricating system: 1 set

(1) Motor and reducer are from Taiwan CPG



12. Waster yarn collectors: 1 set

(1) Torque motor power: 80KG.cm

13. Winding collector:80 spindles

(1) Tube size according to the customer’s requirements.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) Winding motor: 15KG

(4) Each spindle has on/off switch. Each screen has one voltage regulator.

(5) The winder is back to back type.

total capacity: 340KW,

total dimension: 41.5×2.5×2m,

total weight: 25T



Specification:

Screw diameter Φ90-120mm
Raw material PET  Filament size 0.4-1.05mm
Capacity 100-250Kg/H Filament shape round/profile
Screw L:D 30:1 Stretching unit 4 sets
Screw material 38CrMoALA Winder 66-88 spindles
Max linear speed 200m/min Instillation power 200-300Kw
Nozzle holes 40-80 holes Overall size 42-58×2.8×2.8m

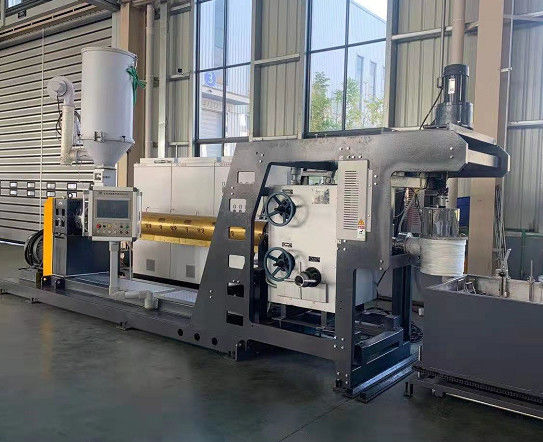

Picture:

Zipper PET Monofilament Yarn Making Machine 7.5KW High Accuracy 0
