PP Monofilament Extrusion Line Machine Monofilament Extruder 800-5000 Denier
Key Attributes
Product Summary
PP Danline Monofilament Making Machine For Weaving Fabric 800-5000 Denier Machine components: 1. Extruder: 1 set 2. Cooling water tank: 1 set 3. Seven roller stretching unit A 4. Double layer hot blast stretching oven: 1 set 5. Seven roller stretching unit B. 6. Single layers hot blast stretching ...
Product Details
800 Denier PP monofilament extrusion line
,5000 Denier PP monofilament extrusion line
,5000 Denier monofilament extruder
PP Danline Monofilament Making Machine For Weaving Fabric 800-5000 Denier
Machine components:
1. Extruder: 1 set
2. Cooling water tank: 1 set
3. Seven roller stretching unit A
4. Double layer hot blast stretching oven: 1 set
5. Seven roller stretching unit B.
6. Single layers hot blast stretching oven: 1 set
7. Seven roller stretching unit C.
8. Waster yarn collectors: 1 set
9. Spindle winder: 336spindles.
Specification list:
|
Screw diameter |
Φ90-120mm | ||
|
Raw material |
PP,PE |
Filament size |
1500-8000D |
|
Capacity |
150-350Kg/H |
Filament shape |
flat/profile |
|
Screw L:D |
32:1 |
Stretching unit |
2-3unit |
|
Screw material |
SACM645/38CrMoALA |
Winder |
spool or twister |
|
Max linear speed |
160m/min |
Instillation power |
280-400Kw |
|
Nozzle holes |
80-160 |
Overall size |
36-50×3×3m |

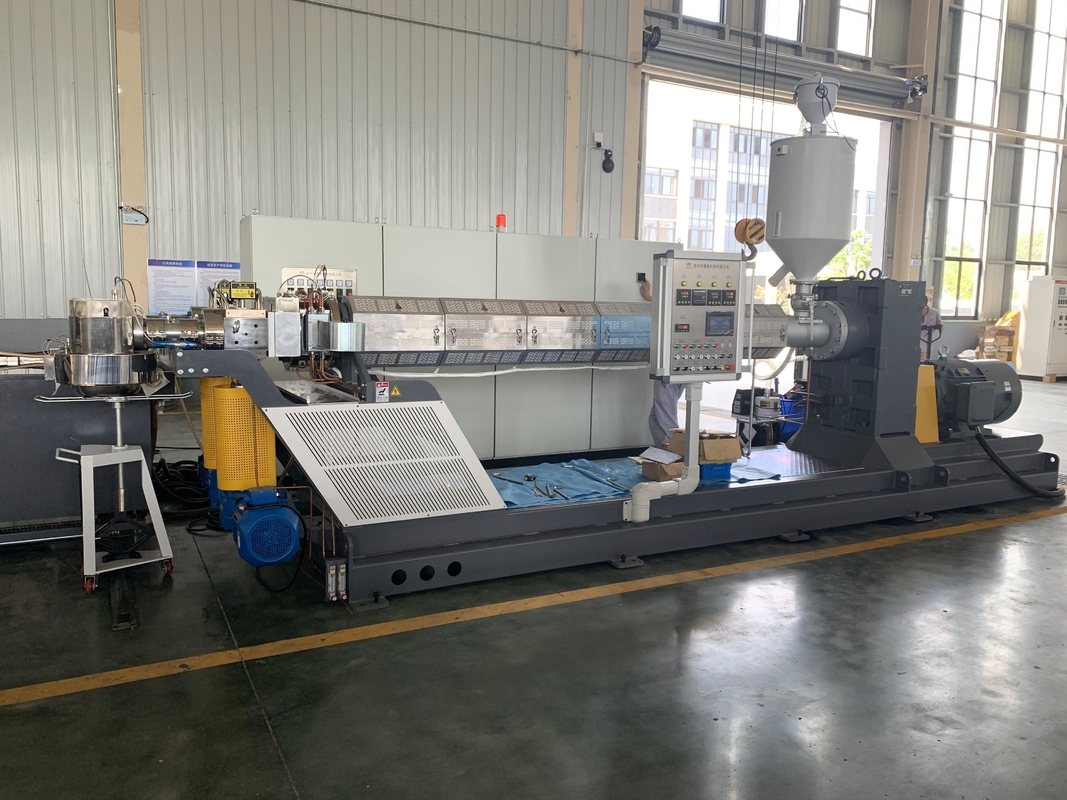

Pictures:
