0.25mm Monofilament Making Machine

Basic Information
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS90
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Material: Polyester Yarn Diameter: 0.13-0.25mm
Capacity: 100kgh Application: Packing
Power: 175kw Length: 29m
Width: 2.5m Winder: 33 Spindles
High Light:

Monofilament Making Machine 100kgh

,

Monofilament Making Machine 0.25mm


Product Description

Monofilament Making Machine For Polyester Packing Rope 0.13-0.25mm 100kgh

Product Description:

1. Extruder: 1 set

(1) Screw dia.: 90mm; Rotation speed: 0~100rpm,

(2) L:D: 30:1; Material of screw: 38CrMoALA;

(3) Pressure automatic feedback system can adjust the screw speed automatically.

(4) Melt filter: Double position melt filter changer.

(5) Spinneret device: 2 sets

(6) Metering pump:2 sets

(7) Heater: Electric heating ring to make sure the temperature evenly.



2. Cooling Water Tank:1 set

(1) The tank is made by Stainless Steel 304.

(2) The height of tank is adjustable and the horizontal pushing structure is conveniently to disassembly the spinneret.



3. Seven roller Stretching unit A,

(1) Seven pieces variable diameter roller with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.



4. Hot water Tank:1 set

(1) Heating power: 50KW; Electrical heating, the heating pipe are in the tank.

(2) Material is stainless steel 304 with heat preservation.



5. Seven rollers stretching unit B: 0-180m

(1) Seven pieces variable diameter roller with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.



6. Spindle winder

(1) Cops winder or spool winder.

(2) Winding bobbin: inner diameter 38mm× L 280mm



7. Running capacity: 120 KW



Parameter:

Screw diameter Φ90mm
Raw material Polyester Filament size 0.12-0.25mm
Capacity 150Kg/H Filament shape hollow
Screw L:D 30:1 Stretching unit 2 sets
Screw material 38CrMoALA Winder 33 spindles
Max linear speed 160m/min Instillation power 200Kw
Nozzle holes 400 holes Overall size 28×2.5×2.5m


Pictures:

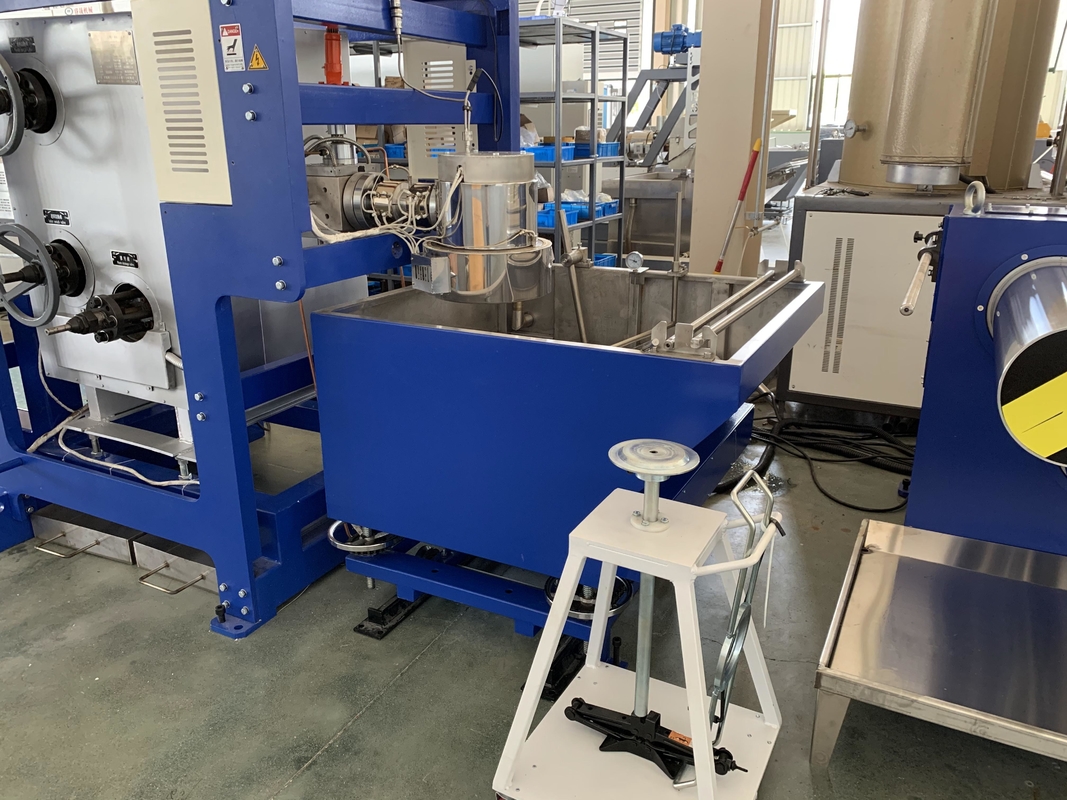

0.25mm Monofilament Making Machine 0
