PP Danline Monofilament Making Machine High Strength Rope 300kg/H

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50 sets per year

Get Best Price
High Light:

300kg/H Monofilament Making Machine

,

PP Danline Monofilament Making Machine

,

PP Danline monofilament extrusion plant

Application:
Rope
Product Name:
PP Danline
Capacity:
300kgh
Strength:
High
Screw Size:
120mm
Power:
350kw
Oven:
3 Sets
Length:
40 Meters
Application:
Rope
Product Name:
PP Danline
Capacity:
300kgh
Strength:
High
Screw Size:
120mm
Power:
350kw
Oven:
3 Sets
Length:
40 Meters
PP Danline Monofilament Making Machine High Strength Rope 300kg/H

PP Danline Monofilament Making Machine For Rope High strength 300kg/h



Product Features:



Product Name:

PP Danline Rope Monofilament Extruding Machine

Yarn diameter: 0.15-0.35mm
Capacity: 7 tons
Screw diameter: 120mm
Rotation speed of screw: 0~80 rpm
Running capacity: 200 KW



Product Description:



1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0~80 rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

the screw is suitable for PP+PE Virgin.

(3) Filter: Manual/Auto filter changer.

(4) RKC pressure automatic feedback system which can adjust the screw speed automatically.

(5) Material of barrel heater: Cast aluminums with stainless steel insulation layer.

(6) Metering pump, rotation speed: 0-45 rotation.

(7) Electrical heating round spinneret: 1 set

(8) Ceramic heating rings for spinneret with SS insulating layer. Heating power: 4kw

(9) Spinneret plate: 2 pieces

Spinneret components: 2 sets

2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the automatic lifting of tank.

(3) Special designed roller guider to separate the yarn in the tank easily.

3. Drying system:1 set

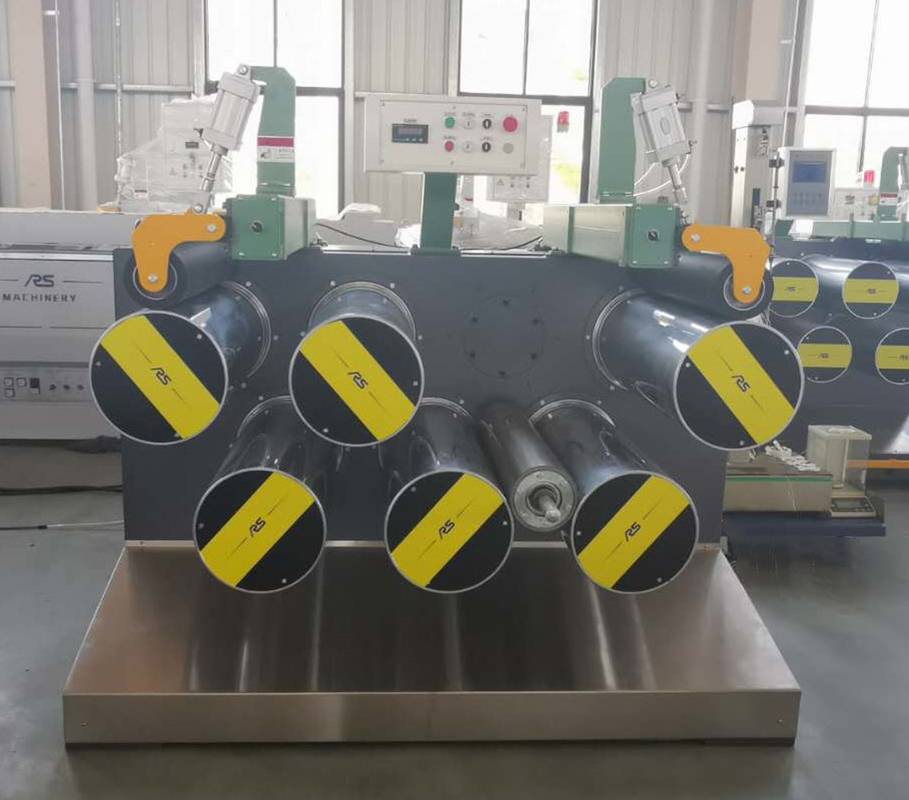

4. Seven roller stretching unit A

(1) Five variable diameter rollers and two steel rollers.

(2) Max drafting force: 1000 daN.

(3) Steel box with accurately grind gear makes the rollers run smoothly.

(4) Built-out oil lubrication system which makes the gears runs steady.

The bearings are from TIMKEN-TWB.

5. Double layers hot blast stretching oven: 2 sets

(1) Heating power: 23KW×2

(3) Oven length: 5000 mm

(4) Special design of hot air channel which make the temperature evenly.

6. Seven roller stretching unit B

(1) Six variable diameter rollers and one embossing roller.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.

The bearings are from TIMKEN-TWB.

7. Spindle winder or ring twisting winder

(1) Bobbin size : 8 inch tube.

8. Total installation power: 190KW




Pictures:

PP Danline Monofilament Making Machine High Strength Rope 300kg/H 0
