240kw Monofilament Making Machine

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Get Best Price
Highlight:

ISO90001 monofilament making machine

,

240kw monofilament making machine

Application:
Braided Mooring Rope
Material:
Polypropylene
Strands:
3
Rope Diameter:
8mm
Screw Diamter:
90mm
Power:
240 Kw
Oven:
1 Set
Voltage:
Customized
Application:
Braided Mooring Rope
Material:
Polypropylene
Strands:
3
Rope Diameter:
8mm
Screw Diamter:
90mm
Power:
240 Kw
Oven:
1 Set
Voltage:
Customized
240kw Monofilament Making Machine

Monofilament Extrusion Process For Polypropylene braided Mooring Rope 8mm



Parameter:

Yarn diameter: 0.3mm
Capacity: 4 tons
Screw diameter: 90mm
Rotation speed of screw: 0~80 rpm
Installation capacity: 240 KW


Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0~80 rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

(3) Filter: Manual/Auto filter changer.

(4) Pressure automatic feedback system.

(5) Material of barrel heater: Cast aluminums.

(6) Metering pump, rotation speed: 0-45 rotation.

(7) Electrical heating round spinneret: 1 set



2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way



3. Drying system:1 set

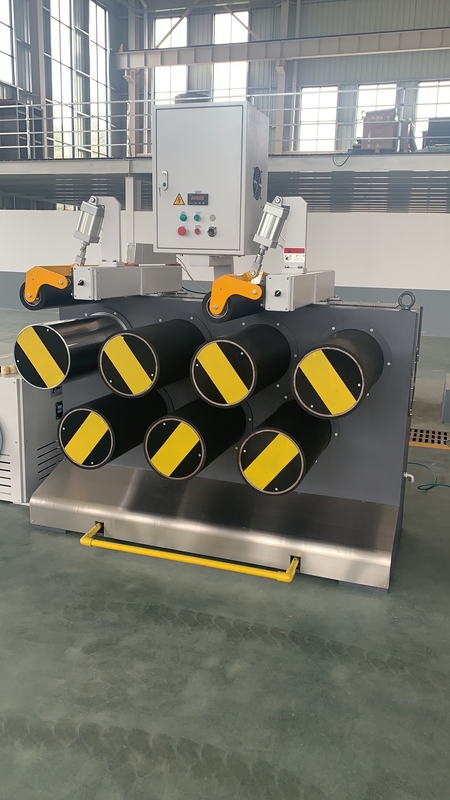

4. Seven roller stretching unit A

(1) Five variable diameter rollers and two steel rollers.

(2) Max drafting force: 1000 daN.

(3) Steel box with accurately grind gear.



5. Double layers hot blast stretching oven: 1 set

(1) Heating power: 23KW

(2) Oven length: 5000 mm



6. Seven roller stretching unit B

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel box with accurately grind gear.



7. Spindle winder

(1) Bobbin size according to clients





​Pictures:
240kw Monofilament Making Machine 0
