SIC Silicon Carbide Brush Making Machine For Abrasive Filament
Key Attributes
Product Summary
Brush Making Machine For Nylon SIC Silicon Carbide Diamond Abrasive Filament Product Description: 1. Extruder: 1 set (1) Main motor power: 45KW; Motor is from Siemens electric machine Co., Ltd (2) Screw diameter: 42mm; Rotation speed: 0～70rpm (3) Screw material: CE-150, barrel material: CB-150 (4) L...
Product Details
Abrasive Filament Brush Making Machine
,SIC Silicon Carbide Brush Making Machine
,SIC Silicon Carbide brush manufacturing machine
Brush Making Machine For Nylon SIC Silicon Carbide Diamond Abrasive Filament
Product Description:
1. Extruder: 1 set
(1) Main motor power: 45KW; Motor is from Siemens electric machine Co., Ltd
(2) Screw diameter: 42mm; Rotation speed: 0～70rpm
(3) Screw material: CE-150, barrel material: CB-150
(4) L/D=48, total 12 section barrel.
(5) Hard tooth reducer: Jiangsu
(6) Pressure sensor and pressure gauges for spinneret
(7) Screw heater: Cast aluminium heating rings with stainless steel insulation layer.
(8) Electrical heating spinneret device: 1 set
(9) Heater: Electric heating ring, heating power: 4kw
(10) Equip two hoppers for each material.
2. Quenching Tank:1 set
(1) Stainless Steel 304 tank
3. Seven roller Stretching unit A: 1 set
(1) Roller size: φ270×400×7, All rollers are heated roller.
(2) Equip one oil heating controller.
(3) Power of motor: 5.5KW
(4) Steel cabinet with accurately grind gear makes the roller run smoothly.
(5) Reducer is from Jiangsu Guomao Reducer Co., Ltd.
(6) Built-out oil lubrication system which makes the gears run steady.

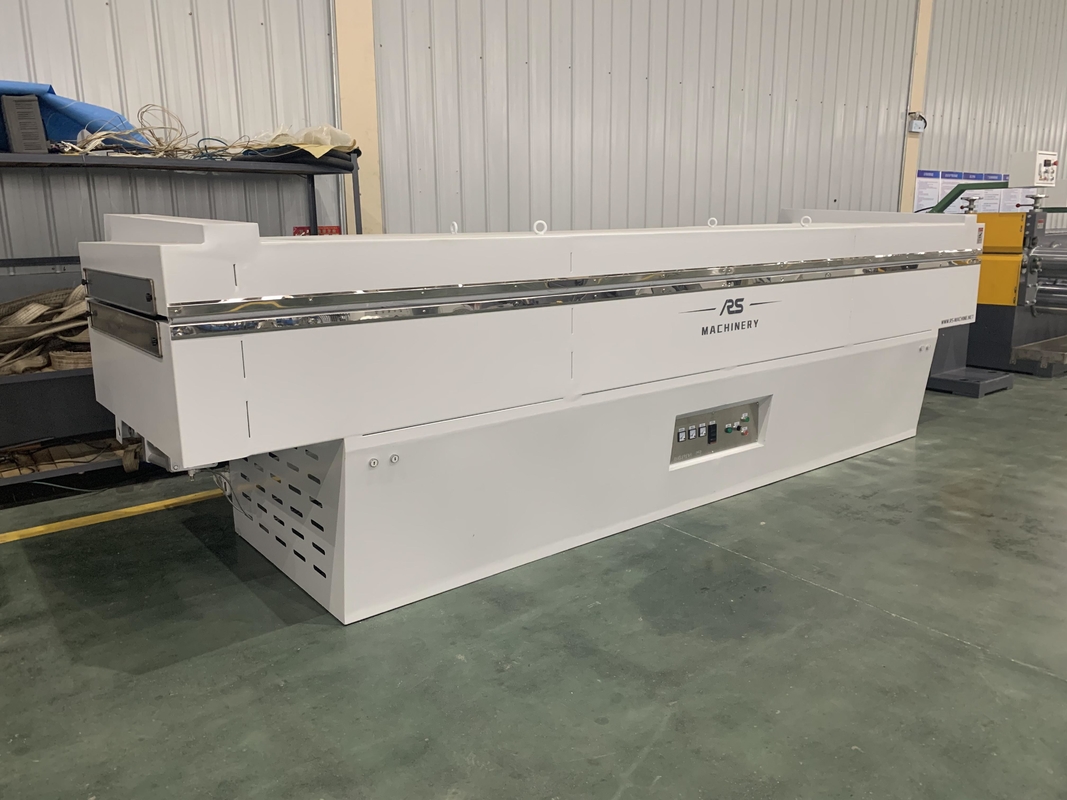

4. Hot Air Oven:1 set
(1) Fan power: 2.2KW×2 sets
(2) Heating power: 23KW
(3) Oven length: 4300 mm
(4) Special design of hot air channel which make the temperature evenly.
5. Seven rollers stretching unit B: 0-160m
(1) Roller size: φ270×400×7, All rollers are heated roller.
(2) Equip one oil heating controller. Roller temperature 0-90C°.
(3) Power of motor: 7.5KW
(4) Steel cabinet with accurately grind gear makes the roller run smoothly.
(5) Reducer is from Jiangsu Guomao Reducer Co., Ltd.
(6) Built-in oil lubrication system makes the gears run stable
6. Hot Air oven: 1 set
(1) Fan power: 2.2KW×2 sets.
(2) Heating power: 23KW
(3) Oven length: 4300 mm
7. Seven rollers stretching unit C: 1 set
(1) Roller size: φ270×400×7
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear.
(4) Reducer is from Zhejiang Tongli.
8. Hot Air oven: 1 sets
(1) Fan power: 2.2KW×2 sets,
(2) Heating power: 23KW
(3) Oven length: 5000 mm
9. Seven rollers stretching unit D: 1 set
(1) Roller size: φ270×400×7
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear.
(4) Reducer is from Zhejiang Tongli.
10. Hot Air oven: 2 sets
(1) Fan power: 2.2KW×2 sets,
(2) Heating power: 23KW
(3) Oven length: 5000 mm
11. Oil system: 1 set
12. Winding spindles
Specification:
| Twin screw | Φ42mm | ||
| Raw material | PA612 | Filament size | 150D |
| Capacity | 30Kg/H | Filament shape | profile |
| Screw L:D | 48:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 40 spindles |
| Max linear speed | 80m/min | Instillation power | 440Kw |
| Nozzle holes | 10 holes | Overall size | 52×2.6×2.8m |
Picture:
