20mm Thickness Monofilament Yarn Making Machine Yarn Extruder Spacer Fabric
Key Attributes
Product Summary
Monofilament Making Machine For Spacer Fabric 20mm Thickness For Home Sleep Mat Product Description: 1. Extruder: 1 set (1) Screw dia.: 70mm; (2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is for 100% PET chips. (3) Hard tooth reducer: Jiangyin Gearbox manufactuer. (4) Pressure automatic ...
Product Details
Spacer Fabric monofilament yarn making machine
,20mm monofilament yarn making machine
,20mm yarn extruder
Monofilament Making Machine For Spacer Fabric 20mm Thickness For Home Sleep Mat
Product Description:
1. Extruder: 1 set
(1) Screw dia.: 70mm;
(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is for 100% PET chips.
(3) Hard tooth reducer: Jiangyin Gearbox manufactuer.
(4) Pressure automatic feedback system to control screw speed.
(5) Melt filter: customized
(6) Pressure sensor and gauges: Zhaohui (Chinaa)
(7) Melt pump:1 set
(8) Power of melt pump: 3.7kw
(9) Heater: Electric .
(10) Spinneret device: 1 Set
(12) Spinneret componets 2 sets.
2. Quenching Tank:1 set
(1) The tank is made by Stainless Steel 304.
(2) Use big window.
(3) Heating power: 18kw
3. Seven roller Stretching unit A: 1 set
(1) Roller size: φ270×750×7, All steel roller.
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear.
(4) Driving motor and reducer is from Zhejiang Tongli.
4. Hot water Tank:1 set
(1) Size (L×W×H) : 4000×800×1100 mm
(2) Heating power: 35KW; Electrical heating.
(3) Material is stainless steel 304.
(4) Equip one moisture absorption device: 4KW
5. Seven rollers stretching unit B: 0-160m
(1) Roller size: φ270×750×7,All steel roller.
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Driving motor and reducer is from Zhejiang Tongli.
6. Single layers hot blast stretching oven: 1 set
(1) Fan power: 2.2KW×2 sets.
(2) Heating power: 23KW
(3) Oven length: 4300 mm
7. Seven rollers stretching unit C: 1 set
(1) Roller size: φ270×750×7, All steel roller.
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Driving motor and reducer:Zhejiang Tongli Reducer.
8. Single layers hot blast setting oven: 1 set
(1) Fan power: 2.2KW×2 sets,
(2) Heating power: 23KW
(3) Oven length: 5000 mm
9. Seven rollers stretching unit D: 1 set
(1) Roller size: φ270×750×7,All steel roller.
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Driving motor and reducer is from Zhejiang Tongli.
10. Lubricating system: 1 set
11. Waster yarn collector: 1 set

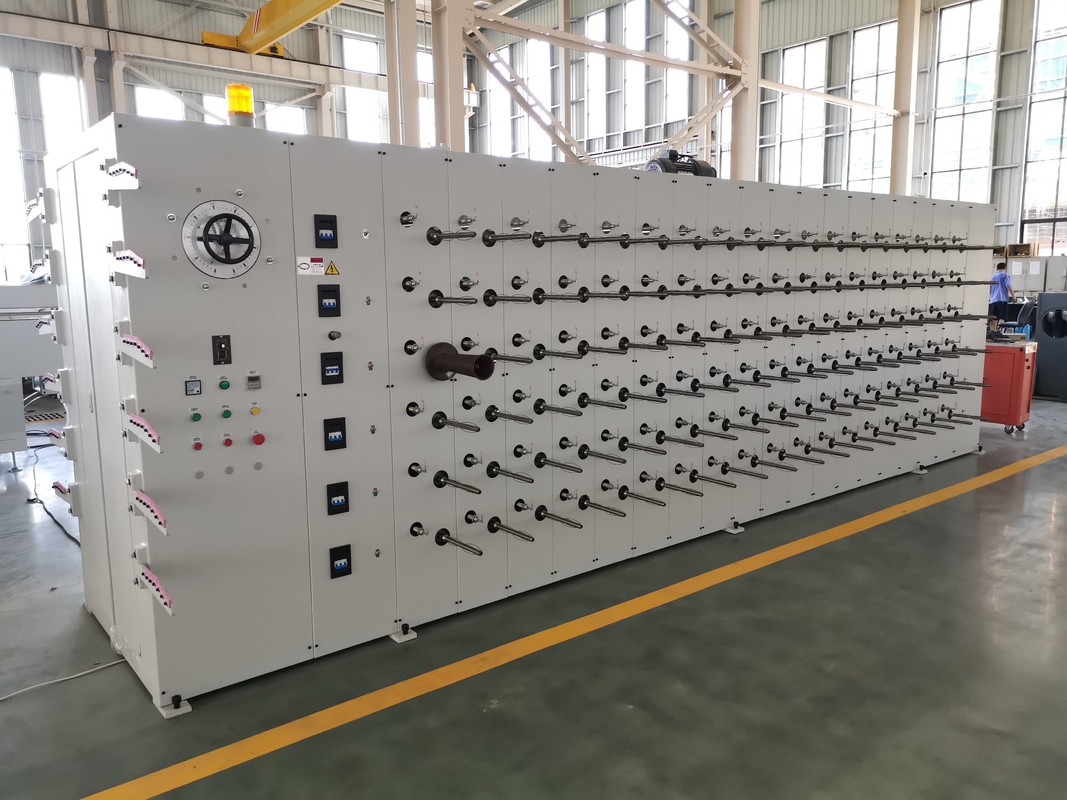

12. Winding collector: 300 spindles
(1) The frame transmission is frequency control, driving motor: 2.2kw
Specification:
| Screw diameter | Φ75mm | ||
| Raw material | PET | Filament size | 300D |
| Capacity | 36Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 300 spindles |
| Max linear speed | 170m/min | Instillation power | 305Kw |
| Nozzle holes | 288 holes | Overall size | 48×2.8×2.8m |
Picture:
