Product Details
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per year
Application: |
Rope |
Name: |
Danline |
Capacity: |
300kgh |
Strand: |
3 |
Type: |
Twisted |
Power: |
220kw |
Oven: |
1 Set |
Color: |
Customized |
Application: |
Rope |
Name: |
Danline |
Capacity: |
300kgh |
Strand: |
3 |
Type: |
Twisted |
Power: |
220kw |
Oven: |
1 Set |
Color: |
Customized |

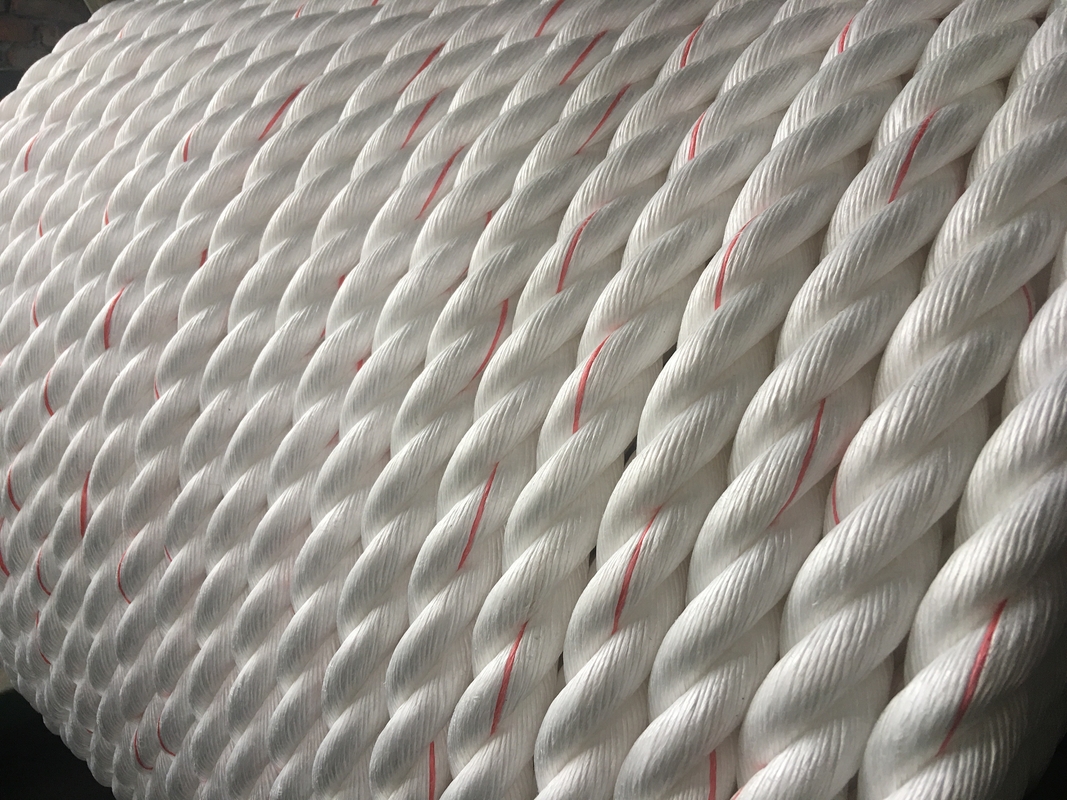

PP Danline Monofilament Making Machine For Danline 3 Strand Twisted Rope
Product Features:
| Product Name: |
PP Danline Rope Monofilament Extruding Machine |
| Yarn deiner: | 3000D |
| Capacity: | 3 tons |
| Screw diameter: | 90mm |
| Rotation speed of screw: | 0～72 rpm |
| Running capacity: | 220 KW |
Product Description:
1. Extruder: 1 set
(1) Screw diameter: 90mm, Rotation speed of screw: 0～80 rpm.
(2) L:D: 33:1, Material of screw: 38CrMoALA ,
(3) Filter: Manual/Auto filter changer.
(4) RKC pressure automatic feedback system which can adjust the screw speed automatically.
(5) Metering pump, rotation speed: 0-45 rotation.
(6) Electrical heating round spinneret: 1 set
(7) Spinneret plate: 2 pieces pinneret components: 2 sets
2. Quenching tank: 1 set
(1) Pushed and pulled in side way, the automatic lifting of tank.
(2) Special designed roller guider to separate the yarn in the tank easily.
3. Drying system:1 set
4. Seven roller stretching unit A: 1 set
(1) Five variable diameter rollers and two steel rollers.
(2) Max drafting force: 1000 daN.
(3) Steel box with accurately grind gear makes the rollers run smoothly.
(4) Built-out oil lubrication system which makes the gears runs steady.
(5) Woking height: 1100mm
5. Double layers hot blast stretching oven: 2 sets
(1) Heating power: 23KW×2
(3) Oven length: 5000 mm
(4) Special design of hot air channel which make the temperature evenly.
6. Seven roller stretching unit B
(1) Six variable diameter rollers and one embossing roller.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady.
(5) Woking height: 1100mm
7. Spindle winder
8. Total installation power: 190KW
Pictures:
