0.3mm Monofilament Extrusion Process

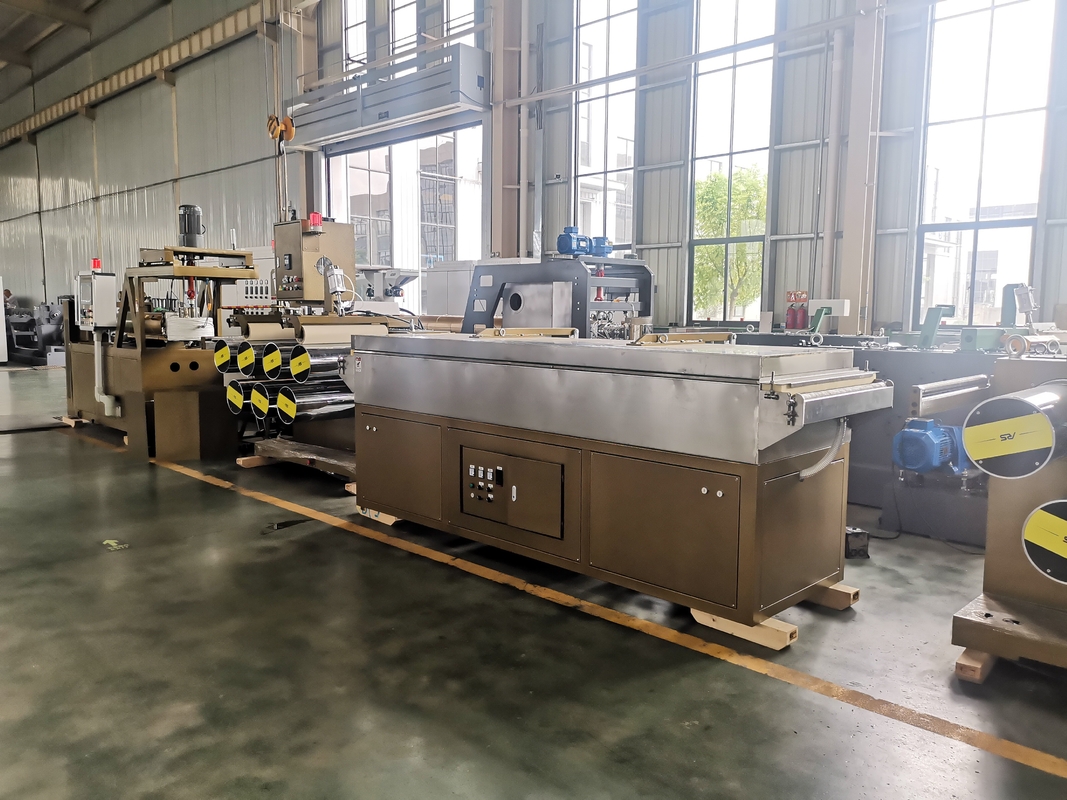

Monofilament Extrusion Machine For Polyester Paper-Making Spiral Net 0.3mm

Product Description:

1. Extruder: 1 set
(1) Screw diameter: 80mm, Rotation speed of screw: 0～72 rpm.
(2) L:D: 30:1, Material of screw: 38CrMoALA ,
(3) Pressure feedback system.
(4) Material of barrel heater: Far infarad
(5) Metering pump 30cc*2 sets, rotation speed: 0-45 rotation.
(6) Oil heating round spinneret: 2 sets.


3. Quenching tank: 1 set
(1) The tank is made by SS 304.


4. First seven roller stretching unit
(1) Seven variable diameter rollers which made by stainless steel 304.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Built-out oil lubrication system which makes the gears runs steady.
(4) Equip 1 pressing roller.

5. Overflow type hot water tank:1 set
(1) Tank size: 4000mm
(2) Heating power: 50KW,
(3) The tank is made by SS 304
(4) Water removal device: 2 sets

(5) Water circulating water pump 2 sets


6. Second seven roller stretching unit
(1) Seven variable diameter rollers which made by steel pipe.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady.

7. Double layers hot blast stretching oven: 1 set
(1) Oven length: 4300 mm

8. Third Seven roller stretching unit
(1) Seven variable diameter rollers which made by steel pipes.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady.


9. Double layers hot blast stretching oven: 2 sets
(1) Oven length: 4300 mm


10. Forth Seven roller stretching unit
(1) Seven variable diameter rollers which made by steel pipes.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(4) Built-in oil lubrication system which makes the gears runs steady.

11. Lubricating system: 1 set
(1) Frequency control of speed


12. Spindle winder: 216 spindles
(1) Spool and bobbin are as client's reqeust
(2) The frame transmission is frequency control, driving motor: 2.2kw
(3) Winding motor: 5KG


13. Waster yarn collectors: 2 sets


Parameter:
