PP Monofilament Making Machine

Basic Information
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per year
Detail Information
Material: PP Pattern: Crimped
Diameter: 0.1-0.5mm Capacity: 150kgh
Name: Bristle Oven: 1 Set
Length: 35m Width: 2.5m
High Light:

Monofilament Making Machine 150kgh

,

Monofilament Making Machine PP


Product Description

PP Monofilament Extrusion Line for crimped Bristle 0.2-0.5mm 150kgh



Product Description:

1. Extruder

(1) Screw diameter: 90mm; Rotation speed: 0~80rpm.

(2) L:D: 33:1; material of screw: 38CrMoALA ;

The screw structure is special designed for PP virgin or recycle.

(3) Pressure automatic feedback system can adjust the screw speed automatically to make sure the uniform of yarn.

(6) Manual filter changer or auto hydraulic filter changer.

(7) Screw heater: Cast aluminium heating rings with stainless steel insulation layer.

(9) Spinneret device: 1 Set

(10) Heater: Electric heating ring.

(11) Two hopper dosing unit: 1 set

2. Cooling water tank: 1 set

(1) The tank is made by stainless steel 304.

(2) The height of tank is horizontal pushing structure is conveniently to disassembly the spinneret.

(3) Special design for separating the yarn easily.

3. The first seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

No rubber roller.

(4) Reducer is from Jiangsu Guomao Reducer Co., Ltd.

(5) Built-out oil lubrication system which makes the gears run steady.

4. Hot water tank

(1) Tank length: 4000mm

(2) Heating power: 35kw, electric heating.

The temperature controlled by solid relay.

(3) The tank is made by SS 304 with the insulating layer

(4) Equip water suction unit.

5. The second seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

No rubber roller.

(3) Reducer is from Jiangsu Guomao Reducer Co., Ltd.

6. Single layers hot blast oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 23KW

(3) Special design of hot air channel which make the temperature evenly.

7. The third seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly. No rubber roller.

(3) Reducer is from Jiangsu Guomao Reducer Co., Ltd.

8. Lubricating system: 1 set

(1) Frequency control of speed



Parameter:



Screw diameter Φ90mm
Raw material PP Filament size 0.2-0.5mm
Capacity 150Kg/H Filament shape round/profile
Screw L:D 30:1 Stretching unit 3 sets
Screw material 38CrMoALA Winder 2 spindles
Max linear speed 250m/min Instillation power 200Kw
Nozzle holes 400 holes Overall size 35×2.5×2.8m
Pictures:

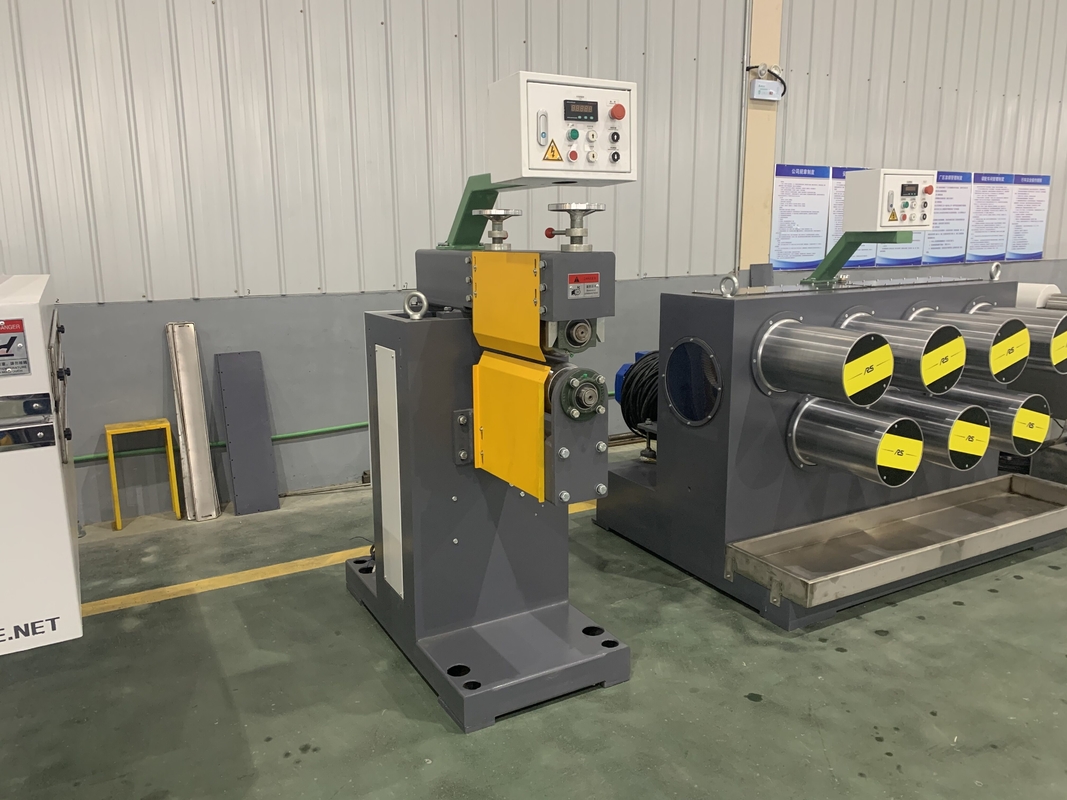

PP Monofilament Making Machine 0
