125kgh Curly Yarn PP Monofilament Extrusion Machine Industrial Filament Extruder

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per year

Get Best Price
High Light:

125kgh Monofilament Extrusion Machine

,

Curly Yarn Monofilament Extrusion Machine

,

Curly Yarn industrial filament extruder

Material:
PP Chips
PLY:
8
Screw:
75mm
Capacity:
125 Kg Per Hour
Texturing:
Air Type
Winder:
24 Spindles
Frequce:
Customized
Voltage:
Customized
Material:
PP Chips
PLY:
8
Screw:
75mm
Capacity:
125 Kg Per Hour
Texturing:
Air Type
Winder:
24 Spindles
Frequce:
Customized
Voltage:
Customized
125kgh Curly Yarn PP Monofilament Extrusion Machine Industrial Filament Extruder

PP Monofilament Extrusion Machine For Curly Yarn used in artificial grass 125kgh



Product Description:



1. 75×33 Extruder:2 sets

(1) Main motor power: 37KW;

(2) Screw diameter: 75mm;

(3) L:D: 33:1; Material of screw: 38CrMoALA

(4) Automatic screen changer: 1 set



2. Quenching tank: 1 set

(1) The tank is made by stainless steel 304.



3. Seven roller stretching unit A, 0-120m/min: 1 Set

(1) Steel roller size: φ270×700×7;

The 7 rollers are made by SS 304 with hard chrome plating.



4. Hot water tank: 1 set

(1) Tank length:3800mm

(2) The water is heated by copper heating tube, the heating power: 48kw,





5. Water suction: 1 set

(1) Fan power:5.5kw×1 set



6. Seven roller stretching unit B: 1 Set

(1) Steel roller size: φ350×700×7.

The 7 rollers are made by SS 304 with hard chrome plating.



7. Waster yarn collector system: 1 set

(1) Motor power: 7.5KW



8. Air texturing machines: 24 ends

Specification for each end:

(1) Gas heating barrel:1 sets

(2) Main conveying pipe:1 set,



9. Conveyer device: 6 sets

(1) 1 set includes 6 working position.



10. Automatic tension feedback winder: 24 spindles

(1) Motor of tension roller:0.5kw

(2) Winding motor:0.25kw



12. Total weight: 25T



Parameter:

Screw diameter Φ75mm
Raw material PP chips Filament size customized
Capacity 125Kg/H Filament shape Curly
Screw L:D 33:1 Stretching unit 2 sets
Screw material 38CrMoALA Winder 24 spindles
Max linear speed 300m/min Instillation power 590Kw
Nozzle holes customized Overall size 25×25×2.8m


Pictures:

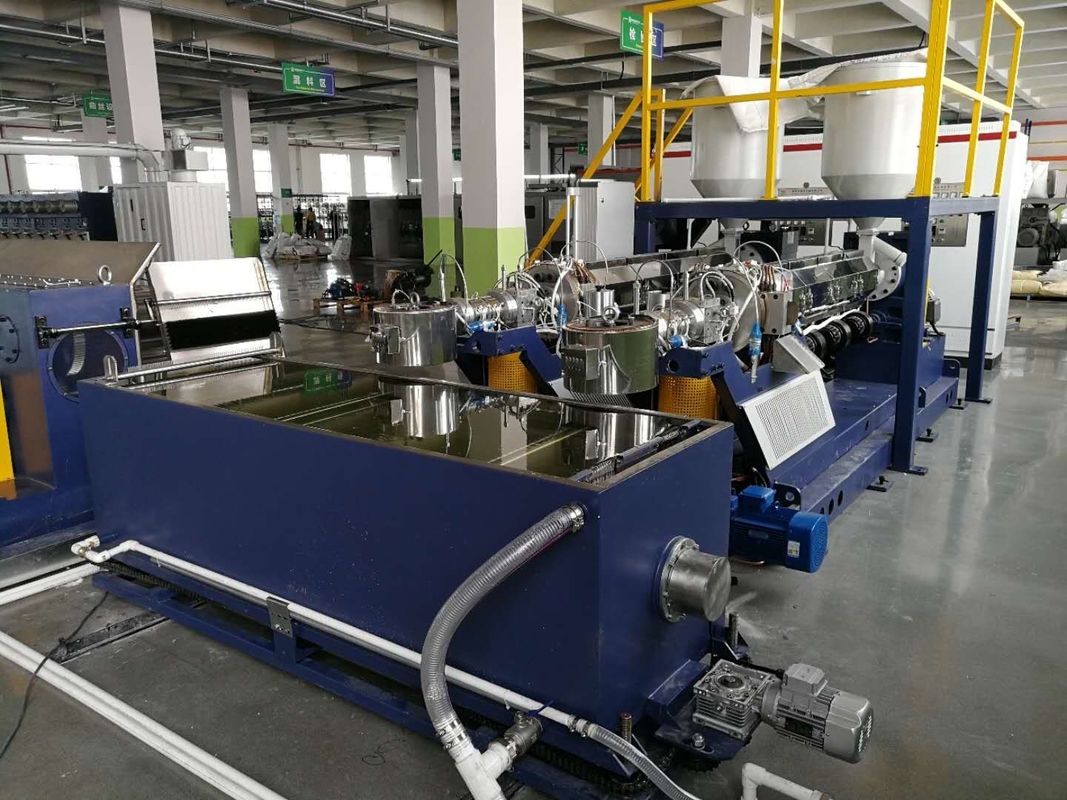

125kgh Curly Yarn PP Monofilament Extrusion Machine Industrial Filament Extruder 0
