Product Details
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 50 s per year
Application: |
Zipper |
Capacity: |
160kg Per Hour |
Monofilament Diameter: |
0.48-1.01mm |
Speed: |
180m/min |
Material: |
PET Bottle Flakes |
Control: |
PLC |
Frequency: |
Customzied |
Length: |
40 Meters |
Application: |
Zipper |
Capacity: |
160kg Per Hour |
Monofilament Diameter: |
0.48-1.01mm |
Speed: |
180m/min |
Material: |
PET Bottle Flakes |
Control: |
PLC |
Frequency: |
Customzied |
Length: |
40 Meters |
Monofilament Extrusion Machine For PET Zipper By Bottle Flakes 160kgh
Product Description:
1. Extruder: 1 set
(1) Screw dia.: 90mm; Rotation speed: 0～72rpm,
(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is special design for PET recycle
(4) Pressure feedback system which can adjust the screw speed automatically
(5) 50cc Metering pump:1 set
(6) Nozzle: 2 pieces with the disassembly support
(7) Melt filter: 2.0m2 double position filter changer
(8) Screw heater: Cast aluminium heating rings
2. Quenching Tank:1 set
(1) The tank is made by Stainless Steel 316.
(2) Heating power: 18kw.
3. Seven roller Stretching unit A,
(1) Roller size: φ270×750×7,
(2) Power of motor: 5.5KW
(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.
(4) Working height: 1100mm
4. Hot water Tank:1 set
(1) Size (L×W×H) : 4000×800×1100 mm
(2) Heating power: 35KW; Electrical heating, the heating pipe are in the tank.
(3) Material is stainless steel 304 with heat preservation.
(4) Equip one moisture absorption device: 4KW
6. Seven rollers stretching unit B: 0-160m
(1) Roller size: φ270×750×7,
(2) Power of motor: 15KW
(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.
(4) Working height: 1100mm
7. Single layers hot blast stretching oven: 1 set
(1) Fan power: 2.2KW×2 sets.
(2) Heating power: 23KW
(3) Oven length: 4300 mm
(4) Special design of hot air channel which make the temperature evenly.
8. Seven rollers stretching unit C: 0-180m
(1) Roller size: φ270×750×7
(2) Power of motor: 15KW
(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.
(4) Working height: 1100mm
9. Single layers hot blast setting oven: 1 set
(1) Fan power: 2.2KW×2 sets,
(2) Heating power: 23KW
(3) Oven length: 5000 mm
(4) Special design of hot air channel which make the temperature evenly.
10. Seven rollers stretching unit D
(1) Roller size: φ270×750×7
(2) Power of motor: 5.5KW
(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.
(4) Working height: 1100mm
11. Lubricating system: 1 set
(1) Motor and reducer are from Taiwan CPG
12. Waster yarn collectors: 1 set
(1) Torque motor power: 80KG.cm
13. Winding collector:66 spindles
total capacity: 270KW,
total dimension: 41×2.5×3.5m,
Specification:
| Screw diameter | Φ90 | ||
| Raw material | PET bottle flakes | Filament size | 0.48-1.01mm |
| Capacity | 160Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 66 spindles |
| Max linear speed | 180m/min | Instillation power | 270Kw |
| Nozzle holes | 20-60 holes | Overall size | 41×2.5×3.5m |

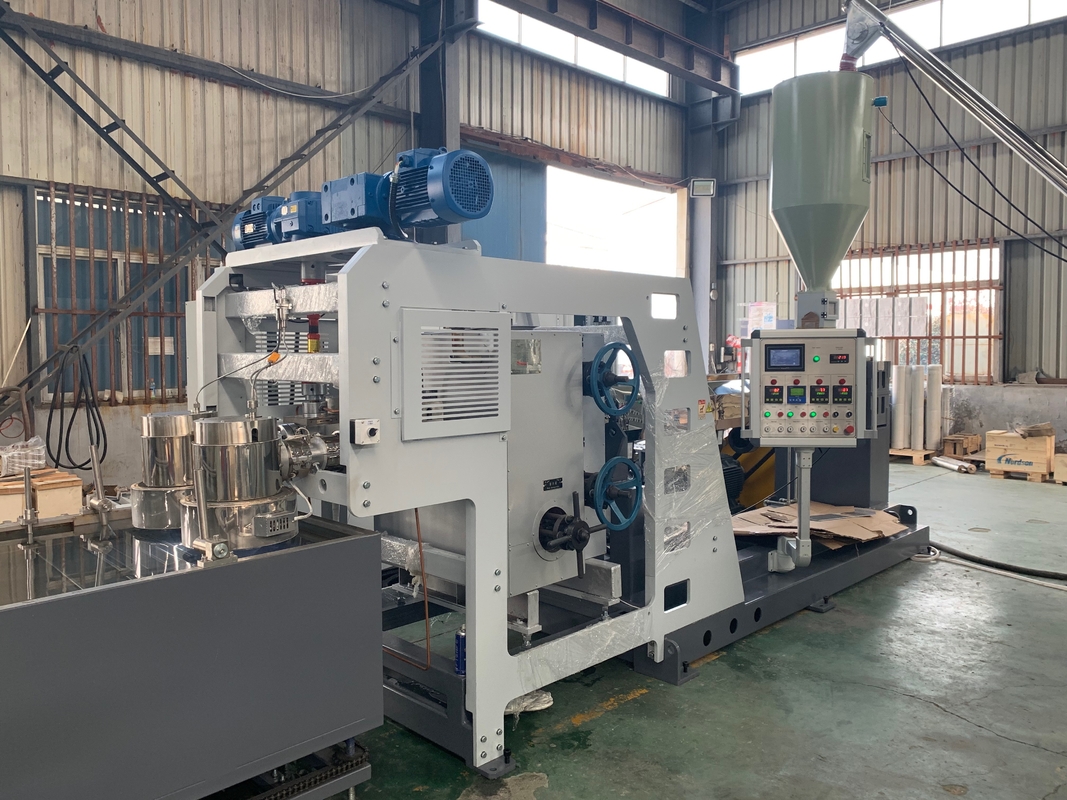

Picture:
