2-4mm 70kg/H Monofilament Yarn Machine Nylon Fishing Line Making
Key Attributes
Product Summary
Monofilament Extrusion Machine for nylon fishing line 1-4mm 70kg/h Product Description: 1. Extruder: 1 set (1) Screw diameter: 90mm, Rotation speed of screw: 0～80 rpm. Screw: Zhoushan. (2) L:D: 30:1, Material of screw: 38CrMoALA , The screw is suitable for PA6 chips. (3) Pressure automatic feedback ...
Product Details
4mm monofilament yarn machine
,70kg/H monofilament yarn machine
,4mm monofilament yarn making machine
Monofilament Extrusion Machine for nylon fishing line 1-4mm 70kg/h
Product Description:
1. Extruder: 1 set
(1) Screw diameter: 90mm, Rotation speed of screw: 0～80 rpm. Screw: Zhoushan.
(2) L:D: 30:1, Material of screw: 38CrMoALA , The screw is suitable for PA6 chips.
(3) Pressure automatic feedback system which can adjust the screw speed automatically.
(4) Electrical heating spinneret: 1 set.
2. Quenching tank: 1 set
(1) The tank is made by SS 304.

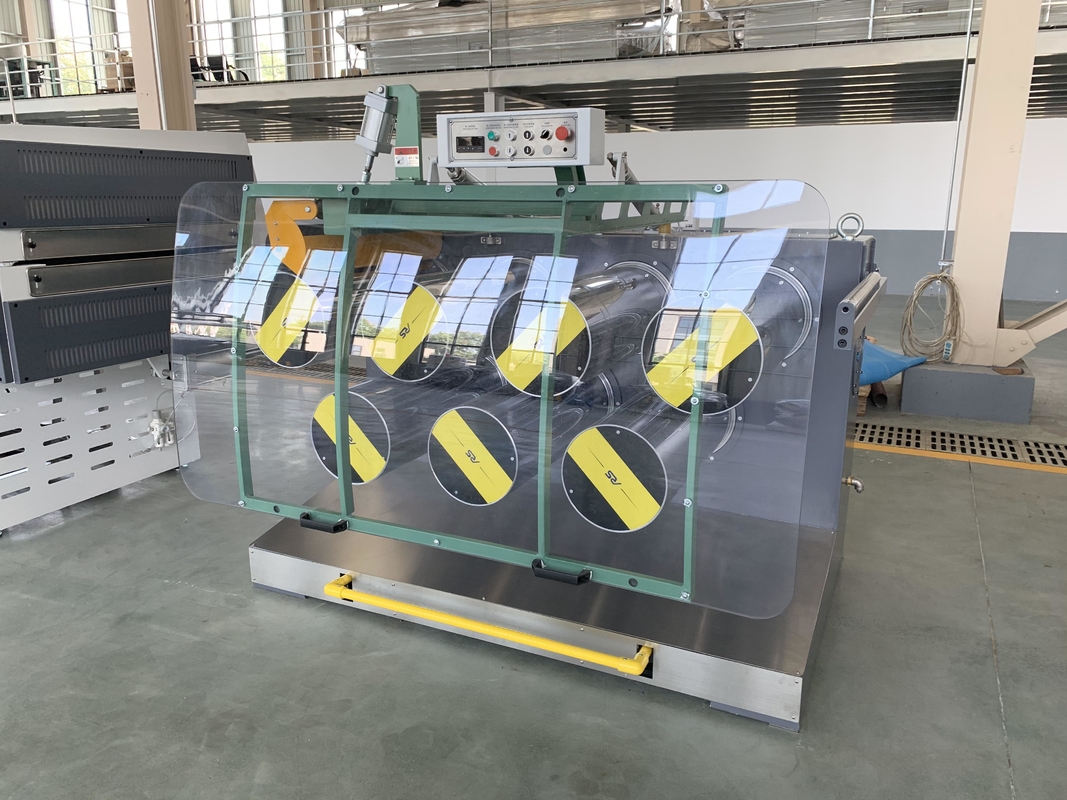

3. Seven roller stretching unit A
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Built-out oil lubrication system which makes the gears runs steady.
4. Overflow water tank: 1 set
(1) Tank size: 4000mm
(2) Electric heating pipe is in the tank.
(3) The tank is made by SS 304 with insulating layer.
(4) Water circulating pump 1.1kw
5. Seven roller stretching unit B
(1) Seven variable diameter rollers made by steel pipe.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
6. Double layers hot blast stretching oven: 1 set
(1) Oven length: 4300 mm
(2) Heating power 23kw×2
7. Seven roller stretching unit C
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady.
8. Double layers hot blast stretching oven: 2 sets
(1) Oven length: 4000 mm
(2) Heating power 23kw×2
9. Seven roller stretching unit D.
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
10. Lubricating system: 1 set
(1) Frequency control of speed
11. Spindle winder: 24 spindles
(1) Spool as client's request.
(2) The frame transmission is frequency control, driving motor: 2.2kw
12. Waster yarn collectors: 1 set
(1) Torque motor power: 80KG.cm
13. Total installation power: 320KW
Specification:
| Screw diameter | Φ90mm | ||
| Raw material | Nylon | Filament size | 2-4mm |
| Capacity | 70Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 10 spindles |
| Max linear speed | 160m/min | Instillation power | 320Kw |
| Nozzle holes | 6 holes | Overall size | 41×2.5×2.8m |
Picture:
