Highlight:
                                                                                                                                                                                                                                                                                                                1000 Denier Monofilament Extrusion Machine, Flat Fabric  Monofilament Extrusion Machine, Flat Fabric  monofilament making machine


Product Name:	PP Flat Yarn	Raw Material:	PP Virgin
Capacity:	180kg/h	Usage:	In Weaving
Deiner:	900-4000 Deiner	Brand:	RS
Control:	PLC	Power:	320kw

Product Name:	PP Flat Yarn
Raw Material:	PP Virgin
Capacity:	180kg/h
Usage:	In Weaving
Deiner:	900-4000 Deiner
Brand:	RS
Control:	PLC
Power:	320kw

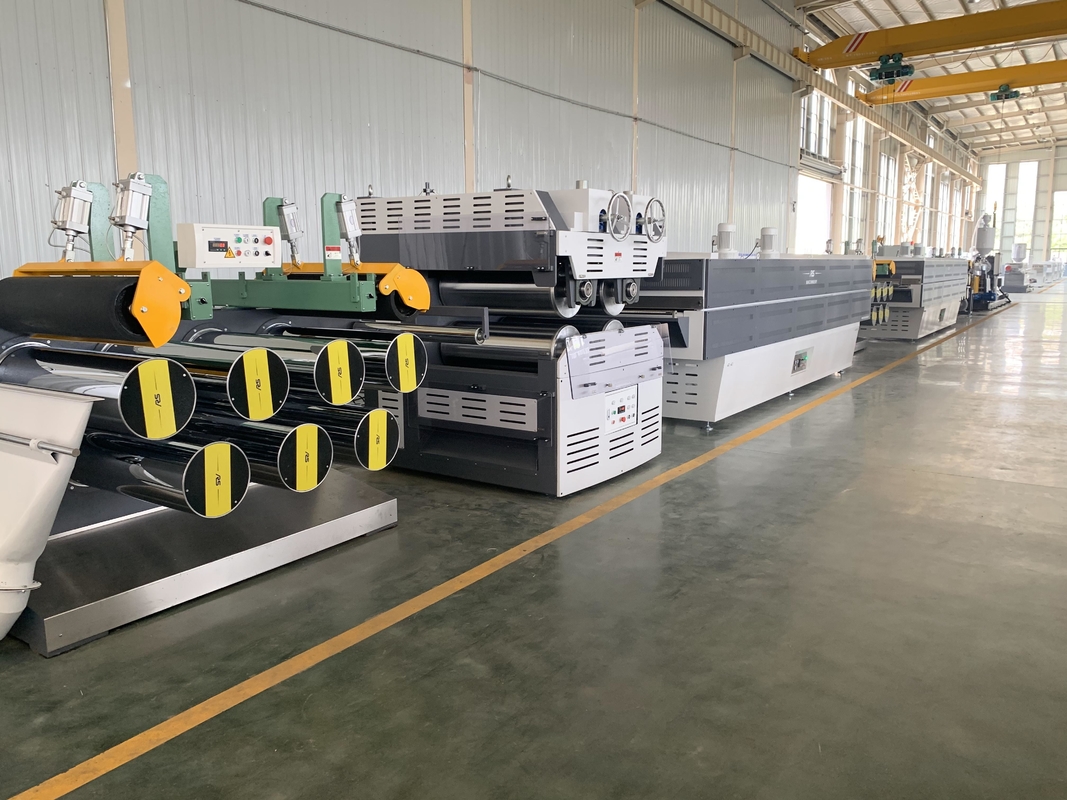

900-4000 Denier Monofilament Extrusion Machine For PP Flat Fabric

Monofilament Extrusion Machine For PP flat Fabric 900-4000 Denier

Machine components:

1. Extruder: 1 set

(1) Screw diameter: 90mm

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

(3) Filter: Manual/Auto filter changer.

(4) RKC pressure automatic feedback system which can adjust the screw speed automatically.

(5) Material of barrel heater: Cast aluminums with stainless steel insulation layer.

(6) Metering pump, rotation speed: 0-45 rotation.

(7) Electrical heating round spinneret: 1 set

(8) Ceramic heating rings for spinneret with SS insulating layer. Heating power: 4kw

2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the automatic lifting of tank.

3. Drying system:1 set

4. Seven roller stretching unit A

(1) Five variable diameter rollers and two steel rollers.

(2) Max drafting force: 1000 daN.

(3) Steel box with accurately grind gear makes the rollers run smoothly.

5. Double layers hot blast stretching oven: 2 sets

(1) Heating power: 23KW×2

(3) Oven length: 5000 mm

6. Seven roller stretching unit B

(1) Six variable diameter rollers and one embossing roller.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

7. Spindle winder or ring twisting winder

Specification list:

Screw diameter	Φ90mm
Raw material	PP virgin	Filament size	900-4000D
Capacity	200Kg/H	Filament shape	flat
Screw L:D	33:1	Stretching unit	2-3 sets
Screw material	SACM645	Winder	Spool
Max linear speed	120m/min	Instillation power	300Kw
Nozzle holes	as customer's request	Overall size	38×2.8m×3m
