8.5gpd PP Monofilament Extrusion Line

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS120

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50 sets per year

Get Best Price
Highlight:

8.5gpd PP monofilament extrusion line

,

PP monofilament extrusion line 300kg/H

Application:
Mooring Rope
Product Name:
Danline
Capacity:
300kgh
Strength:
8.5 Gpd
Screw Size:
120mm
Power:
400kw
Oven:
2 Sets
Length:
40 Meters
Application:
Mooring Rope
Product Name:
Danline
Capacity:
300kgh
Strength:
8.5 Gpd
Screw Size:
120mm
Power:
400kw
Oven:
2 Sets
Length:
40 Meters
8.5gpd PP Monofilament Extrusion Line

PP Danline Monofilament Extrusion Machine For Mooring Rope 8.5gpd 300kg/H



Product Features:



Product Name:

PP Mooring rope

Yarn Deiner: 1000-4000D
Capacity: 7 tons
Screw diameter: 120mm
Rotation speed of screw: 0~80 rpm
Running capacity: 400 KW



Product Description:



1. Extruder: 1 set

(1) Screw diameter: 120mm, Rotation speed of screw: 0~72 rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

(3) Filter: Auto screen changer.

(4) Pressure feedback system which can adjust the screw speed automatically.

(5) Material of barrel heater: Far infarad

(6) Metering pump, rotation speed: 0-45 rotation.

(7) Electrical heating round spinneret: 1 set

(8) Spinneret plate: 2 pieces



2. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the automatic lifting of tank.



3. Drying system:1 set

4. First Seven roller stretching unit

(1) Five variable diameter rollers and two steel rollers.

(2) Max drafting force: 1000 daN.

(3) Steel box with accurately grind gear makes the rollers run smoothly.

(4) Built-out oil lubrication system which makes the gears runs steady.



5. Double layers hot blast stretching oven: 2 sets

(1) Heating power: 22.5KW×2

(3) Oven length: 5000 mm



6. Second Seven roller stretching unit

(1) Six variable diameter rollers and one embossing roller.

(2) Steel box with accurately grind gear makes the rollers run smoothly.



7. Spool winder





Pictures:

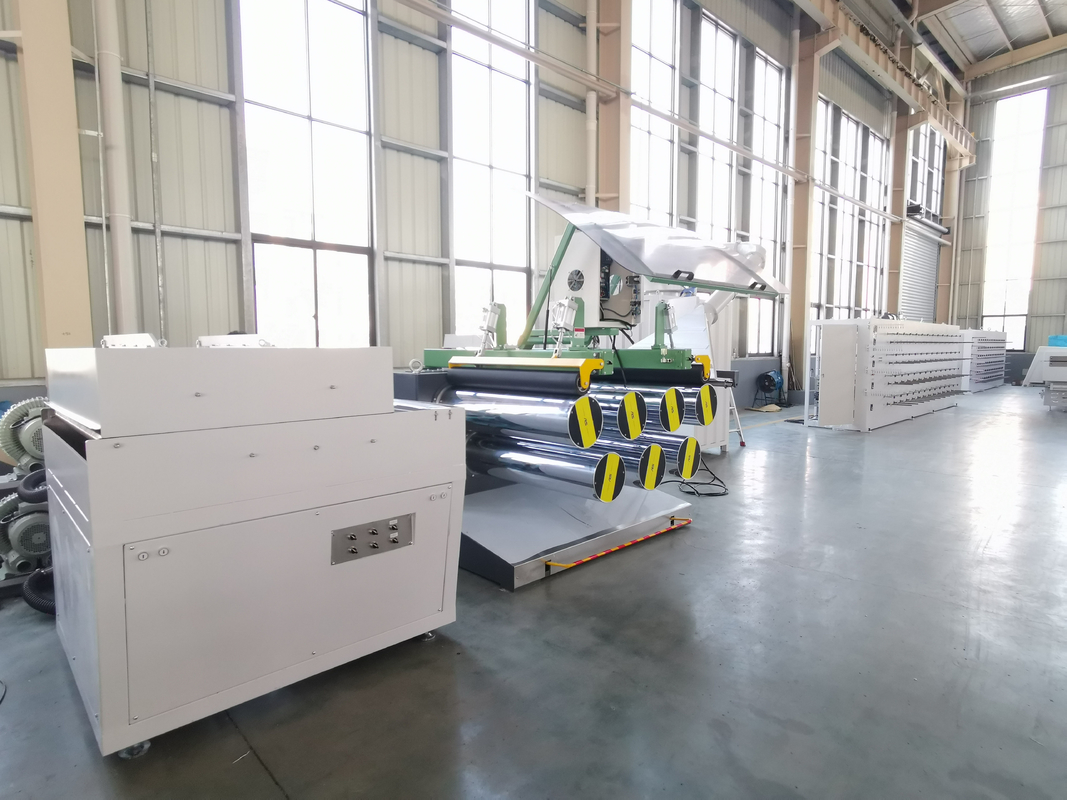

8.5gpd PP Monofilament Extrusion Line 0
