10mm Monofilament Extrusion Process Synthetic Grass Turf Making

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C,T/T

Get Best Price
High Light:

Synthetic Grass Monofilament Extrusion Process

,

10mm Monofilament Extrusion Process

,

10mm monofilament making machine

Raw Material:
LLDEP Virgin
Ply:
8
Screw:
70mm
Application:
Turf Landscaping
Height:
10mm
Speed:
170m/min
Nozzle:
2 Pcs
Spool:
ABS
Raw Material:
LLDEP Virgin
Ply:
8
Screw:
70mm
Application:
Turf Landscaping
Height:
10mm
Speed:
170m/min
Nozzle:
2 Pcs
Spool:
ABS
10mm Monofilament Extrusion Process Synthetic Grass Turf Making

Monofilament Extrusion Process For Synthetic Grass Turf Landscaping Artificial Grass 10mm



Product Description:



1. Extruder: 2sets

(1) Screw diameter: 70mm.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

(3) Auto belt screen changer, the screen is 100mm.

(4) Metering pump: 2 sets

(5) Static mixer: 2 sets.

(6) Spinneret: 2 sets.



2. Cooling water tank

(1) The tank is made by SS 304 with one light and safety shield.

(2) There are double ceramic roller guiders which are adjustable.



3. Five roller stretching unit A, 0-35m/min

(1) Motor power: 7.5kw

(2) The steel structure box.



4. Hot water tank

(1) Overall size: 4000×1300×1100 mm

(2) Heating method: electric heating

(3) Inside of the tank is made by SS 304 with insulating layer.



5. Oiling heating five roller stretching unit B, 0-160m/min

(1) 4 heating roller and working width 1300mm

(2) Standard heater has self-protective and alarm function.

(3) Driving motor and reducer: 15kw



6. Double layers hot blast stretching oven: 1 set

(1) Working area: 5000mm L×1350mm W.

Heating power: 35KW×2, the circulating fan: 4Kw×4.

(2) Frequency control speed of blast capacity. Temperature control range: 0-200 degree.



7. Three roller setting unit C, 0-160m/min

(1) Two cooling roller:φ318×1300×3,standard rotary joint.

(2) Driving motor and reducer: 7.5kw



8. Spindle winder: 64 spindles

(1) Constant tension magnetic disk deviation transmission.

(2) Winding motor: 250w.



9. Waster yarn collector



Specification:



Screw diameter Φ70mm
Raw material LLDPE Chips PLY 8
Capacity 100Kg/H Filament shape curved
Screw L:D 33:1 Stretching unit 3 sets
Screw material 38CrMoALA Winder 60 spindles
Max linear speed 160m/min Instillation power 400Kw
Nozzle holes 280 holes Overall size 48×2.8×2.8m








Pictures:

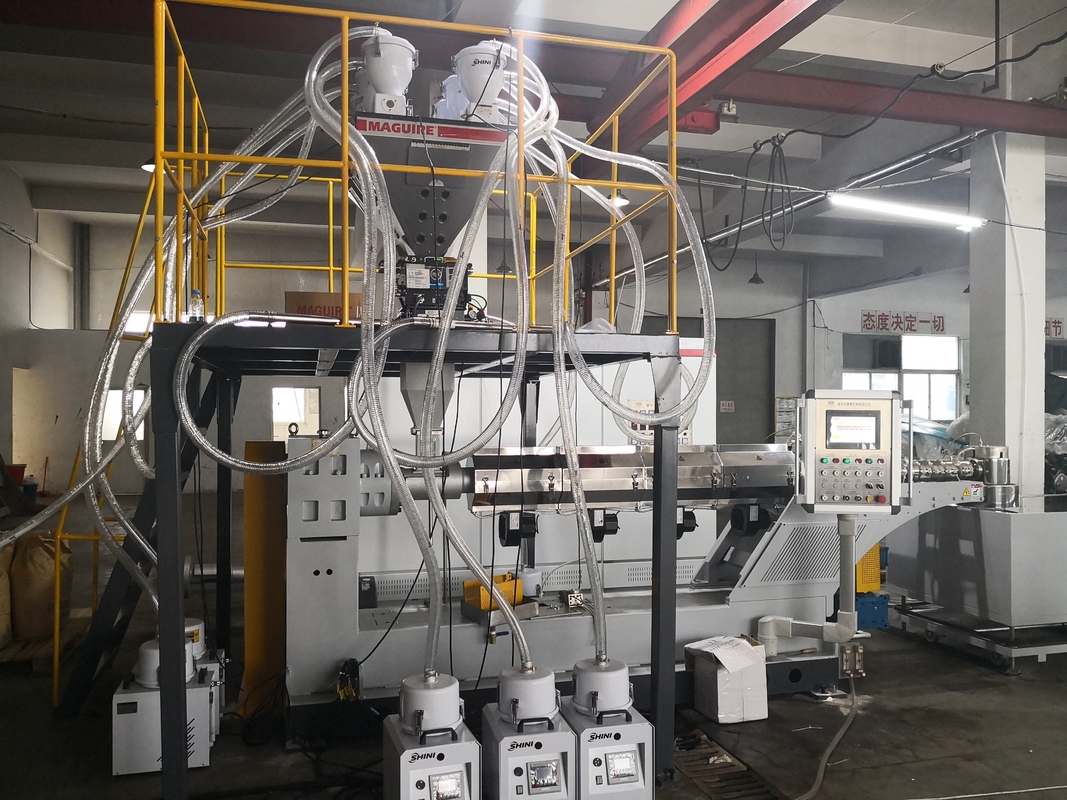

10mm Monofilament Extrusion Process Synthetic Grass Turf Making 0
