0.48mm 150kgh Polyester Monofilament Yarn Machine White Zipper Coil Making

1. Extruder: 1 set

(1) Screw dia.: 105mm;

(2) L:D: 30:1; Material of screw: 38CrMoALA;

(3) RKC Pressure automatic feedback system which can adjust the screw speed automatically

(4) Melt filter: 3.5m2 double position filter changer

(5) Pressure sensor and gauges: Shanghai Zhaohui

(6) Equip magnet base with window.

(7) 100cc Metering pump:1 set

(8) Driving power of metering pump: 3.7kw,0-45 rpm

(9) Spinneret device: 1 Set

2. Cooling Water Tank:1 set

(1) The tank is made by Stainless Steel 304.

(2) Double spotlight.

3. Seven roller Stretching unit A, 0-40m

(1) Roller size: φ270×750×7,

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

4. Hot water Tank:1 set

(1) Size (L×W×H) : 4000×800×1100 mm

(2) Heating power: 35KW; Electrical heating.

5. Seven rollers stretching unit B: 0-160m

(1) Roller size: φ270×750×7,

(2) Power of motor: 15KW

(3) Equip one pressing rollers

(4) The center height is 1100mm

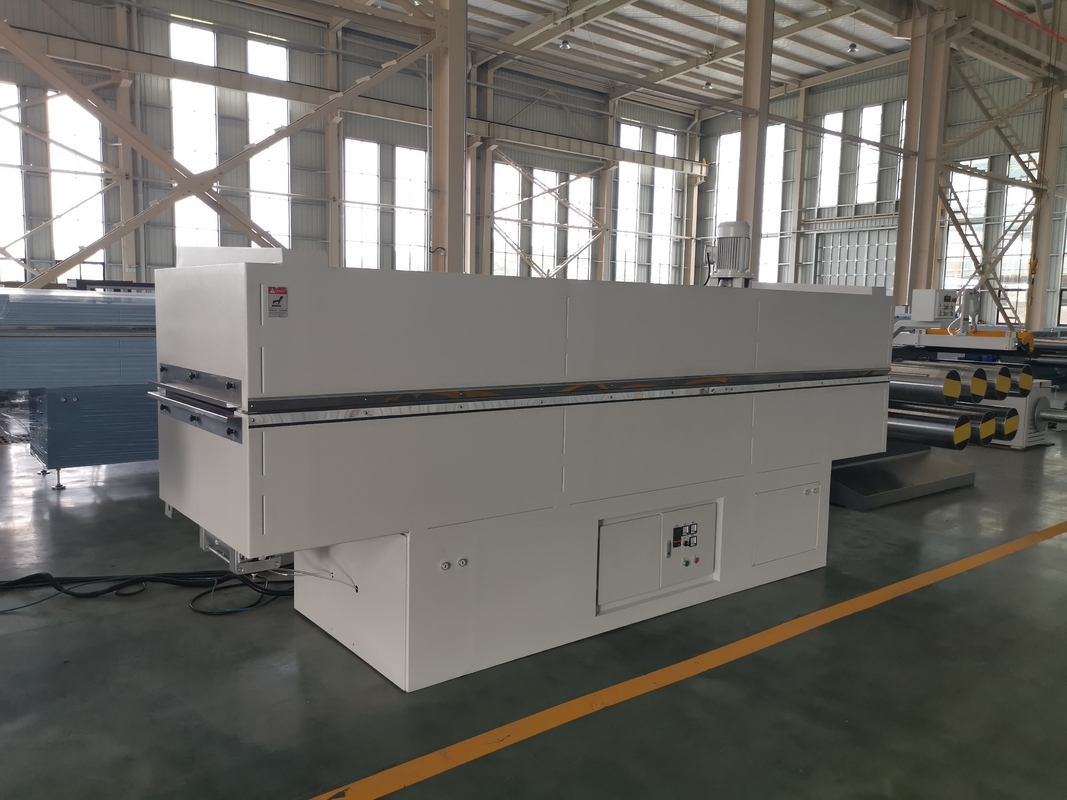

6. Single layers hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 23KW

7. Seven rollers stretching unit C: 0-180m

(1) Roller size: φ270×750×7

(2) Power of motor: 15KW

(3) Driving motor and reducer:Jiangsu Guomao Reducer

(4) The center height is 1100mm

8. Single layers hot blast setting oven: 1 set

(1) Fan power: 2.2KW×2 sets,

(2) Heating power: 23KW

9. Seven rollers stretching unit D

(1) Roller size: φ270×750×7

(2) Power of motor: 7.5KW

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) The center height is 1100mm

10. Lubricating system: 1 set

11. Waster yarn collectors: 1 set

12. Winding collector:80 spindles

(1) The frame transmission is frequency control, driving motor: 2.2kw

(2) Winding motor: 15KG

(3) Each spindle has on/off switch.

Specification:

Picture:
