12 spindles Nylon Brush Cutter Trimmer Line 1.5mm diamater

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS80

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T,

Supply Ability: 50 sets per year

Get Best Price
High Light:

12 spindles brush cutter trimmer line

,

1.5mm brush cutter trimmer line

,

1.5mm brush cutter nylon trimmer

Raw Material:
Nylon
Application:
Cutter Trimmer Line
Screw Diamter:
80mm
Winder:
12 Spindles
Diameter:
1.5 Mm
Package:
With Spool
Pattern:
Customized
Color:
Customized
Raw Material:
Nylon
Application:
Cutter Trimmer Line
Screw Diamter:
80mm
Winder:
12 Spindles
Diameter:
1.5 Mm
Package:
With Spool
Pattern:
Customized
Color:
Customized
12 spindles Nylon Brush Cutter Trimmer Line 1.5mm diamater

Nylon Monofilament Extrusion Process for Gardening Tool Brush Cutter Trimmer Line 1.5mm



Product Description:



1. Extruder

(1) Screw diameter: 80mm;

(2) L:D: 30:1; material of screw: 38CrMoALA ;

(3) Pressure automatic feedback system can adjust the screw speed automatically.

(4) Screw heater: Cast aluminums heating rings.

(5) Metering pump: 1 set, rotation speed 0-45rpm.

(6) Electrical heating spinneret device



2. Cooling water tank: 2 sets

(1) The tank is made by stainless steel 304.

(2) The height of tank is horizontal pushing structure.



3. The first seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Reducer is from Jiangsu Guomao Reducer Co., Ltd.



4. Hot water tank: 1 set

(1) Tank size: 4000mm

(2) Heating power: 45KW in 2 zones,



5. The second seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Reducer is from Jiangsu Guomao Reducer Co., Ltd.



6. Hot blast oven for stretching.

(1) Oven length: 4000mm

(2) Heating power: 22.5kw, electric heating.



7. Seven roller stretching unit C, with brake resistor

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Built-in oil lubrication system which makes the gears runs steady.



8. Single layers hot blast annealing oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 22.5KW



9. The Fourth seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Reducer is from Jiangsu Guomao Reducer Co., Ltd.



9. Spindle winder: 10 spindles

(1) Spool as sample.

(2) Winding motor: 15KG



10. Electrical control system: 1 set



Specification:

Screw diameter Φ80mm
Raw material Nylon Filament size 1.5mm
Capacity 80Kg/H Filament shape customized
Screw L:D 30:1 Stretching unit 4 sets
Screw material 38CrMoALA Winder 12 spindles
Max linear speed 90m/min Instillation power 220Kw
Nozzle holes 4 holes Overall size 38×2.5×2.7m

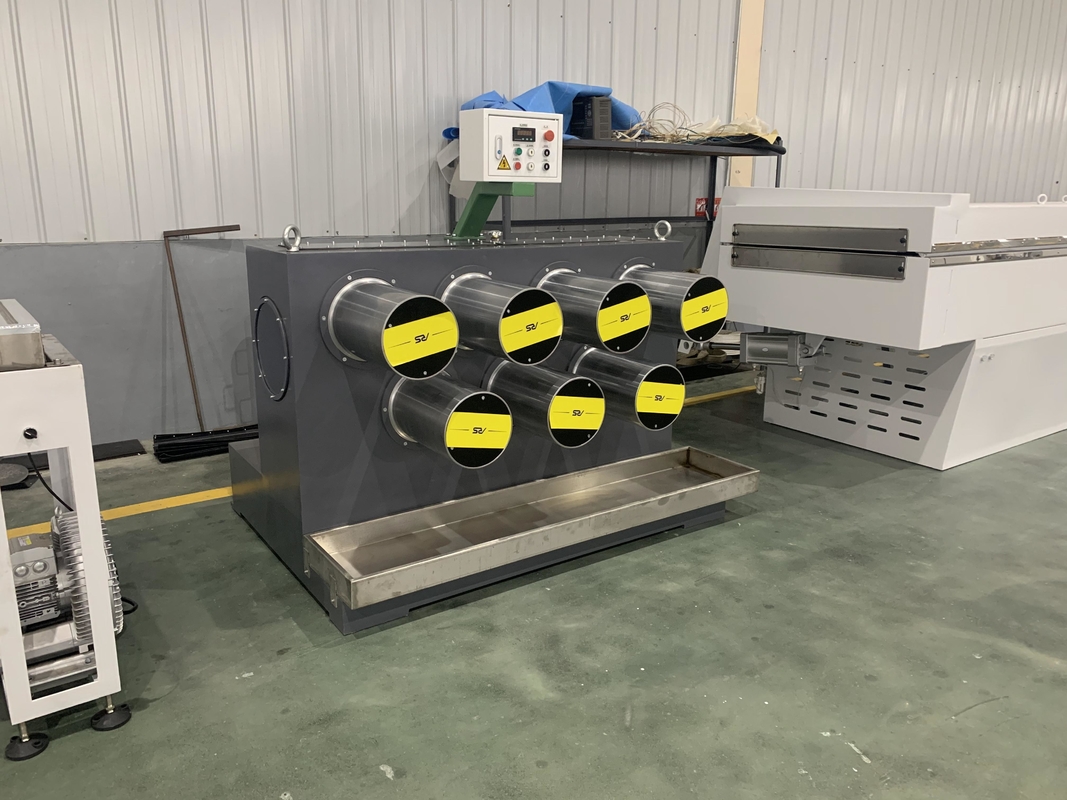

Pictures:

12 spindles Nylon Brush Cutter Trimmer Line 1.5mm diamater 0
