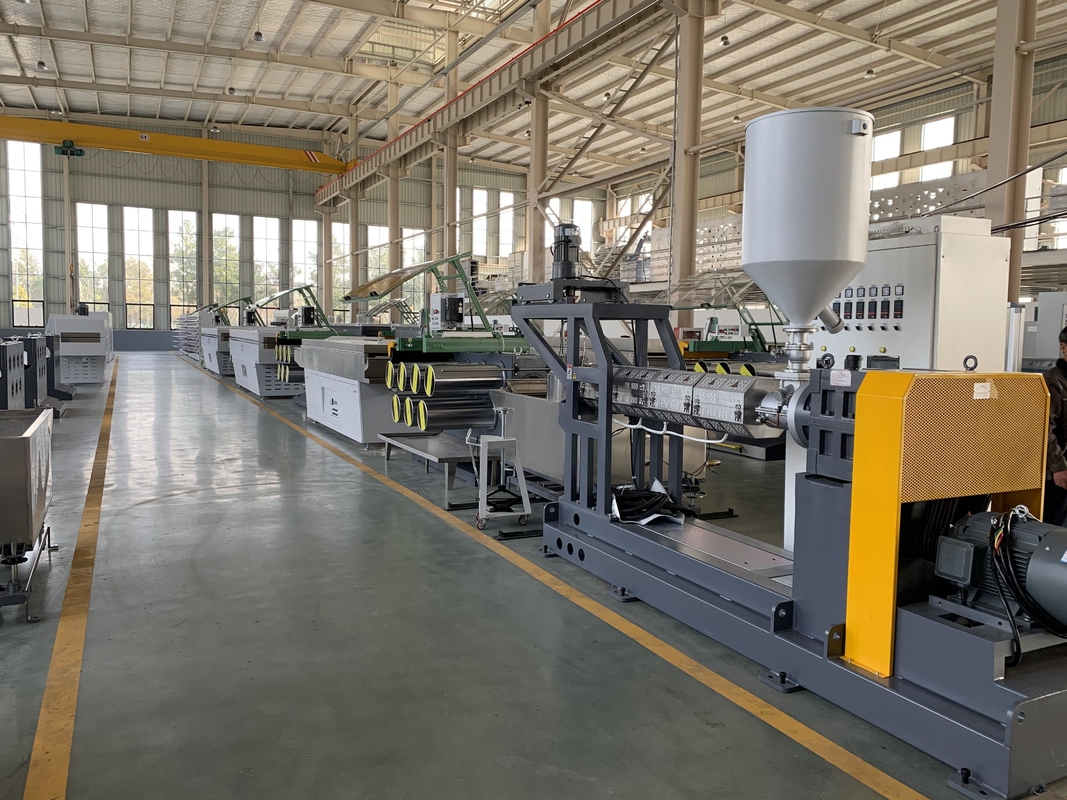

0.15mm PET Monofilament Machine For Pet Plastic Mesh Screen

Monofilament Extrusion Line For Pet Mesh Protection Net 0.1-0.25mm 125kg/h

Product Description:

1. Extruder: 1 set

(1) Screw diameter: 80mm.

(2) L:D: 30:1, Material of screw: 38CrMoALA ,

(3) Pressure automatic feedback system.

(4) Metering pump 30cc, rotation speed: 0-45 rotation.

(5) Round spinneret: 1 set.

2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

(2) Heating power:18KW.

3. Seven roller stretching unit A

(1) Seven variable diameter rollers which made by stainless steel 304.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-out oil lubrication system which makes the gears runs steady.

4. Overflow type hot water tank:1 set

(1) Tank size: 4000mm

(2) Heating power: 45KW in 2 zones

(3) The tank is made by SS 304 with insulating layer.

(4) Water circulating water pump

5. Seven roller stretching unit B

(1) Seven variable diameter rollers which made by steel pipe.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

6. Double layers hot blast stretching oven: 1 set

(1) Oven length: 4000 mm

(2) Special design of hot air channel.

7. Seven roller stretching unit C, with brake resistor

(1) Seven variable diameter rollers which made by steel pipes.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

8. Double layers hot blast stretching oven: 2 sets

(1) Oven length: 5000 mm

(2) Special design of hot air channel.

9. Seven roller stretching unit D.

(1) Seven variable diameter rollers which made by steel pipes.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

10. Lubricating system: 1 set

(1) Frequency control

11. Spindle winder: 300 spindles

(1) Bobbin: Spool

(2) The frame transmission is frequency control

(3) Max design speed: 0-200m/min

12. Waster yarn collectors: 1 sets
