0.3mm 120kgh Polyester Monofilament Extrusion Process PP Monofilament Extrusion Line
Key Attributes
Product Summary
Monofilament Extrusion Process For Polyester Hollow Braided Rope 0.3mm 120kgh Product Description: 1. Extruder: 1 set (1) Screw dia.: 90mm; Rotation speed: 0～100rpm, (2) L:D: 30:1; Material of screw: 38CrMoALA; (3) Pressure automatic feedback system. (4) Melt filter: Double position melt filter ...
Product Details
Polyester Monofilament Extrusion Process
,0.3mm Monofilament Extrusion Process
,120kgh PP monofilament extrusion line
Monofilament Extrusion Process For Polyester Hollow Braided Rope 0.3mm 120kgh
Product Description:
1. Extruder: 1 set
(1) Screw dia.: 90mm; Rotation speed: 0～100rpm,
(2) L:D: 30:1; Material of screw: 38CrMoALA;
(3) Pressure automatic feedback system.
(4) Melt filter: Double position melt filter changer.
(5) Spinneret device: 2 sets
(6) Metering pump:2 sets
(7) Heater: Electric heating ring
2. Cooling Water Tank:1 set
(1) The tank is made by Stainless Steel 304.
(2) The height of tank is adjustable and the horizontal pushing structure.

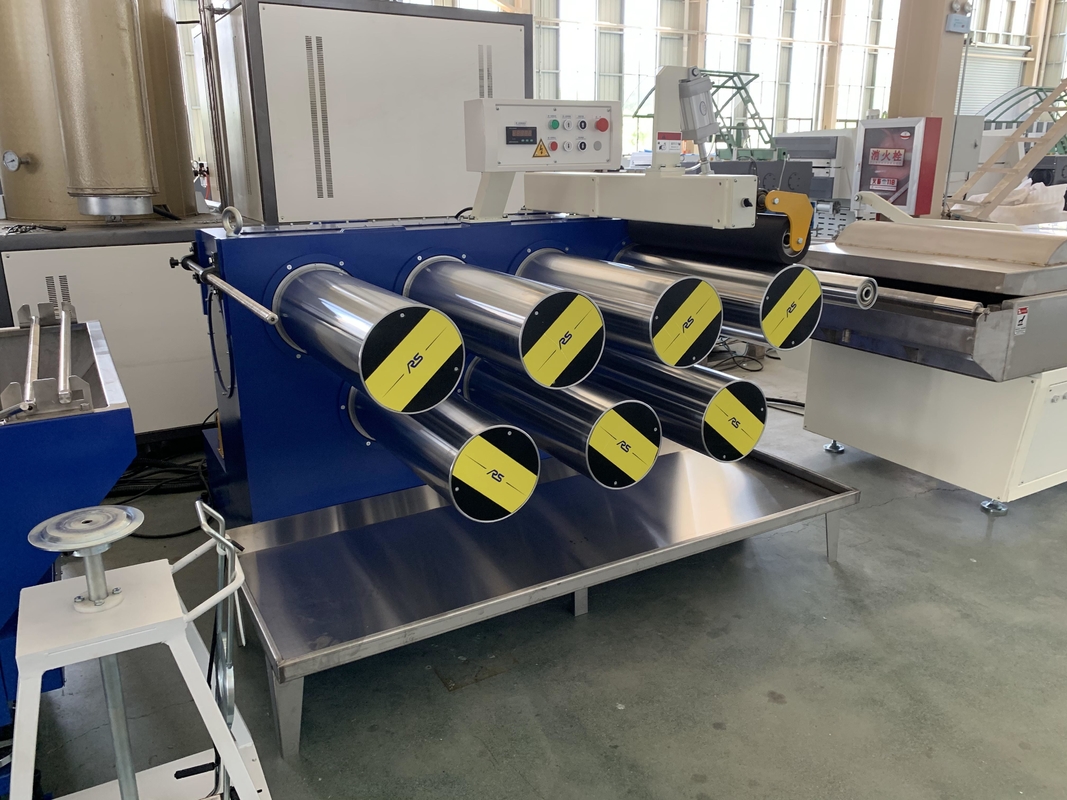

3. Seven roller Stretching unit A,
(1) Seven pieces variable diameter roller with hard chrome plating.
(2) Steel cabinet with accurately grind gear.
4. Hot water Tank:1 set
(1) Heating power: 50KW; Electrical heating.
(2) Material is stainless steel 304 with heat preservation.
5. Seven rollers stretching unit B: 0-180m
(1) Seven pieces variable diameter roller with hard chrome plating.
(2) Steel cabinet with accurately grind gear.
6. Spindle winder
(1) Winding spool
Parameter:
| Screw diameter | Φ85mm | ||
| Raw material | Polyester | Filament size | 0.3mm |
| Capacity | 120Kg/H | Filament shape | Hollow |
| Screw L:D | 30:1 | Stretching unit | 2 sets |
| Screw material | 38CrMoALA | Winder | 33 spindles |
| Max linear speed | 150m/min | Instillation power | 220Kw |
| Nozzle holes | 300 holes | Overall size | 30×2.5×2.5m |
Pictures:
