10mm Multipurpose PP Monofilament Extrusion Line Twisted Floating Rope Making

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per year

Get Best Price
High Light:

Multipurpose PP Monofilament Extrusion Line

,

10mm PP Monofilament Extrusion Line

,

10mm monofilament extrusion plant

Application:
Floating Rope
Size:
1/4''X1200'
Capacity:
80kgh
Strand:
3/4
Type:
Twisted
Power:
210kw
Oven:
1 Set
Winder:
Spool
Application:
Floating Rope
Size:
1/4''X1200'
Capacity:
80kgh
Strand:
3/4
Type:
Twisted
Power:
210kw
Oven:
1 Set
Winder:
Spool
10mm Multipurpose PP Monofilament Extrusion Line Twisted Floating Rope Making

PP Monofilament Extrusion Line For 3/4 Strands 10mm Twisted Floating Rope



Product Features:

Product Name:

3/4 Strands 10mm Twisted Floating Rope

Yarn deiner: 1000D
Capacity: 3 tons
Screw diameter: 85mm
Rotation speed of screw: 0~70 rpm
Running capacity: 210 KW





Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90mm, screw speed: 0~80 rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

(3) Pressure automatic feedback system which can adjust the screw speed automatically.

(4) Metering pump, rotation speed: 0-45 rotation.

(5) Electrical heating round spinneret: 1 set

(6) Spinneret plate: 2 pieces pinneret components: 2 sets



2. Quenching tank: 1 set

(1) Pushed and pulled in side way, the automatic lifting of tank.

(2) Special designed roller guider to separate the yarn in the tank easily.



3. Drying system:1 set

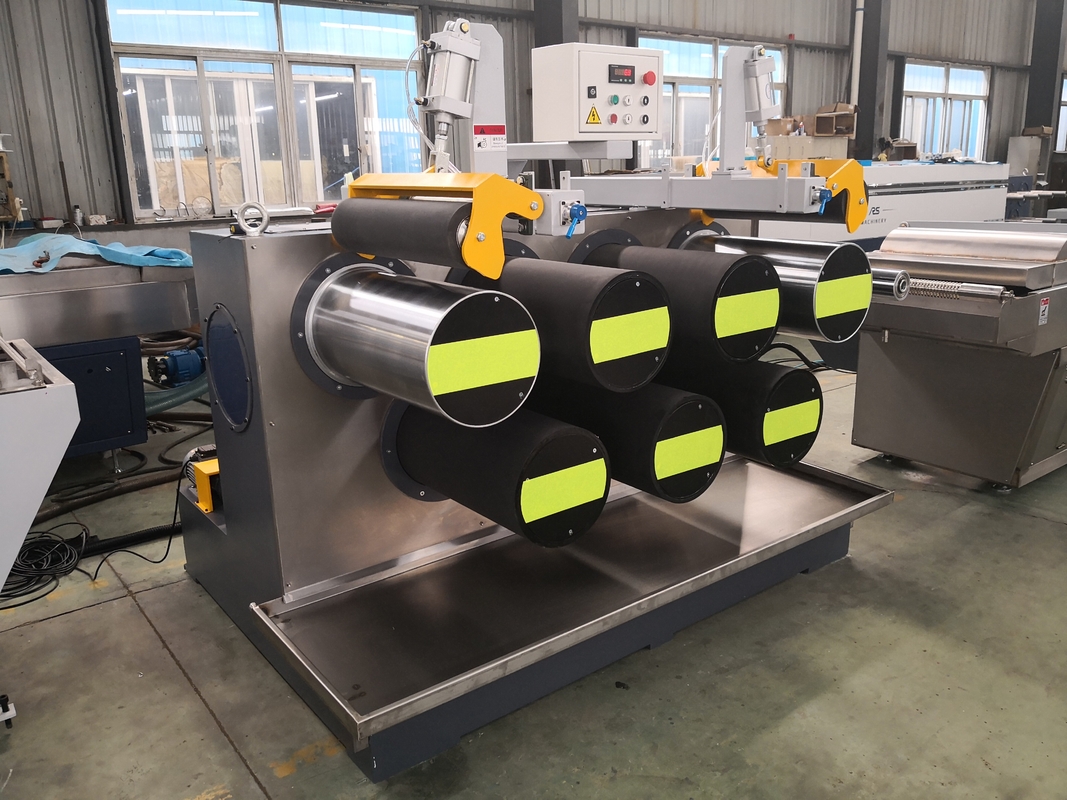

4. Seven roller stretching unit A: 1 set

(1) Five variable diameter rollers and two steel rollers.

(2) Max drafting force: 1000 daN.

(3) Steel box with accurately grind gear makes the rollers run smoothly.

(4) Built-out oil lubrication system which makes the gears runs steady.

(5) Woking height: 1100mm



5. Hot Air oven: 2 sets

(1) Heating power: 23KW×2

(3) Oven length: 5000 mm



6. Seven roller stretching unit B

(1) Six variable diameter rollers and one embossing roller.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.

(5) Woking height: 1100mm



7. Spindle winder



8. Total installation power: 190KW




Pictures:

10mm Multipurpose PP Monofilament Extrusion Line Twisted Floating Rope Making 0
