100kw 280D PP Monofilament Extrusion Line For Green Anti Hail Shade Net

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 60 sets per year

Get Best Price
High Light:

100kw PP Monofilament Extrusion Line

,

280D PP Monofilament Extrusion Line

,

280D Monofilament Extruder Machine

Application:
Anti Hail Shade Net
Color:
Green
Yarn Denier:
300D
Capacity:
50kgh
Screw Diamter:
70mm
Running Power:
100 Kw
Oven:
1 Set
Length:
34 Meters
Application:
Anti Hail Shade Net
Color:
Green
Yarn Denier:
300D
Capacity:
50kgh
Screw Diamter:
70mm
Running Power:
100 Kw
Oven:
1 Set
Length:
34 Meters
100kw 280D PP Monofilament Extrusion Line For Green Anti Hail Shade Net

PP Monofilament Extruder Machine For 280D Green Anti Hail Shade Net



Parameter:

Product Name:

  Anti Hail Shade Net

Yarn deiner: 280D
Capacity: 1 tons
Screw diameter: 50mm
Rotation speed of screw: 0~80 rpm
Running capacity: 115 KW


Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0~72rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

the screw is suitable for PP+PE Virgin.

(3) Filter: Auto screen changer.

(4) Pressure feedback system can adjust the screw speedatomatically.

(5) Material of barrel heater: Far infraed

(6) Metering pump, rotation speed: 0-45 rotation.

(7) Electrical heating round spinneret: 1 set

(8) Spinneret heater: by ceramic heating rings with SS insulating layer.



2. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the automatic lifting of tank.

(3) Special designed roller guider to separate the yarn in the tank easily.



3. Frist Seven roller stretching unit

(1) Five variable diameter rollers and two steel rollers.

(2) Max drafting force: 1000 daN.

(3) Steel box with accurately grind gear makes the rollers run smoothly.

(4) Built-out oil lubrication system which makes the gears runs steady.



5. Hot water tank: 1 set

(1) Heating power: 38kw.



6. Second Seven roller stretching unit

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.



7. Hot air oven: 1 set

(1) Heating power: 23KW

(2) Oven length: 5000 mm

(3) Special design of hot air channel which make the temperature evenly.



8. Second Seven roller stretching unit

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.



9. Winding machine: 1 set

(1) Bobbin size as client's reqeust.



10. Actual running power: 115KW



​Pictures:

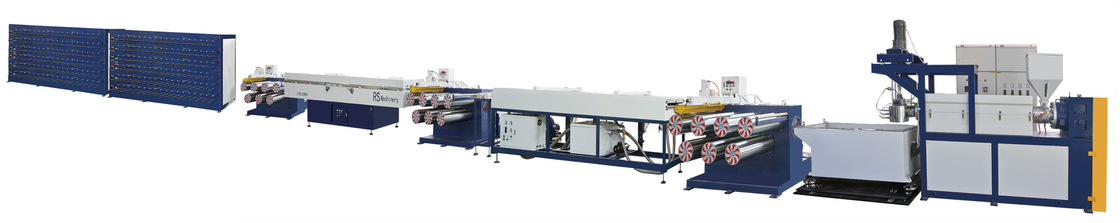

100kw 280D PP Monofilament Extrusion Line For Green Anti Hail Shade Net 0
