0.2mm PP Monofilament Making Machine Rope Making Machine 200kgh

1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0～80 rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

the screw is suitable for PP+PE Virgin.

(3) Filter: Manual/Auto filter changer.

(4) Pressure automatic feedback system can adjust the screw speed automatically.

(5) Material of barrel heater: Cast aluminums with stainless steel insulation layer to save the electrical consumption.

(6) Metering pump, rotation speed: 0-45 rotation.

(7) Electrical heating round spinneret: 1 set

(8) Spinneret heater: by ceramic heating rings with SS insulating layer.

(9) Spinneret plate: 2 pieces

Spinneret components: 2 sets

2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the automatic lifting of tank.

(3) Special designed roller guider to separate the yarn in the tank easily.

3. Drying system:1 set

4. Seven roller stretching unit A

(1) Five variable diameter rollers and two steel rollers.

(2) Max drafting force: 1000 daN.

(3) Steel box with accurately grind gear makes the rollers run smoothly.

(4) Built-out oil lubrication system which makes the gears runs steady.

The bearings are from TIMKEN-TWB.

5. Double layers hot blast stretching oven: 1 set

(1) Heating power: 23KW

(2) Oven length: 5000 mm

(3) Special design of hot air channel which make the temperature evenly.

6. Seven roller stretching unit B

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.

The bearings are from TIMKEN-TWB.

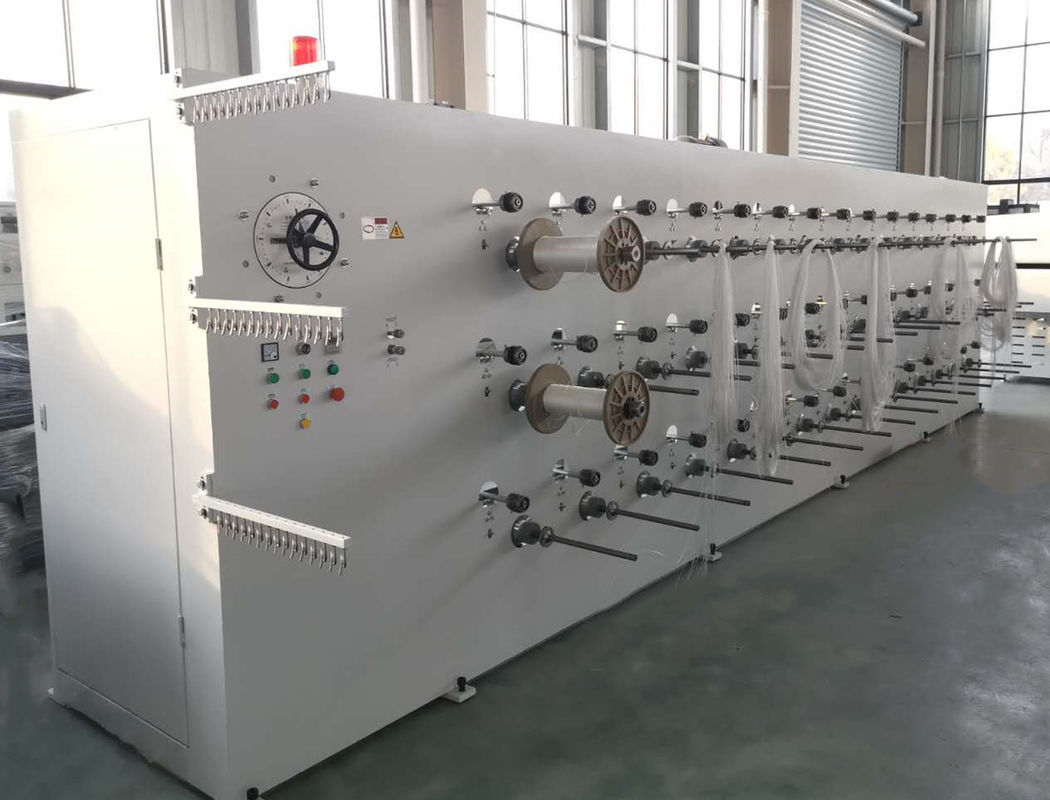

7. Spindle winder or ring twisting winder

(1) Bobbin size : 8 inch tube.

8. Actual running power: 70KW
