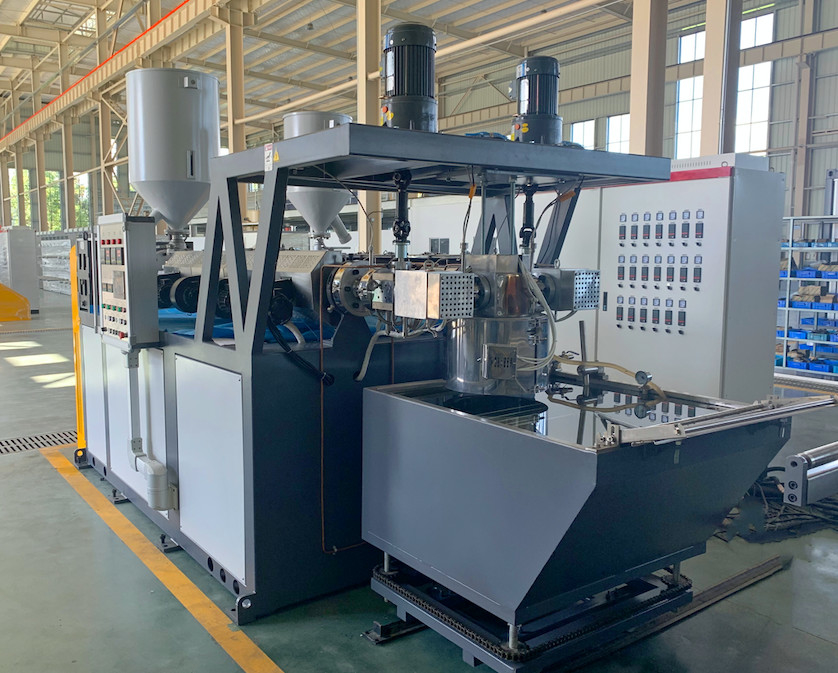

50kgh Nylon Monofilament Making Machine Brush Making Machine

1. Extruder

(1) Screw A diameter: 50mm; Rotation speed: 0～60rpm.

(2) Screw B diameter: 40; Rotation speed: 0～60rpm.

(3) L:D: 30:1; material of screw: 38CrMoALA ；

The screw structure is special designed for PA/PBT/PET/TPU/TPE chips.

(4) RKC Pressure automatic feedback system can adjust the screw speed automatically.

(5) Screw heater: Cast aluminums heating rings with stainless steel insulation layer.

(6) Electrical heating spinneret device: 1 set

(7) Heater: Electric heating ring to ensure the temperature stabilization.

(8) Metering pump: 2 sets, rotation speed 0-45rpm.

2. Cooling water tank: 1 set

(1) The tank is made by stainless steel 304.

(2) The height of tank is horizontal pushing structure is conveniently to disassembly the spinneret.

(3) Air chiller: 1 set

4. The first seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) Built-out oil lubrication system which makes the gears run steady.

(5) Equip 1 pressing roller.

5. Overflow type hot water tank: 1 set

(1) Tank size: 4000mm

(2) Heating power: 45KW in 2 zones, electric heating pipe is in the tank.

(3) The tank is made by SS 304 with insulating layer.

(4) Water removal device: 2 sets with suction.

(5) Water circulating water pump 2 sets.

6. The second seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) Equip 1 pressing roller.

7. Hot blast oven for stretching.

(1) Oven length: 4000mm

(2) Heating power: 22.5kw, electric heating.

The temperature controlled by solid relay.

8. Seven roller stretching unit C, with brake resistor

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.

(4) Equip 1 pressing roller.

9. Single layers hot blast annealing oven: 2 sets

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 22.5KW

(3) Special design of hot air channel which make the temperature evenly.

10. The Fourth seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) Equip 1 pressing roller.

9. Lubricating system: 1 set

(1) Frequency control of speed

10. Tapered winder: 180 spindles

(1) Tube is according to the client’s requirements.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) The frame transmit by gear rack

(4) Winding motor: 5KG

(5) Max design speed: 0-180m/min

11. Electrical control system: 1 set

12. Overall size: 40000×2500×2000mm

13. Installation power: 180kw
