LLDPE Monofilament Extruder Machine Straight Filament In Artificial Grass Yarn

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
High Light:

Monofilament Extruder Machine

,

LLDPE Monofilament Extruder Machine

,

LLDPE plastic filament extruder

Raw Material:
LLDPE
Ply:
6
Screw:
90mm
Application:
Straight Filament
Capacity:
250kg Per Hour
Speed:
200m/min
Extruder:
3 Sets
Spool:
10kg
Raw Material:
LLDPE
Ply:
6
Screw:
90mm
Application:
Straight Filament
Capacity:
250kg Per Hour
Speed:
200m/min
Extruder:
3 Sets
Spool:
10kg
LLDPE Monofilament Extruder Machine Straight Filament In Artificial Grass Yarn

LLDPE Monofilament Extruder Machine For Straight Filament Used In Artificial Grass Yarn



Product Description:

1. Extruder: 3 sets

(1) Screw diameter: 70mm, there is thermometer hole in the barrel which has cooling fans.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

(3) Spinneret: 3sets.



2. Cooling water tank

(1) The tank is made by SS 304 with one light and safety shield.

(2) There are double ceramic roller guiders which are adjustable.



3. Five roller stretching unit A, 0-35m/min

(1) Motor power: 7.5kw

(2) The steel structure box with accurately grind gear makes the rollers run smoothly.



4. Hot water tank

(1) Overall size: 4000×1300×1100 mm

(2) Heating method: electric heating





5. Oiling heating five roller stretching unit B, 0-160m/min

(1) 4 heating roller and working width 1300mm

(2) Standard heater has self-protective and alarm function.



7. Double layers hot blast stretching oven: 1 set

(1) Working area: 5000mm L×1350mm W.

Heating power: 35KW×2, the circulating fan: 4Kw×4.

(2) Frequency control speed of blast capacity. Temperature control range: 0-200 degree.



8. Three roller setting unit C, 0-160m/min

(1) Two cooling roller:φ318×1300×3,standard rotary joint.

(2) Driving motor and reducer: 7.5kw





9. Spindle winder: 64 spindles

(1) Constant tension magnetic disk deviation transmission.

(2) Winding motor: 250w, the bobbin size is according to the customer’s requirements.



10. Waster yarn collector

(1) Including pipes and fan, fan power: 7.5kw



11. The installation power: 320kw;



12. Overall size: 42000×2500×2500mm;



13. Total weight: 22T



Specification:

Screw diameter Φ90mm
Raw material LLDPE PLY 6
Capacity 250Kg/H Filament shape profile
Screw L:D 33:1 Stretching unit 3 sets
Screw material 38CrMoALA Winder 66spindles
Max linear speed 250m/min Instillation power 200-350Kw
Nozzle holes customized Overall size 42×2.5×2.5m




Pictures:

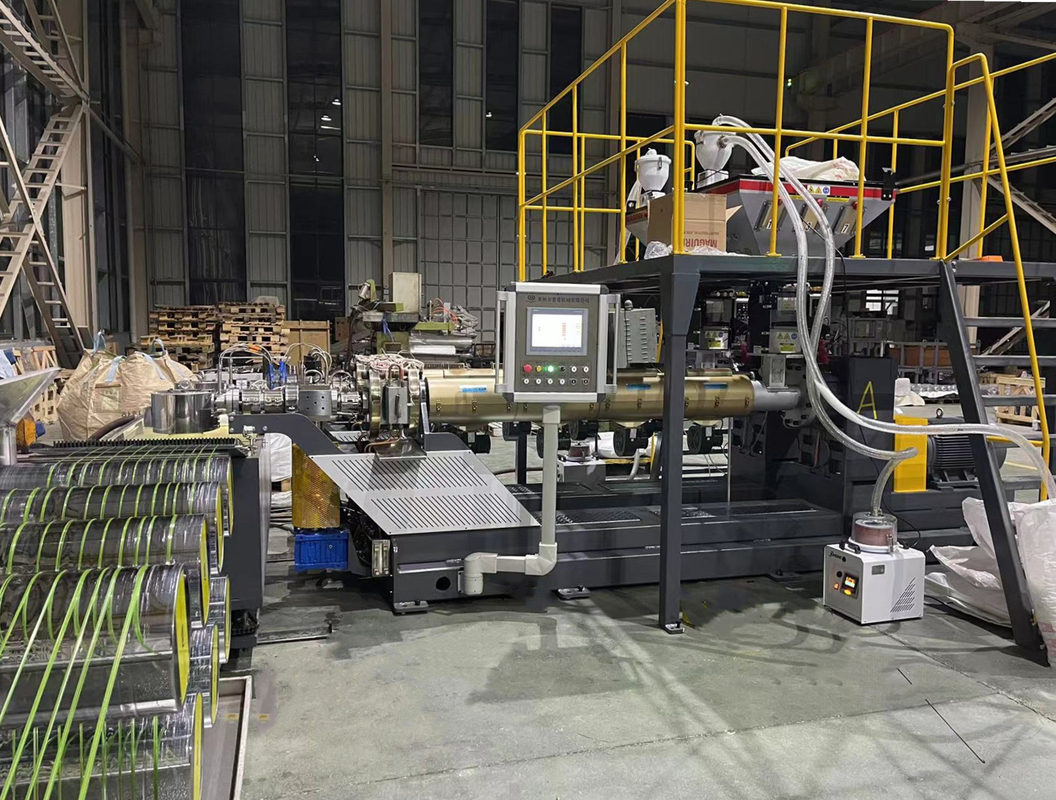

LLDPE Monofilament Extruder Machine Straight Filament In Artificial Grass Yarn 0
