PA Monofilament Extruder Machine 0.15-0.4mm High Strength Fabric

PA Monofilament Extruder Machine For 0.15-0.4mm High Strength Fabric

Product Description:

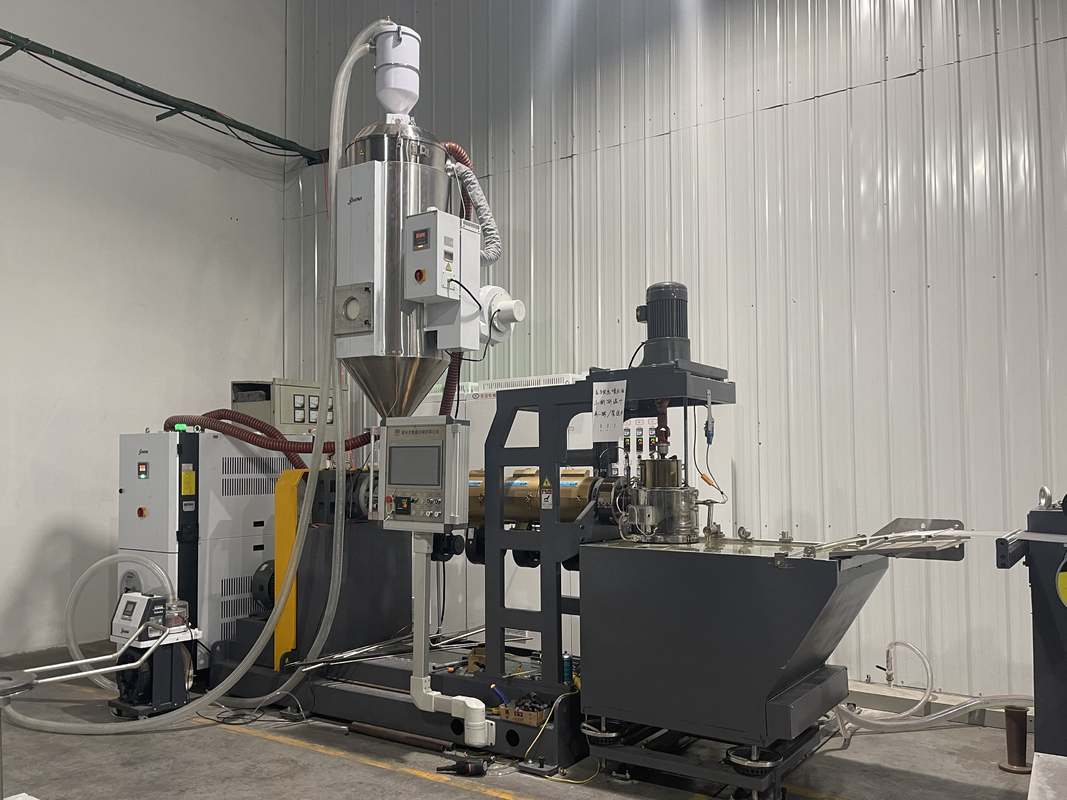

1. Extruder: 1 set
(1) Screw diameter: 80mm, Rotation speed of screw: 0～72 rpm. Screw: Zhejiang Zhoushan.
(2) L:D: 30:1, Material of screw: 38CrMoALA ,

2.The screw is suitable for PA chips.
(3) Pressure feedback system which can adjust the screw speed automatically.
(4) Material of barrel heater: Far infarad
(5) Metering pump 50cc, rotation speed: 0-45 rotation.
(6) Oil heating round spinneret: 1 set.
(7) Feeding zone should be with sight window and magnetic.
(8) Two color doer: 1 set

3. Quenching tank: 1 set
(1) The tank is made by SS 304.
(2) Equip one suction device under the yarn support plate.

4. First seven roller stretching unit
(1) Seven variable diameter rollers which made by stainless steel 304.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Built-out oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
(4) Equip 1 pressing roller.
(5) Equip water collecting plate at bottom.

5. Overflow type hot water tank:1 set
(1) Tank size: 4000mm
(2) Heating power: 45KW in 2 zones,
Electric heating pipe is in the tank.
(3) The tank is made by SS 304 with insulating layer.
(4) Water removal device: 2 sets with 5.5kw fan.
(5) Water circulating water pump 2 sets

6. Second seven roller stretching unit
(1) Seven variable diameter rollers which made by steel pipe.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
(4) Equip 1 pressing roller.

7. Double layers hot blast stretching oven: 1 set
(1) Oven length: 4300 mm
(2) Special design of hot air channel which make the temperature evenly.

8. Third Seven roller stretching unit
(1) Seven variable diameter rollers which made by steel pipes.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
(4) Equip 1 pressing roller.

9. Double layers hot blast stretching oven: 2 sets
(1) Oven length: 4300 mm
(2) Special design of hot air channel which make the temperature evenly.

10. Forth Seven roller stretching unit
(1) Seven variable diameter rollers which made by steel pipes.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(4) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
(6) Equip 1 pressing roller.

11. Lubricating system: 1 set
(1) Frequency control of speed
(2) Material: All made by SS 304

12. Spindle winder: 312 spindles
(1) Spool and bobbin are as client's reqeust
(2) The frame transmission is frequency control, driving motor: 2.2kw
(3) The frame transmit by gear rack
(4) Winding motor: 5KG
(5) Max design speed: 0-180m/min

13. Waster yarn collectors: 2 sets
(1) Torque motor power: 80KG.cm

14. Total installation power: 330KW
15. Total weight: 28T
