PP Monofilament Extruder Machine For PP Marco Fiber Used In Cement

PP Monofilament Extruder Machine For PP Marco Fiber Used In Cement

Product Description:

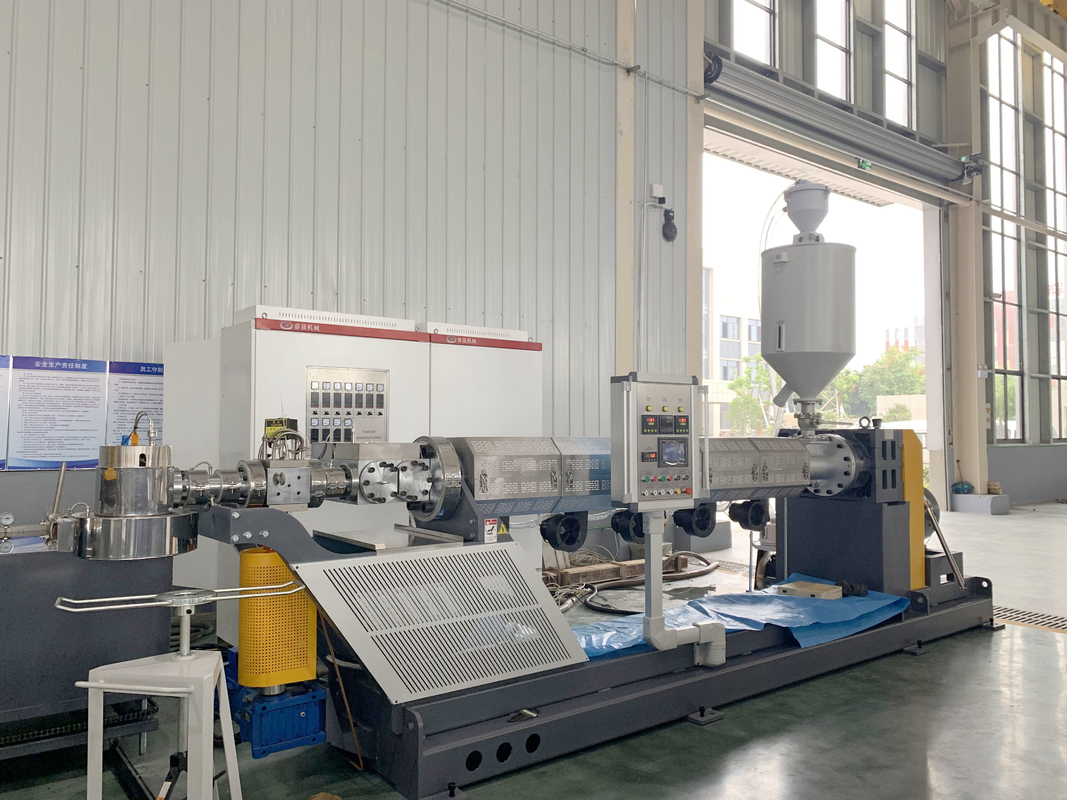

1. Extruder: 1 set

(1) Screw diameter: 90 mm, Rotation speed of screw: 0～60 rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA; The screw is suitable for PP Virgin.

(3) Hard tooth reducer: Jiangsu Haoke Reducer Co., Ltd

(4) Filter: JC Times automatic hydraulic filter changer.

(5) RKC Pressure automatic feedback system can adjust the screw speed automatically according to the pressure change to

ensure the uniform of each yarn.

(6) Material of barrel heater: Cast aluminium with stainless steel insulation layer which makes the heating evenly and high efficiency

(7) Equip 100kg stainless steel hopper

(8) Electric heating round spinneret: 1 set

(9) Ceramic heating rings for spinneret with SS insulating layer make the heat evenly.

(10) Metering pump 100cc/rpm, rotation speed: 0-40 rotation. Frequency control of motor speed.

2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

(2) Material of distributing roller: stainless steel

(3) Side Push-pull model.

3. Seven roller stretching unit A

(1) Seven roller variable diameter rollers, the working width 800mm,

There are five rollers are covered with rubber to resist skidding.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) Built-out oil lubrication system which makes the gears runs steady.

(5) Double pressing rollers (rubber roller)

4. Double layer hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×4 sets

(2) Heating power: 23KW×2

(3) Oven length: 4000 mm

(4) Special design of hot air channel which make the temperature evenly.

5. Seven roller stretching unit B.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) Built-in oil lubrication system which makes the gears runs steady.

6. Single layers hot blast stretching oven: 1 set

(1) Fan power of each oven: 2.2KW×2 sets

(2) Heating power: 30KW

(3) Oven length: 5000mm

(4) Special design of hot air channel which make the temperature evenly.

7. Seven roller stretching unit C.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) Built-in oil lubrication system which makes the gears runs steady.

8. Waster yarn collectors: 1 set

(1) Torque motor power: 80KG.cm

9. Spindle winder: 336spindles.

(1) The size of bobbin is according to customer’s request.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) The frame transmit by gear rack

(4) Max design speed: 0-160m/min

(7) The winder is suitable for bobbin and spool both.

10. Total installation power: 300KW

11. Overall size: 40000×1800×2500mm

12. Total weight: 28T
