0.25mm Filaments Monofilament Extruder Machine For Rope 150kgh

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 60 sets per year

Get Best Price
High Light:

0.25mm Monofilament Extruder Machine

,

150kgh Monofilament Extruder Machine

,

0.25mm monofilament making machine

Application:
PP Rope
Material:
PP Chips
Yarn Diameter:
0.25mm
Capacity:
150kgh
Screw Diamter:
90mm
Power:
230 Kw
Oven:
2 Sets
Length:
34 Meters
Application:
PP Rope
Material:
PP Chips
Yarn Diameter:
0.25mm
Capacity:
150kgh
Screw Diamter:
90mm
Power:
230 Kw
Oven:
2 Sets
Length:
34 Meters
0.25mm Filaments Monofilament Extruder Machine For Rope 150kgh

PP Monofilament Extruder Machine for rope 0.25mm filaments 150kgh



Parameter:

Product Name:

PP Rope Monofilament Extruding Machine

Yarn diameter: 0.25mm
Capacity: 4 tons
Screw diameter: 90mm
Rotation speed of screw: 0~72 rpm
Running capacity: 115 KW


Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0~72rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

the screw is suitable for PP+PE Virgin.

(3) Filter: Auto screen changer.

(4) Pressure feedback system can adjust the screw speed automatically.

(5) Material of barrel heater: Far infraed

(6) Metering pump, rotation speed: 0-45 rotation.

(7) Electrical heating round spinneret: 1 set

(8) Spinneret heater: by ceramic heating rings with SS insulating layer.

(9) Spinneret plate: 2 pieces

2. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the automatic lifting of tank.

(3) Special designed roller guider to separate the yarn in the tank easily.

3. Dryer:1 set

4. Frist Seven roller stretching unit

(1) Five variable diameter rollers and two steel rollers.

(2) Max drafting force: 1000 daN.

(3) Steel box with accurately grind gear makes the rollers run smoothly.

(4) Built-out oil lubrication system which makes the gears runs steady.

The bearings are from TIMKEN-TWB.

5. Double layers hot blast stretching oven: 1 set

(1) Heating power: 23KW

(2) Oven length: 5000 mm

(3) Special design of hot air channel which make the temperature evenly.

6. Second Seven roller stretching unit

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.

7. Spool winder or ring twisting winder

(1) Bobbin size as client's reqeust.

8. Actual running power: 115KW



​Pictures:

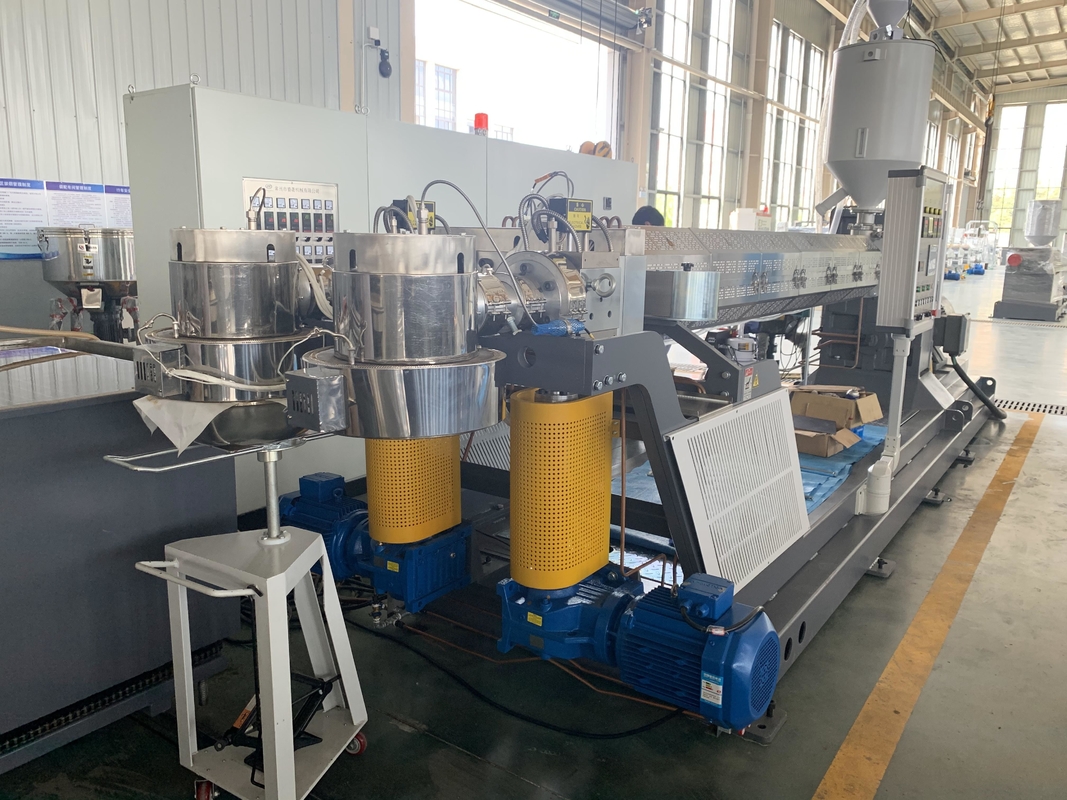

0.25mm Filaments Monofilament Extruder Machine For Rope 150kgh 0
