Product Details
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 60 set per year
Yarn Diameter: |
0.1-0.15mm |
Color: |
Double |
Capacity: |
100kg/h |
Material: |
PA |
Application: |
Tooth Brush |
Pattern: |
Customized |
Extruder: |
2 Sets |
Noozle: |
1 Set |
Yarn Diameter: |
0.1-0.15mm |
Color: |
Double |
Capacity: |
100kg/h |
Material: |
PA |
Application: |
Tooth Brush |
Pattern: |
Customized |
Extruder: |
2 Sets |
Noozle: |
1 Set |
Monofilament Extruder Machine For Twist Tooth Brush 0.1-0.15mm 100kg/h
Product Description:

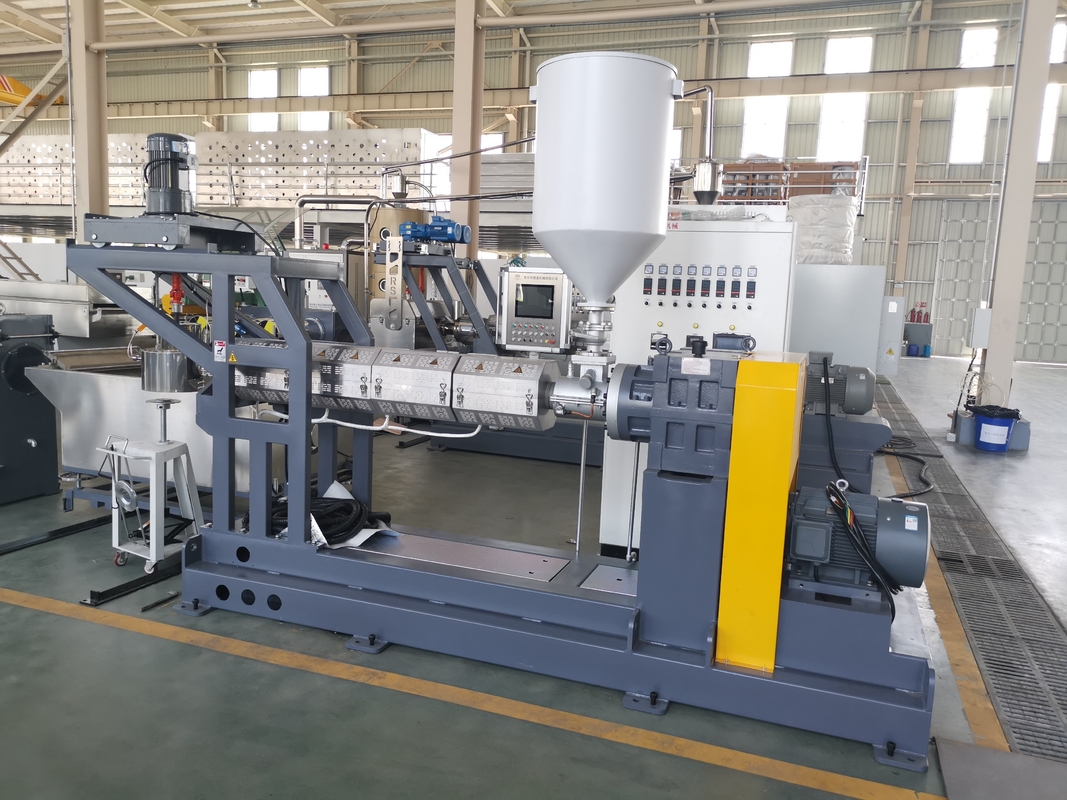

1. Extruder
(1) Screw A diameter: 50mm; Rotation speed: 0～72rpm.
(2) Screw B diameter: 40; Rotation speed: 0～72rpm.
(3) L:D: 30:1; material of screw: 38CrMoALA ；
The screw structure is special designed for nylon chips.
(3) Pressure automatic feedback system can adjust the screw speed automatically.
(4) Screw heater: Far infarad.
(5) Spinneret device: 1 set
(6) Heater: Electric heating ring to ensure the temperature stabilization.
(7) Metering pump: 2 sets, rotation speed 0-45rpm.
2. Quenching tank: 1 set
(1) The tank is made by stainless steel 304.
(2) The height of tank is horizontal pushing structure is conveniently to disassembly the spinneret.
(3) Air chiller: 1 set
3. The first seven roller stretching unit
(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run smoothly.
No rubber roller.
(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.
(4) Built-out oil lubrication system which makes the gears run steady.
4. Hot blast oven for stretching.
(1) Oven length: 4000mm
(2) Heating power: 22.5kw, electric heating.
The temperature controlled by solid relay.
5. The second seven roller stretching unit
(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run smoothly.
No rubber roller.
(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.
6. Single layers hot blast annealing oven: 3 sets
(1) Fan power: 2.2KW×2 sets.
(2) Heating power: 22.5KW
(3) Special design of hot air channel which make the temperature evenly.
7. The third seven roller stretching unit
(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run smoothly.
No rubber roller.
(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.
8. Lubricating system: 1 set
(1) Frequency control of speed
9. Semi-auto winding collector
(1) Winding frame length is as per customer’s request.
(2) Winding motor: 0.37KW
10. Electrical control system: 1 set
11. Overall size: 31000×2600×2100mm
12. Installation power: 160kw
| Screw diameter | Φ40+50mm | ||
| Raw material | Nylon | Filament size | 0.1-0.15mm |
| Capacity | 100Kg/H | Filament shape | profile |
| Screw L:D | 30:1 | Stretching unit | 3 sets |
| Screw material | 38CrMoALA | Winder | 180 spindles |
| Max linear speed | 160m/min | Instillation power | 160Kw |
| Nozzle holes | 168 holes | Overall size | 31×2.6×2.1m |
