125kgh PET Monofilament Extruder Machine For Rope Bottle Flakes

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Best Price
High Light:

125kgh Monofilament Extruder Machine

,

PET Monofilament Extruder Machine

,

PET monofilament extrusion machine

Material:
PET Bottle Flakes
Yarn Diameter:
0.12-0.3mm
Capacity:
125kgh
Filter:
Melt Filter
Power:
190kw
Length:
29m
Width:
2.6m
Winder:
66 Spindles
Material:
PET Bottle Flakes
Yarn Diameter:
0.12-0.3mm
Capacity:
125kgh
Filter:
Melt Filter
Power:
190kw
Length:
29m
Width:
2.6m
Winder:
66 Spindles
125kgh PET Monofilament Extruder Machine For Rope Bottle Flakes

PET Monofilament Extruder Machine For Rope bottle flakes 0.12-0.3mm 125kgh

Product Description:

1. Extruder: 1 set

(1) Screw dia.: 85mm; Rotation speed: 0~80rpm,

(2) L:D: 30:1; Material of screw: 38CrMoALA;

The screw is special design for PET recylce material.

(3) Pressure feedback system can adjust the screw speed automatically.

(4) Melt filter: Melt filter changer with candles

(5) Spinneret device: 1 set

(6) Metering pump: 1 set

(7) Heater: Electric heating ring to make sure the temperature evenly.

(8) Color doserm: 1 set

(9) Magnet basement: 1 set

2. Quenching Tank:1 set

(1) The tank is made by Stainless Steel 304.

(2) The height of tank is adjustable and the horizontal pushing structure is conveniently to disassembly the spinneret.

3. First Seven roller Stretching unit,

(1) Seven pieces variable diameter roller with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Built-out oil lubrication system makes gears run steady.

4. Hot water Tank:1 set

(1) Heating power: 70KW; Electrical heating, copper heating pipe

(2) Material is stainless steel 304 with heat preservation.

(3) Equip two pressing roller .

5. Second seven rollers stretching unit

(1) Seven pieces variable diameter roller with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Built-in oil lubrication system which makes the gears run steady.

6. Spindle winder

(1) Tapered winder

(2) Winding bobbin as per clinet's reqeust.

(3) Tesnion control by inverter.

7. Running capacity: 130 KW



Parameter:

Screw diameter Φ85mm
Raw material PET Filament size 0.12-0.3mm
Capacity 125Kg/H Filament shape round
Screw L:D 30:1 Stretching unit 2 sets
Screw material 38CrMoALA Winder 66 spindles
Max linear speed 160m/min Instillation power 130Kw
Nozzle holes 320 holes Overall size 29×2.6×2.6m


Pictures:

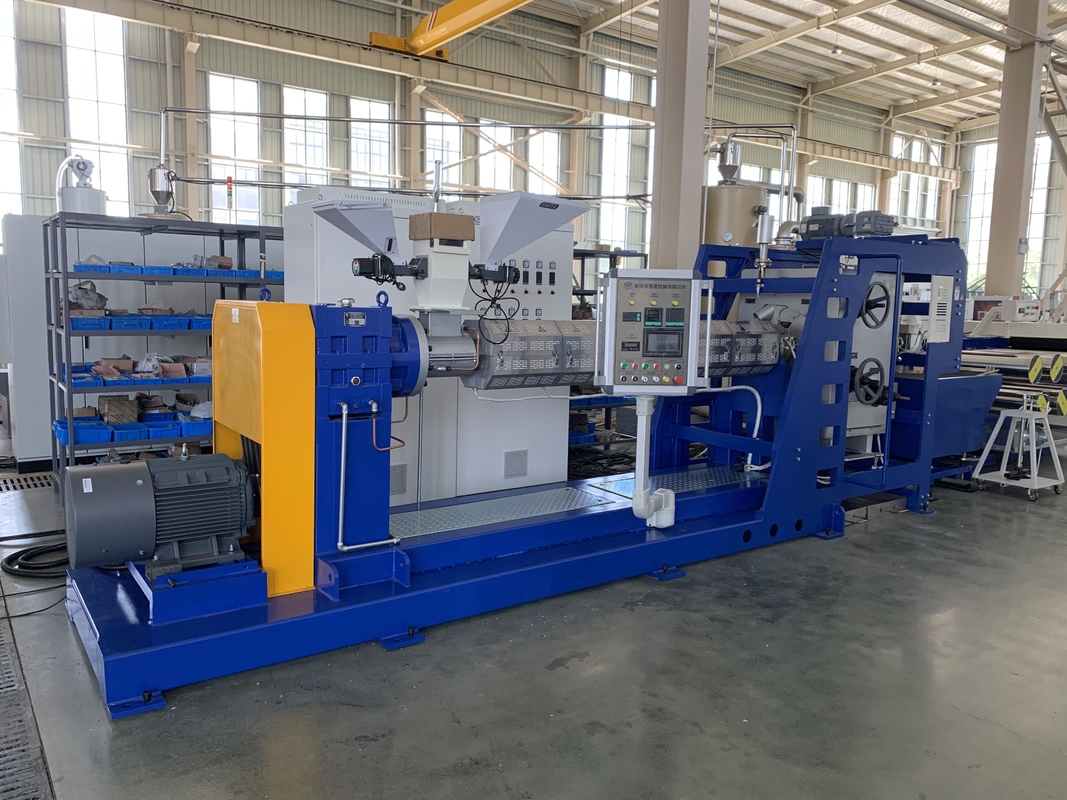

125kgh PET Monofilament Extruder Machine For Rope Bottle Flakes 0
