PP Monofilament Extruder Machine

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per year

Get Best Price
Highlight:

CE Monofilament Extruder Machine

,

Monofilament Extruder Machine PP

Material:
PP
PLY:
6
Screw:
70mm
Capacity:
50kg Per Hour
Texturing:
Air Type
Winder:
13 Spindles
Speed:
300m/min
Voltage:
Customized
Material:
PP
PLY:
6
Screw:
70mm
Capacity:
50kg Per Hour
Texturing:
Air Type
Winder:
13 Spindles
Speed:
300m/min
Voltage:
Customized
PP Monofilament Extruder Machine

PP Monofilament Extruder Machine For Curly Yarn With Two Color 50kgh



Product Description:



1. 70×33 Extruder:2 sets

(1) Main motor power: 30KW;

(2) Screw diameter: 70mm;

(3) L:D: 33:1; Material of screw: 38CrMoALA

(4) Automatic screen changer: 1 set



2. Cooling water tank: 1 set

(1) The tank is made by stainless steel 304.

(2) The height of tank is adjustable by motor and the horizontal pushing structure is conveniently to disassembly the spinneret.



3. Seven roller stretching unit A, 0-120m/min: 1 Set

(1) Steel roller size: φ270×700×7

The 7 rollers are made by SS 304 with hard chrome plating.



4. Hot water tank: 1 set

(1) Tank length:4000mm

(2) The water is heated by copper heating tube, the heating power: 50kw,





5. Water removal system with moisture absorption: 1 set

(1) Fan power:4kw×1 set



6. Seven roller stretching unit B,0-350m/min: 1 Set

(1) Steel roller size: φ350×700×7.

The 7 rollers are made by SS 304 with hard chrome plating.



7. Waster yarn collector system: 1 set

(1) Motor power: 7.5KW



8. Air texturing machines: 13 ends

Specification for each end:

(1) Gas heating barrel:1 sets

(2) Main conveying pipe:1 set,



9. Conveyer device: 3 sets+1 piece

(1) 1 set includes 4 working position.



10. Automatic tension feedback winder: 13 spindles

(1) Motor of tension roller:0.5kw

(2) Winding motor:0.25kw



12. Total weight: 22T



Parameter:

Screw diameter Φ70mm
Raw material PP Filament size customized
Capacity 50Kg/H Filament shape Curly
Screw L:D 33:1 Stretching unit 2 sets
Screw material 38CrMoALA Winder 13 spindles
Max linear speed 300m/min Instillation power 600Kw
Nozzle holes customized Overall size 25×20×2.8m


Pictures:

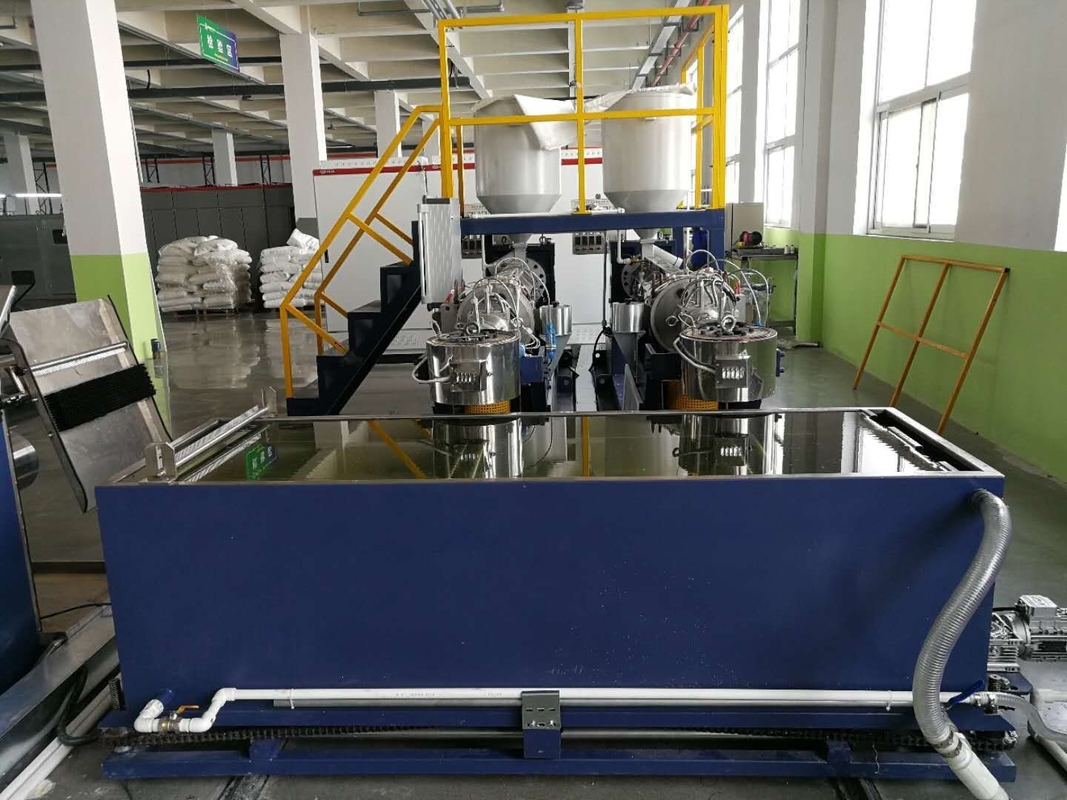

PP Monofilament Extruder Machine 0
