80kgh PET Monofilament Yarn Making Machine In Nylon Trimmer Line

1. Extruder

(1) Screw diameter: 85mm; Rotation speed: 0～72rpm.

(2) L:D: 30:1; material of screw: 38CrMoALA ；

The screw structure is special designed for PA chips.

(3) Pressure automatic feedback system can adjust the screw speed automatically.

(4) Eetering pump: 1 set, rotation speed 0-45rpm.

(6) Hater: Electric heating ring to ensure the temperature stabilization.

2. Quenching tank: 2 sets

(1) The tank is made by stainless steel 304.

(2) The height of tank is horizontal pushing structure is conveniently to disassembly the spinneret.

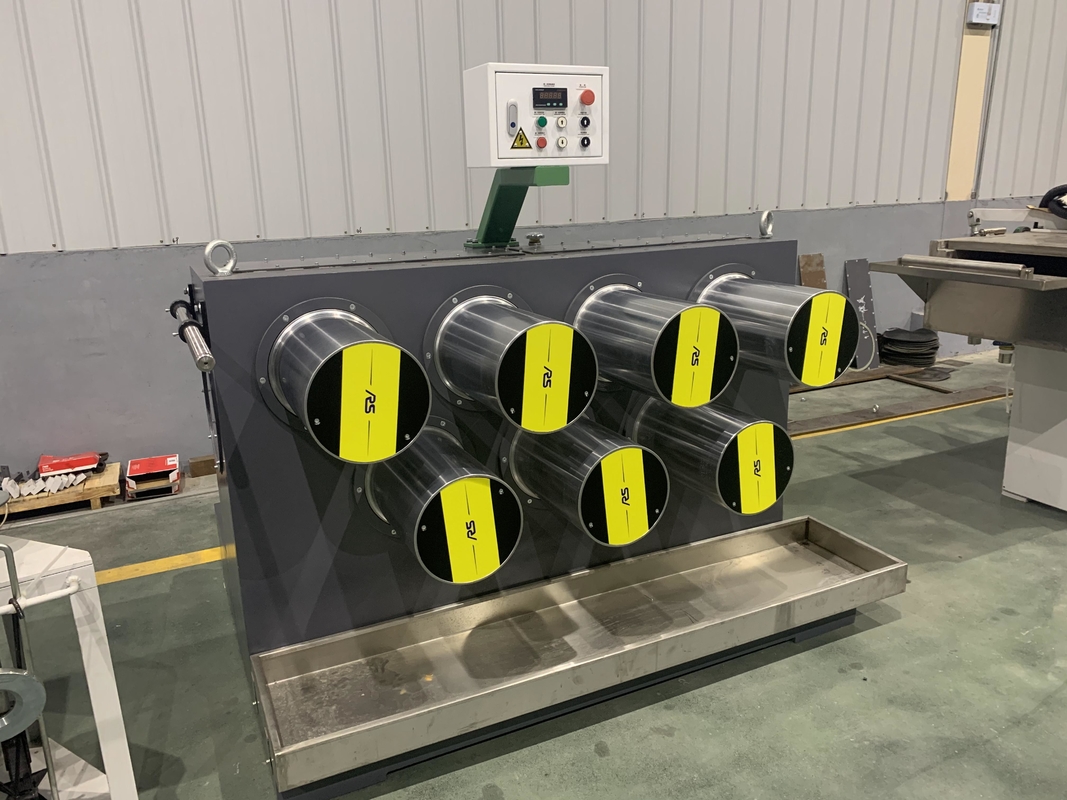

4. The first seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.

(4) Built-out oil lubrication system which makes the gears run steady.

5. Overflow type hot water tank: 1 set

(1) Tank size: 4000mm

(2) Heating power: 45KW in 2 zones,

(3) The tank is made by SS 304 with insulating layer.

(4) Water removal device: 2 sets with suction.

6. The second seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.

7. Hot blast oven for stretching.

(1) Oven length: 4000mm

(2) Heating power: 22.5kw, electric heating.

8. Seven roller stretching unit C,

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.

9. Single layers hot blast annealing oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 22.5KW

10. The Fourth seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.

9. Spindle winder: 12 spindles

(1) Spool and bobbin are as sample.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) Winding motor: 15KG

10. Electrical control system: 1 set
