2m/Second 2KW Monofilament Extrusion Machine For Trimmer Line
Key Attributes
Product Summary
Monofilament Extrusion Machine Blister Packing Device For Trimmer Line 2m/Second Product Description: Auto Winding machine is mainly applied to cut fixed length, wind and enlace of plastic filament, like grass trimming line and nylon monofilament. The machine can automatically cut, wind, enlace ...
Product Details
2KW monofilament extrusion machine
,2m/Second monofilament extrusion machine
,2KW monofilament yarn machine
Monofilament Extrusion Machine Blister Packing Device For Trimmer Line 2m/Second
Product Description:
Auto Winding machine is mainly applied to cut fixed length, wind and enlace of plastic filament, like grass trimming line and nylon monofilament. The machine can automatically cut, wind, enlace plastic filament and discharge products through parameter setting and PLC system, which is low manual cost and high production capacity.
Specification:
| No | Item name | Description |
| 1 | Yarn diameter | 1.0~4.0mm |
| 2 | Yarn feeding speed | ≤ 2m/second |
| 3 | Blister height | as customer‘s request’ |
| 4 | Blister diameter | 80~100mm |
| 5 | Winding speed |
6 package/second (based on 20m/package) |
| 6 | Power supply | 1 Phase AC, 220V, 50Hz, 2KW |
| 7 | Air compressor | 0.4~0.6Mpa 1m3/hr |

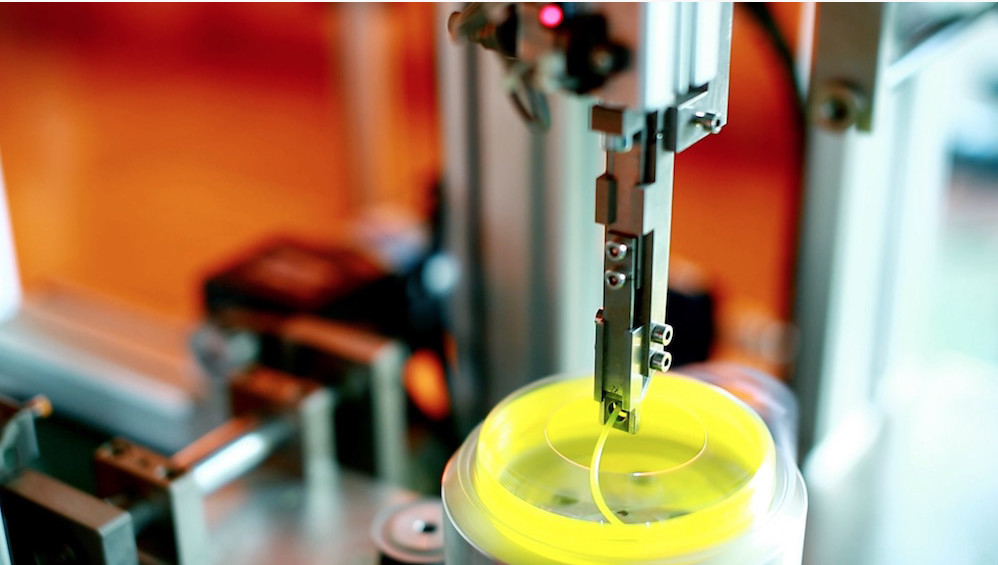

Pictures:
