PP Reinforced Fiber Monofilament Extrusion Machine 150kg/H With Different Pattern

Monofilament Extrusion Machine for PP reinforced fiber 150kg/h With Different Pattern

Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90 mm,

(2) L:D: 33:1, Material of screw: 38CrMoALA;

(3) Hard tooth reducer: Jiangyin Gearbox Manufactuer Co., Ltd

(4) Filter: Automatic screen changer.

(5) Pressure automatic feedback system can adjust the screw speed automatically.

(6) Material of barrel heater: Far infarad

(7) Equip 100kg stainless steel hopper

(8) Metering pump 100cc/rpm, rotation speed: 0-40 rotation.

2. Queching tank: 1 set

(1) The tank is made by SS 304.

(2) Material of distributing roller: stainless steel

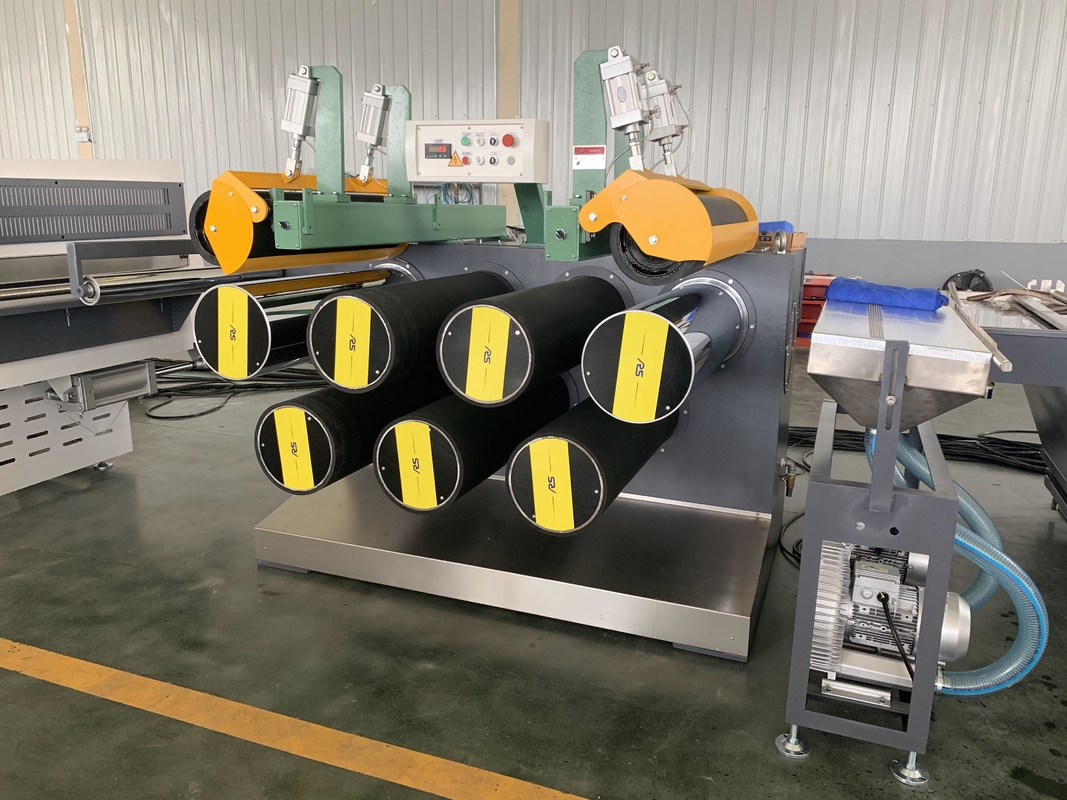

3. Seven roller stretching unit A

(1) Seven roller variable diameter rollers, the working width 800mm,

There are five rollers are covered with rubber to resist skidding.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

4. Double layer hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×4 sets

(2) Heating power: 23KW×2

(3) Oven length: 4000 mm

5. Seven roller stretching unit B.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

6. Single layers hot blast stretching oven: 1 set

(1) Fan power of each oven: 2.2KW×2 sets

(2) Heating power: 30KW

(3) Oven length: 5000mm

7. Seven roller stretching unit C.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

8. Waster yarn collectors: 1 set

(1) Torque motor power: 80KG.cm

9. On-line cutting machine

Specification:

Pictures:
