0.1mm 170kw Monofilament Yarn Making Machine For PET Shading Nets

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per year

Get Best Price
High Light:

170kw monofilament yarn making machine

,

0.1mm monofilament yarn making machine

,

PET Shading Nets monofilament yarn machine

Material:
PET Bottle Flakes
Application:
Shading Nets
Yarn Size:
0.1-0.13mm
Capacity:
50kg/h
Power:
170kw
Brand:
Leap
Screw L:D:
30:1
Speed:
180m/min
Material:
PET Bottle Flakes
Application:
Shading Nets
Yarn Size:
0.1-0.13mm
Capacity:
50kg/h
Power:
170kw
Brand:
Leap
Screw L:D:
30:1
Speed:
180m/min
0.1mm 170kw Monofilament Yarn Making Machine For PET Shading Nets

Monofilament Extrusion Machine For PET Shading Nets 0.1-0.13mm 50kg/h



Product Description:



1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0~72 rpm.

(2) L:D: 30:1, Material of screw: 38CrMoALA ,

The screw is suitable for PET recycle.

(3) Pressure automatic feedback system can adjust the screw speed automatically to ensure the uniform of yarn.

(4) Material of barrel heater: Far infarad.

(5) Metering pump 50cc, rotation speed: 0-45 rotation.

(6) Round spinneret: 1 set.



2. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) Using heating pipe, power:18KW.

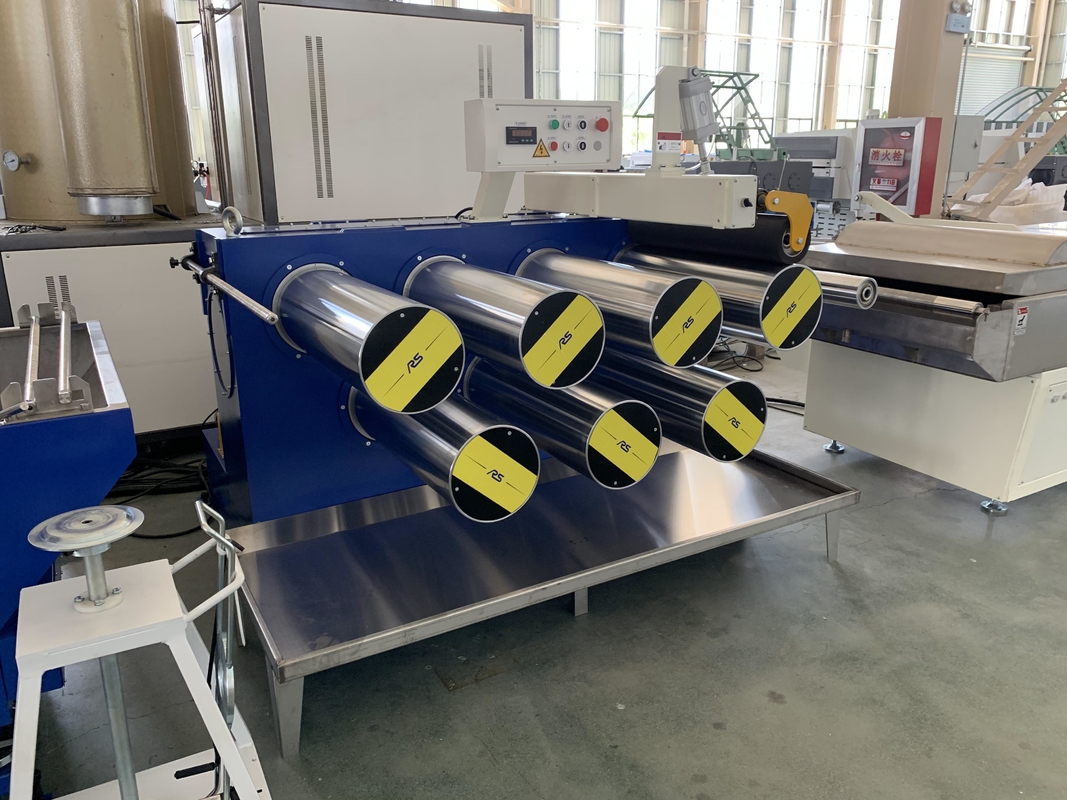

3. Seven roller stretching unit A

(1) Seven variable diameter rollers.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-out oil lubrication system which makes the gears runs steady.



4. Overflow type hot water tank:1 set

(1) Tank size: 4000mm

(2) Heating power: 45KW in 2 zones,

(3) The tank is made by SS 304 with insulating layer.

(4) Water removal device: 2 sets with 5.5kw fan.



5. Seven roller stretching unit B

(1) Seven variable diameter rollers which made by steel pipe.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.



6. Spindle winder: 336 spindles

(1) Bobbin as client's request.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) Max design speed: 0-18m/min






Parameter:
Screw diameter Φ70mm
Raw material PET bottle flakes Filament size 0.1-0.13mm
Capacity 50Kg/H Filament shape round
Screw L:D 30:1 Stretching unit 2 sets
Screw material 38CrMoALA Winder 252 spindles
Max linear speed 180m/min Instillation power 170Kw
Nozzle holes 240 holes Overall size 26×2.5×3.5m


Pictures:

0.1mm 170kw Monofilament Yarn Making Machine For PET Shading Nets 0
