PBT Cosmetic Brush Monofilament Extrusion Machine 0.09mm 9kgh

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 60 sets per year

Get Best Price
Highlight:

0.09mm Monofilament Extrusion Machine

,

PBT Monofilament Extrusion Machine

,

0.09mm PP monofilament extrusion line

Material:
PBT
Yarn Diameter:
0.09mm
Capacity:
9kgh
Application:
Cosmetic Brush
Length:
48m
Oven:
3 Sets
Ends:
240
Tank:
2 Sets
Material:
PBT
Yarn Diameter:
0.09mm
Capacity:
9kgh
Application:
Cosmetic Brush
Length:
48m
Oven:
3 Sets
Ends:
240
Tank:
2 Sets
PBT Cosmetic Brush Monofilament Extrusion Machine 0.09mm 9kgh

Monofilament Extrusion Machine For PBT Cosmetic Brush 0.09mm 9kgh



Product Description:



1. Extruder

(1) Screw diameter: 50mm; Rotation speed: 0~72rpm.

(2) L:D: 30:1; material of screw: 38CrMoALA ;

(3) Pressure automatic feedback system can adjust the screw speed automatically to make sure the uniform of yarn.

(4) Screw heater: Far infarad.

(5) Spinneret device: 1 set

(6) Heater: Electric heating ring to ensure the temperature stabilization.

(7) Metering pump, rotation speed 0-45rpm.



2. Queching tank: 1 set

(1) The tank is made by stainless steel 304.

(2) The height of tank is horizontal pushing structure is conveniently to disassembly the spinneret.



3. The first seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.



4. Hot blast stretching oven.

(1) Oven length: 4000mm

(2) Heating power: 22.5kw, electric heating.



5. The second seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.



6. Single layers hot blast annealing oven

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 22.5KW



7. The third seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly. No rubber roller.

(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.



8. Lubricating system: 1 set

9. Semi-auto winding collector

(1) Winding frame length is as per customer’s request.



12. Electrical control system: 1 set



Parameter:

Screw diameter Φ50mm
Raw material PBT Filament size 0.09mm
Capacity 9Kg/H Filament shape round
Screw L:D 30:1 Stretching unit 4 sets
Screw material 38CrMoALA Winder 252 spindles
Max linear speed 180m/min Instillation power 180Kw
Nozzle holes 240 holes Overall size 48×2.6×2.1m

Pictures:

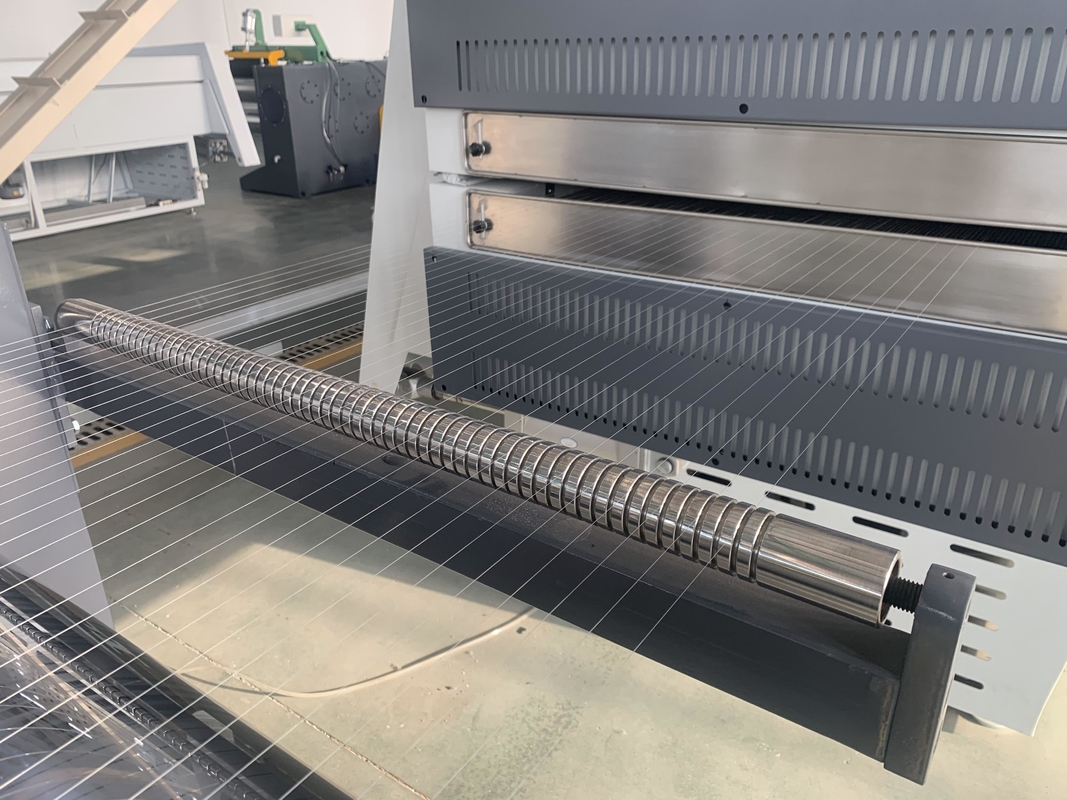

PBT Cosmetic Brush Monofilament Extrusion Machine 0.09mm 9kgh 0
