120kg/H PET Monofilament Yarn Making Machine Multi Functional Bristles

Monofilament Extrusion Machine for PET Multi-functional Bristles 120kg/h

Product Description:

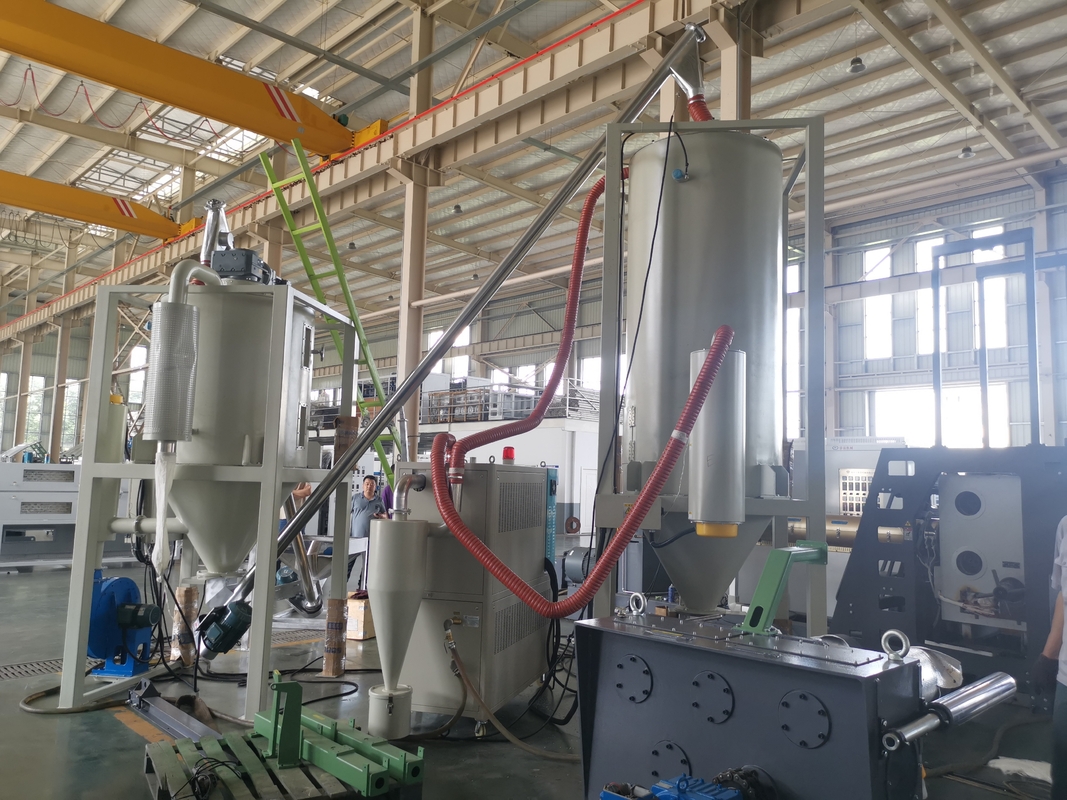

1. Dryer system

2. Extruder

(1) Screw diameter: 85mm; Rotation speed: 0～72rpm.

(2) L:D: 33:1; material of screw: 38CrMoALA ；

(3) Pressure feedback system can adjust the screw speed automatically to make sure the uniform of yarn.

(4) Manual filter changer

(5) Spinneret device: 1 set

(7) Heater: Electric heating ring to ensure the temperature stabilization.

3. Queching tank: 1 set

(1) The tank is made by stainless steel 304.

4. First seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.

5. Hot water tank: 1 set

(1) Tank length: 4000mm

(2) Heating power: 50kw, electric heating.

(3) The tank is made by SS 304 with the insulating layer

(4) Equip water suction unit.

6. The second seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.

7. Single layers hot blast oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 22.5KW

8. The third seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

Parameter:

Screw diameter	Φ85mm
Raw material	PET	Filament size	0.12-0.35mm
Capacity	120Kg/H	Filament shape	roun
Screw L:D	30:1	Stretching unit	3 sets
Screw material	38CrMoALA	Winder	2 spindles
Max linear speed	180m/min	Instillation power	280Kw
Nozzle holes	400 holes	Overall size	39×2.9×4.8m

Pictures:
