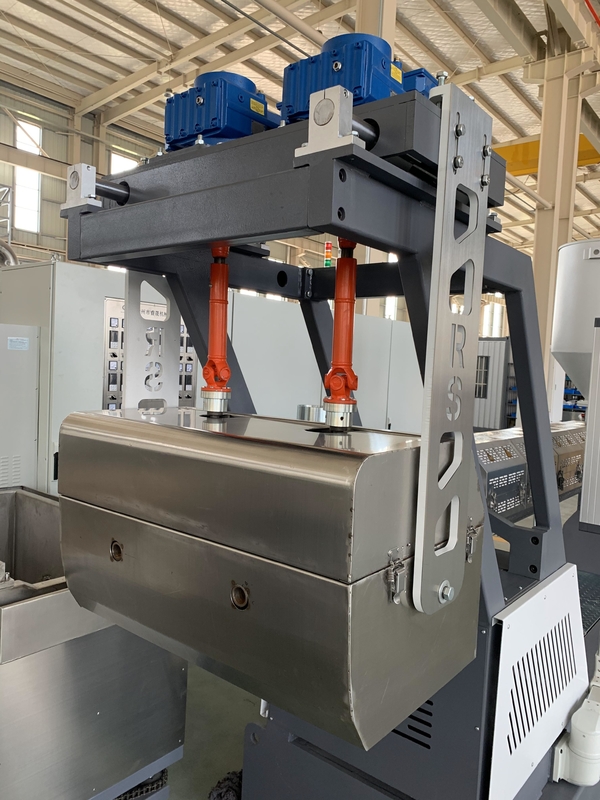

CE Approval Monofilament Extrusion Machine Monofilament Extruder Machine High Strength HDPE

Monofilament Extrusion Machine For High Strength HDPE Filament 0.15-0.25 7gpd

Product Description:

1. Extruder: 1 set

(1) Screw diameter: 80mm, Rotation speed of screw: 0～80 rpm

(2) L:D: 30:1, Material of screw: 38CrMoALA ,

(3) RKC pressure automatic feedback system which can adjust the screw speed automatically.

(4) Material of barrel heater: Cast aluminium with stainless steel insulation layer.

(5) Metering pump, rotation speed: 0-45 rpm.

(6) Round spinneret: 1 set.

2. Cooling water tank: 1 set

3. Seven roller stretching unit A

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

4. Overflow type hot water tank: 1 set

(1) Tank size: 4000mm

(2) Electric heating pipe is in the tank.

(3) The tank is made by SS 304 with insulating layer.

5. Seven roller stretching unit B

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

6. Double layers hot blast stretching oven: 1 set

(1) Oven length: 4000 mm

(2) Heating power 23kw×2

7. Seven roller stretching unit C, with brake resistor

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly

8. Double layers hot blast stretching oven: 2 sets

(1) Oven length: 5000 mm

(2) Heating power 23kw×2

9. Seven roller stretching unit D.

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

10. Lubricating system: 1 set

(1) Frequency control of speed

11. Spindle winder: 24 spindles

(1) Spool and bobbin are as sample.

(2) The frame transmission is frequency control, driving motor: 2.2kw

12. Waster yarn collectors: 1 set
