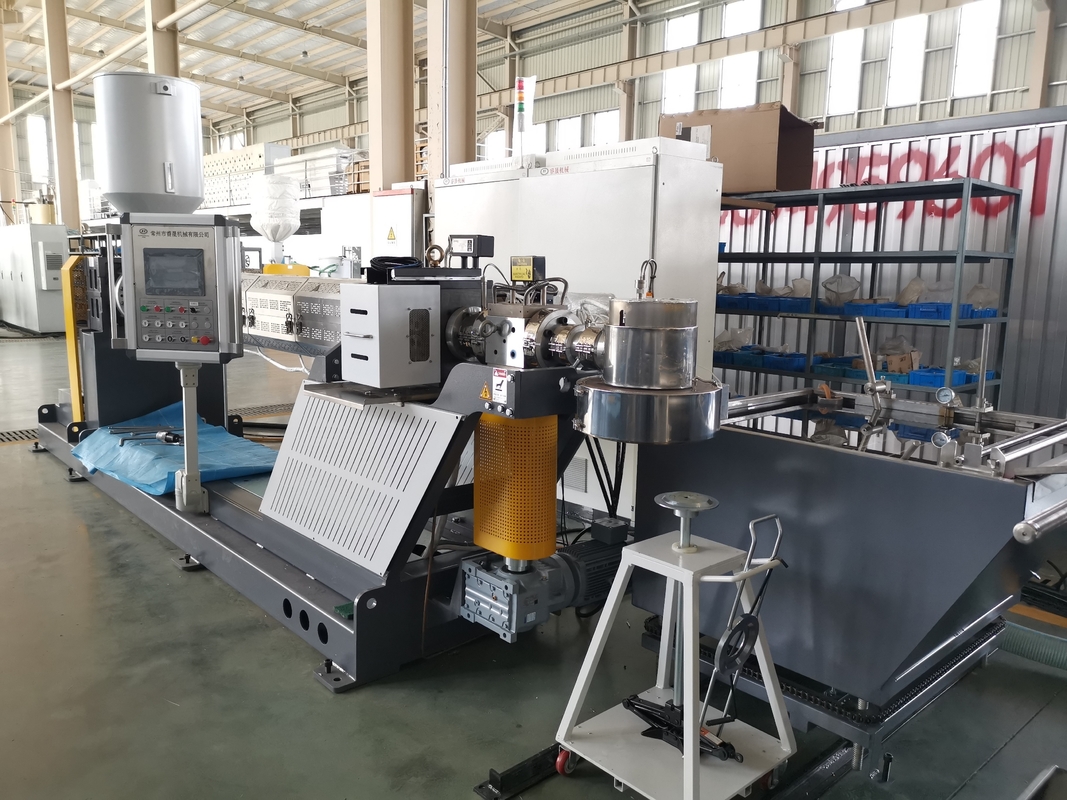

Polypropylene Packing Rope Monofilament Extrusion Machine 0.3mm 100kgh

1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0～72rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

(3) Filter: Auto screen changer.

(4) Pressure feedback system can adjust the screw speed automatically.

(5) Material of barrel heater: Far infraed

(6) Metering pump, rotation speed: 0-45 rotation.

(7) Electrical heating round spinneret: 1 set

(8) Spinneret plate: 2 pieces

2. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the automatic lifting of tank.

3. Dryer:1 set

4. Frist Seven roller stretching unit

(1) Five variable diameter rollers and two steel rollers.

(2) Max drafting force: 1000 daN.

(3) Steel box with accurately grind gear makes the rollers run smoothly.

5. Double layers hot blast stretching oven: 1 set

(1) Heating power: 23KW

(2) Oven length: 5000 mm

6. Second Seven roller stretching unit

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

7. Spool winder or ring twisting winder
