0.12-0.3mm 100kgh Monofilament Extrusion Machine Polyester Packing Rope
Key Attributes
Product Summary
Monofilament Extrusion Machine For Polyester Packing Rope 0.12-0.3mm 100kgh Product Description: 1. Extruder: 1 set (1) Screw dia.: 90mm; Rotation speed: 0～100rpm, (2) L:D: 30:1; Material of screw: 38CrMoALA; (3) Melt filter: CPF (4) Spinneret device: 2 sets (5) Metering pump:2 sets 2. Cooling Water ...
Product Details
0.3mm Monofilament Extrusion Machine
,100kgh Monofilament Extrusion Machine
,0.3mm industrial filament extruder
Monofilament Extrusion Machine For Polyester Packing Rope 0.12-0.3mm 100kgh
Product Description:
1. Extruder: 1 set
(1) Screw dia.: 90mm; Rotation speed: 0～100rpm,
(2) L:D: 30:1; Material of screw: 38CrMoALA;
(3) Melt filter: CPF
(4) Spinneret device: 2 sets
(5) Metering pump:2 sets
2. Cooling Water Tank:1 set
(1) The tank is made by Stainless Steel 304.
3. Seven roller Stretching unit A,
(1) Seven pieces variable diameter roller with hard chrome plating.
(2) Steel cabinet with accurately grind gear.
4. Hot water Tank:1 set
(1) Heating power: 50KW; Electrical heating, the heating pipe are in the tank.
(2) Material is stainless steel 304 with heat preservation.
5. Seven rollers stretching unit B: 0-180m
(1) Seven pieces variable diameter roller with hard chrome plating.
(2) Steel cabinet with accurately grind gear.
6. Spindle winder
(1) Cops winder or spool winder.
(2) Winding bobbin as client's reqeust.
Parameter:
| Screw diameter | Φ90mm | ||
| Raw material | PET flakes | Filament size | 0.1-0.5mm |
| Capacity | 100Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 2 sets |
| Screw material | 38CrMoALA | Winder | 48 spindles |
| Max linear speed | 180m/min | Instillation power | 200Kw |
| Nozzle holes | 300 holes | Overall size | 28×2.5×2.5m |

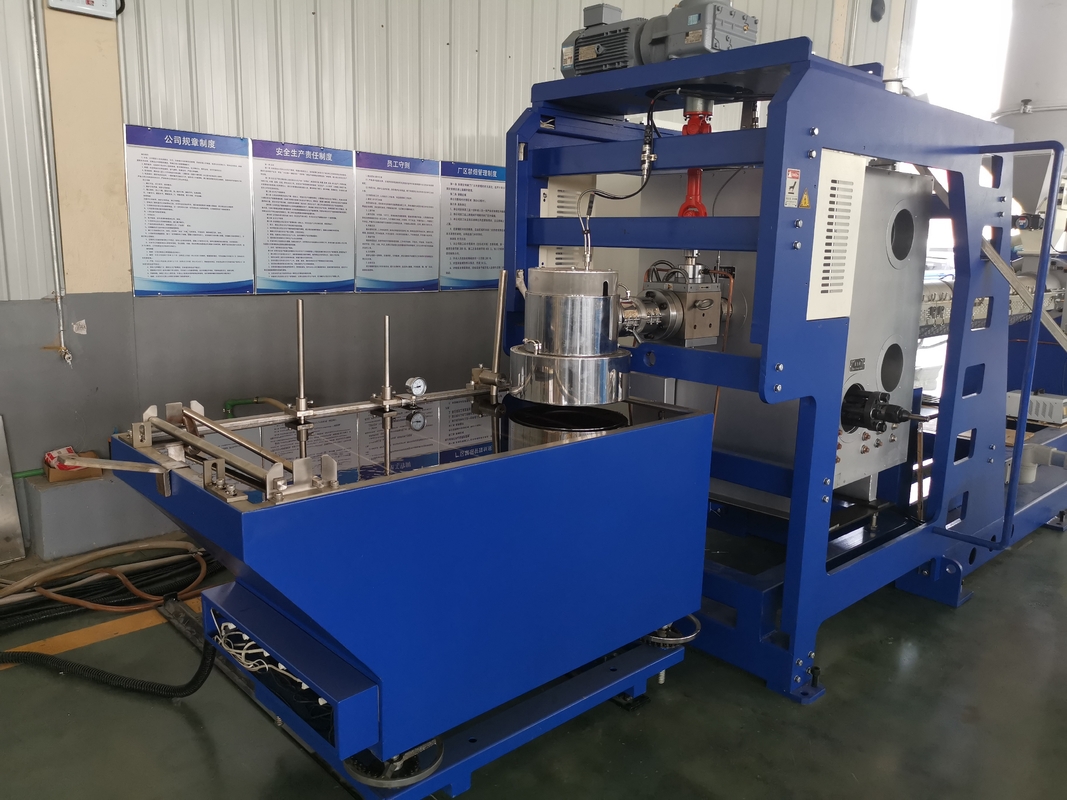

Pictures:
