300D Monofilament Yarn Machine For Polyester Knitted 3D Spacer Air Mesh Fabric
Key Attributes
Product Summary
Monofilament Yarn Machine For Polyester Knitted 3D Spacer Air Mesh Fabric 0.2mm Product Description: 1. Extruder: 1 set (1) Screw dia.: 70mm; (2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is special design for PET chips. (3) Hard tooth reducer: Jiangyin Gearbox manufactuer. (4) Pressure ...
Product Details
Polyester Monofilament Yarn Machine
,300D Monofilament Yarn Machine
,300D Monofilament Extrusion Machine
Monofilament Yarn Machine For Polyester Knitted 3D Spacer Air Mesh Fabric 0.2mm
Product Description:
1. Extruder: 1 set
(1) Screw dia.: 70mm;
(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is special design for PET chips.
(3) Hard tooth reducer: Jiangyin Gearbox manufactuer.
(4) Pressure automatic feedback system which adjust the screw speed.
(5) Melt filter: manual type
(6) Pressure sensor and gauges: Shanghai
(7) 30cc Metering pump:1 set
(8) Driving power of metering pump: 3.7kw
(9) Heater: Electric heating ring.
(10) Spinneret device: 1 Set
2. Quenching Tank:1 set
(1) The tank is made by Stainless Steel 304.
(2) Use big window.
3. Seven roller Stretching unit A: 1 set
(1) Roller size: φ270×750×7,
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear.
(4) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.
(5) The center height is 1100mm
4. Hot water Tank:1 set
(1) Size (L×W×H) : 4000×800×1100 mm
(2) Heating power: 35KW; Electrical heating.
(3) Material is stainless steel 304.
(4) Equip one moisture absorption device: 4KW
5. Seven rollers stretching unit B: 0-160m
(1) Roller size: φ270×750×7,
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Equip one pressing rollers
(5) The center height is 1100mm
6. Single layers hot blast stretching oven: 1 set
(1) Fan power: 2.2KW×2 sets.
(2) Heating power: 23KW
(3) Oven length: 4300 mm
7. Seven rollers stretching unit C: 1 set
(1) Roller size: φ270×750×7
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Driving motor and reducer:Zhejiang Tongli Reducer Co., Ltd.
(5) The center height is 1100mm
8. Single layers hot blast setting oven: 1 set
(1) Fan power: 2.2KW×2 sets,
(2) Heating power: 23KW
(3) Oven length: 5000 mm
9. Seven rollers stretching unit D: 1 set
(1) Roller size: φ270×750×7
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear makes the roller run smoothly.
(4) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.
(5) The center height is 1100mm
10. Lubricating system: 1 set
11. Waster yarn collectors: 1 set
12. Winding collector: 300 spindles
(1) The frame transmission is frequency control, driving motor: 2.2kw
(3) Each spindle has on/off switch. Each screen has one voltage regulator.
Specification:
| Screw diameter | Φ70mm | ||
| Raw material | Polyester | Filament size | 300D |
| Capacity | 30Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 300 spindles |
| Max linear speed | 150m/min | Instillation power | 280Kw |
| Nozzle holes | 280 holes | Overall size | 48×2.8×2.8m |

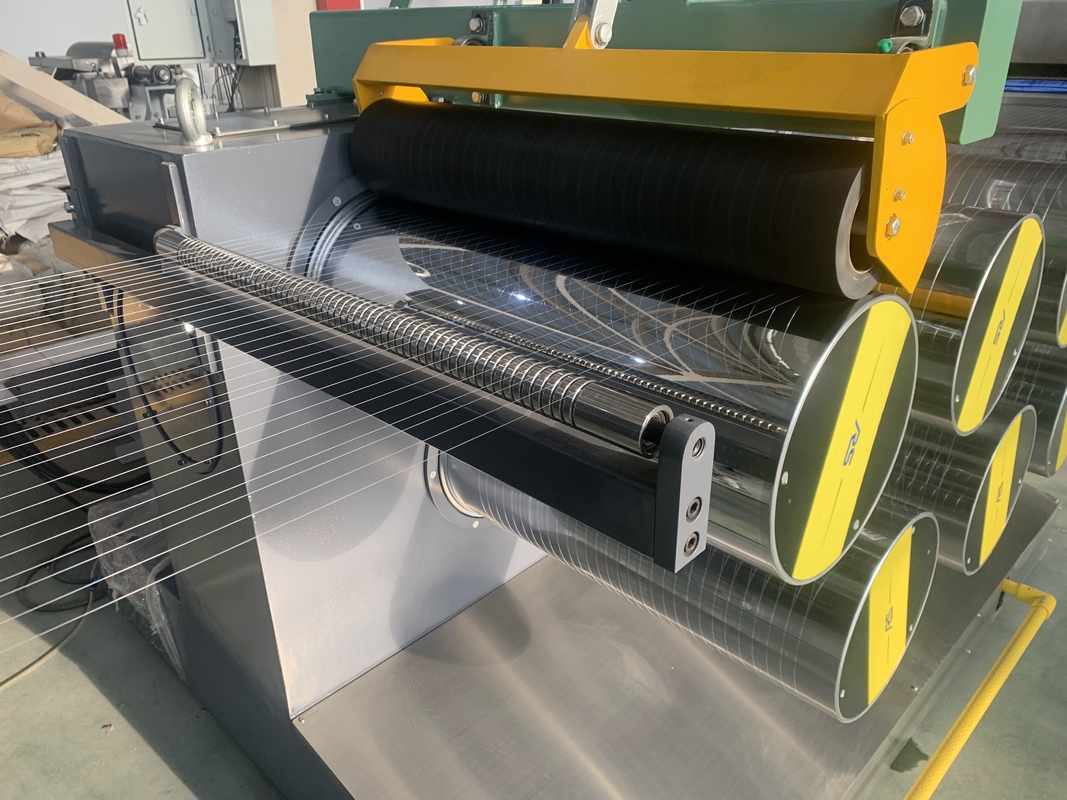

Picture:
