0.25mm Monofilament Extruder Machine Yarn Extruder White Semi Dull Polyester Yarn
Key Attributes
Product Summary
Monofilament Yarn Machine For 0.25mm White Semi Dull Polyester Yarn For Hat Product Description: 1. Extruder: 1 set (1) Screw diameter: 85mm, screw speed: 0～72 rpm. (2) L:D: 30:1, Material of screw: 38CrMoALA , (3) Ppressure automatic feedback system. (4) Material of barrel heater: Cast aluminium. ...
Product Details
Dull Polyester Monofilament Extruder Machine
,0.25mm Monofilament Extruder Machine
,0.25mm yarn extruder
Monofilament Yarn Machine For 0.25mm White Semi Dull Polyester Yarn For Hat
Product Description:
1. Extruder: 1 set
(1) Screw diameter: 85mm, screw speed: 0～72 rpm.
(2) L:D: 30:1, Material of screw: 38CrMoALA ,
(3) Ppressure automatic feedback system.
(4) Material of barrel heater: Cast aluminium.
(5) Metering pump: 1 set, rotation speed: 0-40 rotation.
2. Quenching tank: 1 set
(1) Stainless steel 304 tank
3. Seven roller stretching unit A
(1) Seven variable diameter rollers, material: steel roller.
(2) Steel box with accurately grind gear.
(3) Equip 1 pressing roller.
4. Overflow type hot water tank:1 set
(1) Tank size: 4000mm
(2) Heating power: 45KW in 2 zones,
(3) The tank is made by SS 304.
(4) Water circulating water pump 1 set
5. Seven roller stretching unit B
(1) Seven variable diameter rollers, material: steel roller
(2) Equip 1 pressing roller.
6. Single layer hot blast stretching oven: 1 set
(1) Oven length: 4000 mm
(2) Special design of hot air channel.
7. Seven roller stretching unit C, with brake resistor
(1) Seven variable roller, material: Steel pipe.
(2) Steel structure box with accurately grind gear.
8. Single layers hot blast annealing oven: 2 sets
(1) Heating power: 22.5kw
(2) Special design of hot air
9. Seven roller stretching unit D.
(1) Seven variable roller, material: Steel pipe.
(2) Steel structure box with accurately grind gear.
10. Lubricating system: 1 set
(1) Frequency control of speed
11. Spindle winder: 180 spindles
(1) Bobbin: Cops winder.
(2) The frame transmission is frequency control
12. Waster yarn collectors: 1 set
Specification:
| Screw diameter | Φ85mm | ||
| Raw material | Polyester | Filament size | 0.25mm |
| Capacity | 100Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 288 spindles |
| Max linear speed | 160m/min | Instillation power | 300Kw |
| Nozzle holes | 264 holes | Overall size | 45×2.8×2.8m |

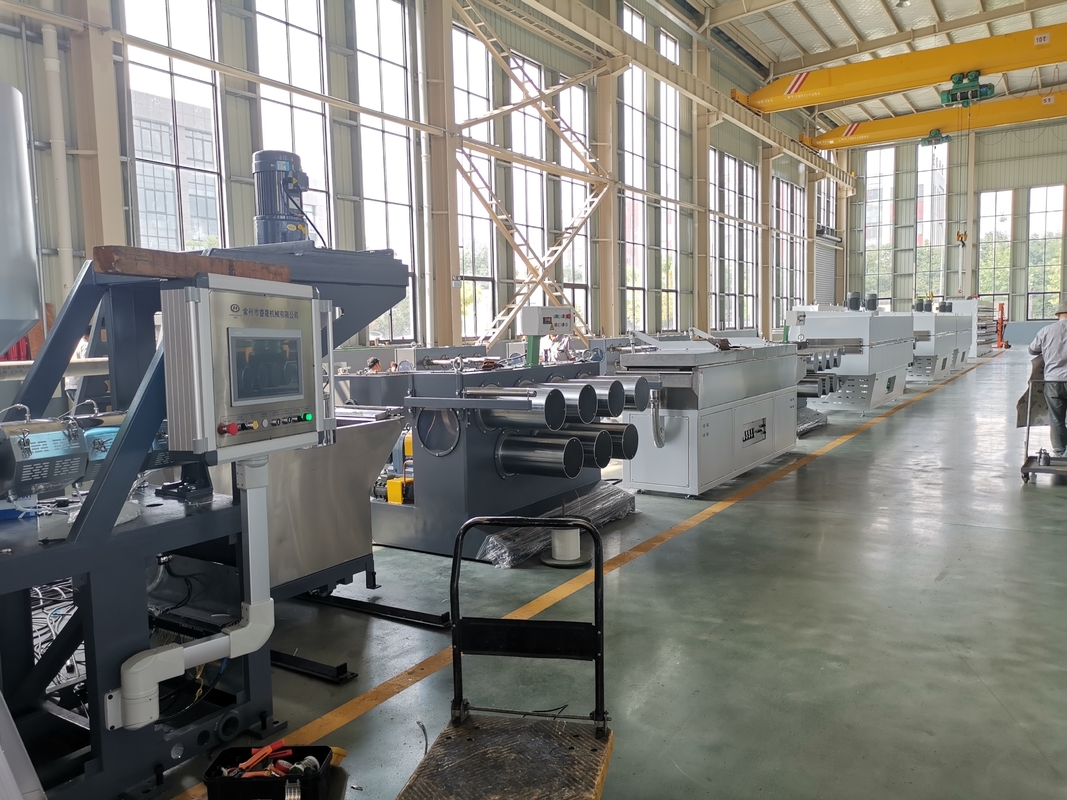

Pictures:
