1mm Monofilament Extrusion Line For PP Tubeless Yellow Baler Rope

1. Extruder 1set

Material: PP PE Virgin

Screw barrel brand: Jinhai screw

Screw diameter: Φ90MM

Screw L/D:1:33

Screw material: 38GrMoAl

Screw max. rotation: 120r/min

Barrel heating use cast alumunium heating band, Solid relay control the heating

Barrel total heating power and zones: 35KW

Surface hardened Gearbox brand

Die use inlay stainless steel heating pipe, Solid relay control the heating

Die length: 1000MM

Film thickness: 0.07MM-0.35MM

die total heating power and zones: 12KW

Main motor: Siemens(China) AC motor

Motor power:30KW

Screen change method: auto-belt change screen

Loading system: vacuum

Loading system brand: shini

2.Cooling water tank 1 set

Material: Stainless steel

Up and down adjustable

3. Lifting Film broken pulling device: 1 set

Squeezing water rubber roller: 1 set

Lifting device 1set motor power: 3KW

Squeezing water device: 1 set

Water suction device fan power: 3kw

Film broken device 1set

Characters: up and down, sideway movable

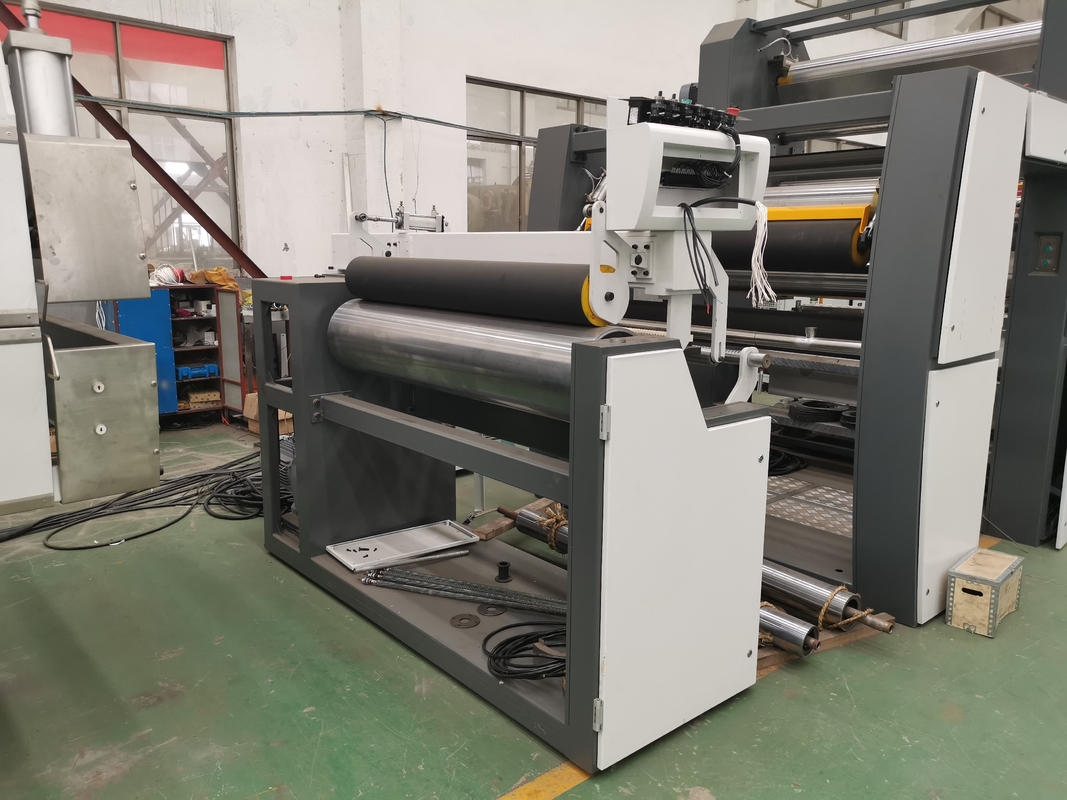

Pulling roller 2sets

Roller outer diameter: Φ185MM

Roller surface treatment: Hard Cr surface polished finish or mirror

treatment

Motor power: 5.5KW

Max. Speed : 55 m/min

For direct return of narrow edge trims of non-stretched film into the

extruder, consisting of a shredding mill with blower, piping and airseparator (cyclone).

Shredding Mill Motor 2.2 kW

Blower Motor 2.2 kW

4. Stretching drying plate 1set

Drying plate length: 3500MM

Drying plate width: 850MM

Drying plate thickness: 16mm

Drying plate surface treatment:hard chromium plating and polishing

Heating power: 12KW

Drying plate equip with heat preservation upper cover, pneumatic to open

5. 7-roller stretching machine : 1 set

Steel roller dimension: Φ315x850mm

Roller surface treatment: hard chromium plating, glazing treatment.

Stretching 5-roller motor power: 15KW

Setting 2-roller motor power: 4KW

Max. Speed 280 m/min

6. Fiber system 1set

Motor power:5.5Kw

7. Waste yarn collection system one set

Motor power 7.5KW

8. Winding machine: Spindle.

9. Electrical control system: 1set

10. Machine weight: about 252T
