0.25mm HDPE Monofilament Yarn Machine For Sport Field Net

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per year

Get Best Price
High Light:

HDPE Monofilament Yarn Machine

,

0.25mm Monofilament Yarn Machine

,

0.25mm pp flat yarn extruder

Material:
HDPE
Yarn Size:
0.25mm
Application:
Batting Cage Net
Voltage:
380V
Screw Diameter:
85mm
Motor Power:
250kw
Length:
39 Meters
Color:
Black
Material:
HDPE
Yarn Size:
0.25mm
Application:
Batting Cage Net
Voltage:
380V
Screw Diameter:
85mm
Motor Power:
250kw
Length:
39 Meters
Color:
Black
0.25mm HDPE Monofilament Yarn Machine For Sport Field Net

Monofilament Yarn Machine For HDPE Sport Field Batting Cage Net Outdoor 0.25mm



Product Description:

1.85×33 Extruder: 1 set
(1) Screw diameter: 80mm, screw speed: 0~80 rpm.
(2) L:D: 33:1, Material of screw: 38CrMoALA;
(3) Automatic screen changer:1 set
(4) Pressure feedback system.
(5) Material of barrel heater: Far infarad
(6) Electric heating round spinneret: 1 set
(7) Ceramic heating rings for spinneret.
(8) Spinneret components with disassembly support.
(9) Metering pump, Frequency control of metering pump speed.



2.Quenching tank: 1 set
(1) The tank is made by SS 304.
(2)  Stainlees steel distributing bar

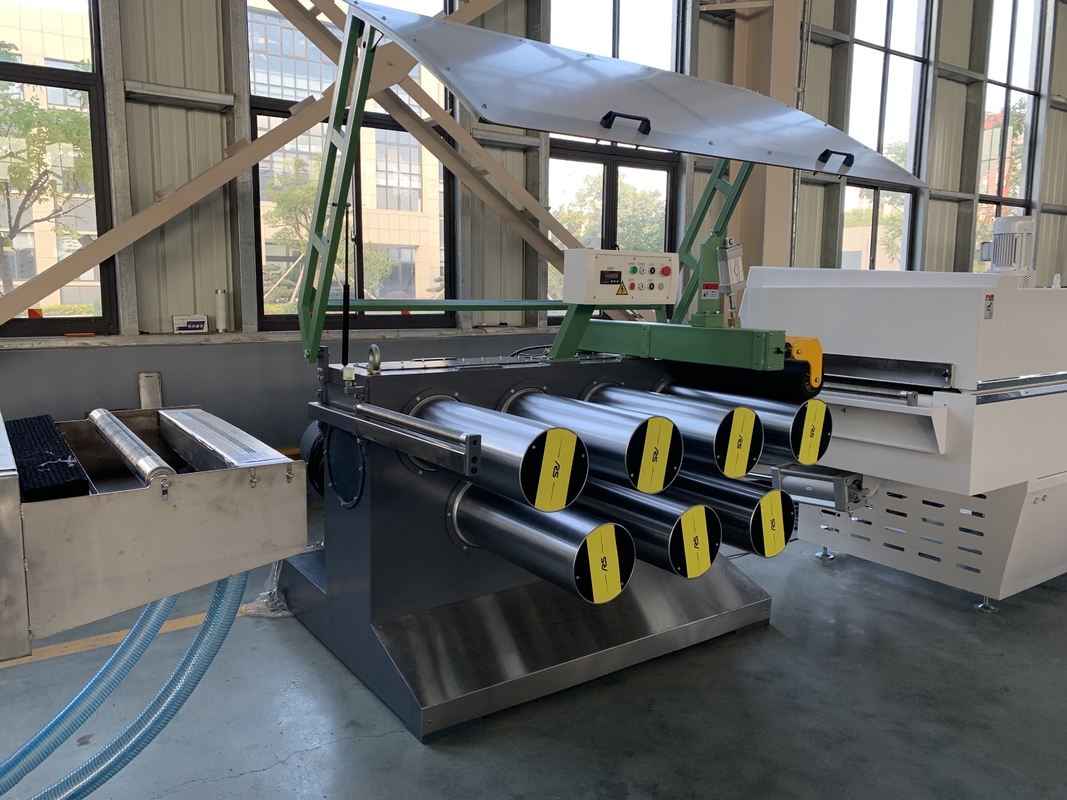

3. First Seven roller stretching unit: 1 set
(1)Seven viable diameter rollers, there are five rollers are covered with rubber to resist skidding.
(2) Steel structure box with accurately grind gear.
(3) Built-out oil lubrication system.



4.Hot water tank:1 set
(1) Heating power: 27kw, two zones heater.
(2) Double pressure rollers with twin cylinder opening system.


5. Second Seven roller stretching unit:1 set
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear.
(3) Built-in oil lubrication system.


6. Single layer hot blast annealing oven: 1 set
(1) Fan power: 2.2KW×2 sets
(2) Heating power: 23KW
(3) Oven length: 5000 mm

7.Third Seven roller stretching unit: 1 set
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear.

8. Warping winder: 4 sets
1)Motor: 150kg torque motor

Total installation power: 180KW





Parameter:



Screw diameter Φ85mm
Raw material HDPE Filament size 0.25mm
Capacity 100Kg/H Filament shape round
Screw L:D 33:1 Stretching unit 3 sets
Screw material 38CrMoALA Winder 360 spindles
Linear speed 160m/min Instillation power 250Kw
Nozzle holes 324 holes Overall size 39×2.6×2.5m



Pictures:

0.25mm HDPE Monofilament Yarn Machine For Sport Field Net 0
