100D PBT Monofilament Yarn Machine Tapered Eyelash Filaments

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 s per year

Get Best Price
High Light:

100D Monofilament Yarn Machine

,

PBT Monofilament Yarn Machine

,

PBT monofilament yarn making machine

Application:
Makeup Eyelash Filaments
Style:
Tapered
Monofilament Diameter:
100D
Speed:
150m/min
Material:
PBT
Color:
Black
Frequency:
50Hz
Oven:
3 Sets
Application:
Makeup Eyelash Filaments
Style:
Tapered
Monofilament Diameter:
100D
Speed:
150m/min
Material:
PBT
Color:
Black
Frequency:
50Hz
Oven:
3 Sets
100D PBT Monofilament Yarn Machine Tapered Eyelash Filaments

Monofilament Yarn Machine For PBT Tapered Makeup Eyelash Filaments 100D



Product Description:

1. Extruder: 1 set

(1) Screw dia.: 70mm;

(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is special design for PET chips.

(3) Hard tooth reducer: Jiangyin Gearbox manufactuer.

(4) Pressure automatic feedback system which adjust the screw speed.

(5) Melt filter: manual type

(6) Pressure sensor and gauges: Shanghai

(7) 30cc Metering pump:1 set

(8) Driving power of metering pump: 3.7kw

(9) Heater: Electric heating ring.

(10) Spinneret device: 1 Set



2. Quenching Tank:1 set

(1) The tank is made by Stainless Steel 304.

(2) Use big window.



3. Seven roller Stretching unit A: 1 set

(1) Roller size: φ270×750×7,

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear.

(4) Driving motor and reducer is from Zhejiang Tongli.

(5) The center height is 1100mm



4. Hot water Tank:1 set

(1) Size (L×W×H) : 4000×800×1100 mm

(2) Heating power: 35KW; Electrical heating.

(3) Material is stainless steel 304.

(4) Equip one moisture absorption device: 4KW



5. Seven rollers stretching unit B: 0-160m

(1) Roller size: φ270×750×7,

(2) Power of motor: 15KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Equip one pressing rollers

(5) The center height is 1100mm



6. Hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 23KW

(3) Oven length: 4300 mm



7. Seven rollers stretching unit C: 1 set

(1) Roller size: φ270×750×7

(2) Power of motor: 15KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer:Zhejiang Tongli



8. Hot blast setting oven: 1 set

(1) Fan power: 2.2KW×2 sets,

(2) Heating power: 23KW

(3) Oven length: 5000 mm



9. Seven rollers stretching unit D: 1 set

(1) Roller size: φ270×750×7

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer is from Zhejiang Tongli.

(5) The center height is 1100mm



10. Hot blast setting oven: 1 set

(1) Fan power: 2.2KW×2 sets,

(2) Heating power: 23KW

(3) Oven length: 5000 mm



11. Seven rollers stretching unit E: 1 set

(1) Roller size: φ270×750×7

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer is from Zhejiang Tongli.



12. Lubricating system: 1 set



13. Waster yarn collectors: 1 set



14. Winding collector: 216 spindles



Specification:

Screw diameter Φ50mm
Raw material PBT Filament size 100D
Capacity 30Kg/H Filament shape round
Screw L:D 30:1 Stretching unit 5 sets
Screw material 38CrMoALA Winder 216 spindles
Max linear speed 160m/min Instillation power 400Kw
Nozzle holes 200 holes Overall size 55×2.6×2.8m

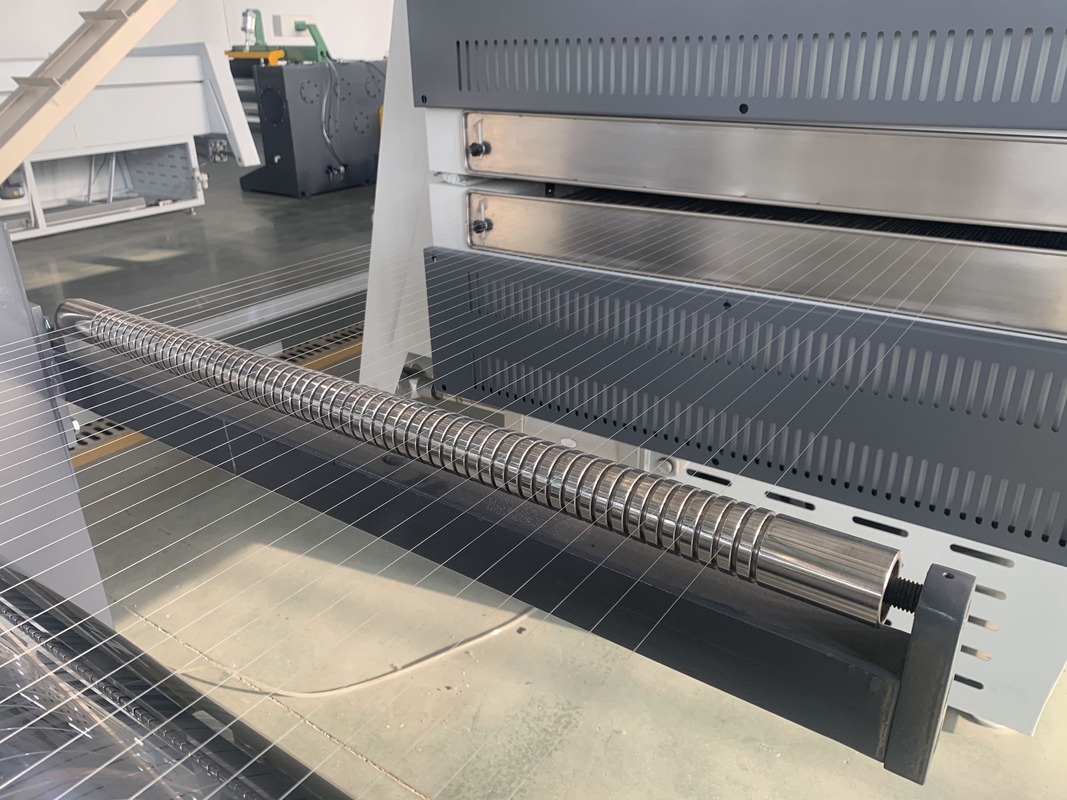

Picture:

100D PBT Monofilament Yarn Machine Tapered Eyelash Filaments 0
