150D Wire Brush Making Machine Synthetic Fiber PBT Eyelash Filament 150D
Key Attributes
Product Summary
Brush Making Machine For Synthetic Fiber PBT Eyelash Filament 150D Product Description: 1. Extruder: 1 set (1) Screw dia.: 50mm; (2) L:D: 30:1; Screw material: 38CrMoALA; The screw is special design for PBT. (3) Reducer: Jiangyin Gearbox manufactuer. (4) Pressure automatic feedback system. (5) ...
Product Details
150D wire brush making machine
,PBT wire brush making machine
,Synthetic Fiber yarn extruder
Brush Making Machine For Synthetic Fiber PBT Eyelash Filament 150D
Product Description:
1. Extruder: 1 set
(1) Screw dia.: 50mm;
(2) L:D: 30:1; Screw material: 38CrMoALA; The screw is special design for PBT.
(3) Reducer: Jiangyin Gearbox manufactuer.
(4) Pressure automatic feedback system.
(5) Pressure sensor and gauges: Shanghai
(6) 20cc Metering pump:1 set
(7) Driving motor of metering pump: 3.7kw
(8) Heater: Electric heating ring.
(9) Spinneret device: 1 Set
2. Quenching Tank:1 set
(1) Stainless Steel 304 tank
3. Seven roller Stretching unit A: 1 set
(1) Roller size: φ270×750×7,
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear.
(4) Reducer is from Zhejiang Tongli.
4. Hot water Tank:1 set
(1) Size (L×W×H) : 4000×800×1100 mm
(2) Heating power: 35KW;
(3) Material is stainless steel 304.
(4) Equip one moisture absorption device: 4KW
5. Seven rollers stretching unit B: 0-160m
(1) Roller size: φ270×750×7,
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear.
(4) Reducer is from Zhejiang Tongli.
(5) The center height is 1100mm
6. Hot blast stretching oven: 1 set
(1) Fan power: 2.2KW×2 sets.
(2) Heating power: 23KW
(3) Oven length: 4300 mm
7. Seven rollers stretching unit C: 1 set
(1) Roller size: φ270×750×7
(2) Power of motor: 15KW
(3) Steel cabinet with accurately grind gear.
(4) Reducer is from Zhejiang Tongli.
8. Hot blast setting oven: 1 set
(1) Fan power: 2.2KW×2 sets,
(2) Heating power: 23KW
(3) Oven length: 5000 mm
9. Seven rollers stretching unit D: 1 set
(1) Roller size: φ270×750×7
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear.
(4) Reducer is from Zhejiang Tongli.
10. Hot blast setting oven: 1 set
(1) Fan power: 2.2KW×2 sets,
(2) Heating power: 23KW
(3) Oven length: 5000 mm
11. Seven rollers stretching unit E: 1 set
(1) Roller size: φ270×750×7
(2) Power of motor: 7.5KW
(3) Steel cabinet with accurately grind gear.
(4) Reducer is from Zhejiang Tongli.
12. Lubricating system: 1 set
13. Waster yarn collectors: 1 set
14. Winding collector: 228 spindles
Specification:
| Screw diameter | Φ50mm | ||
| Raw material | PBT | Filament size | 150D |
| Capacity | 30Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 5 sets |
| Screw material | 38CrMoALA | Winder | 228 spindles |
| Max linear speed | 160m/min | Instillation power | 410Kw |
| Nozzle holes | 210 holes | Overall size | 56×2.6×2.8m |

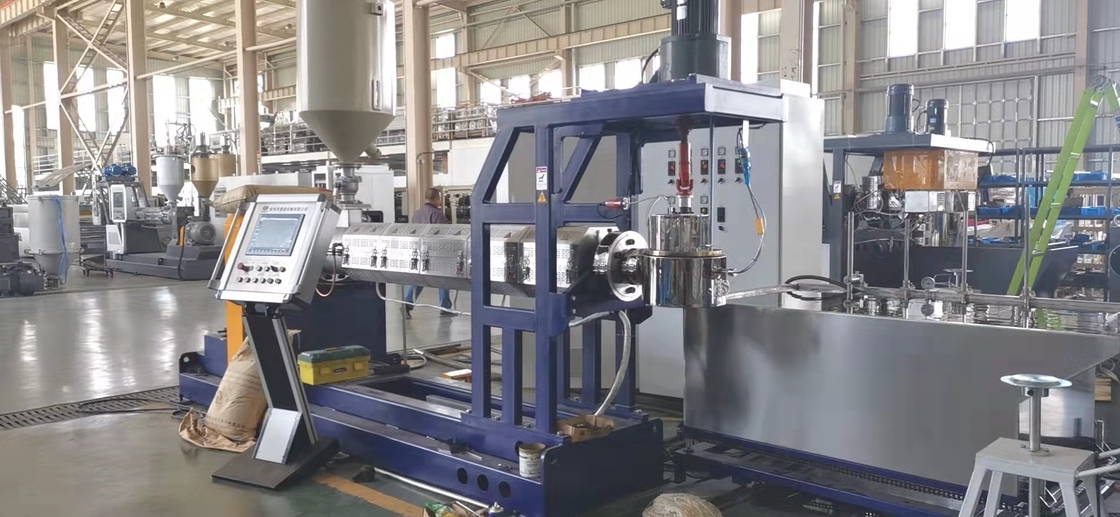

Picture:
