300D Monofilament Extrusion Machine

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 s per year

Get Best Price
Highlight:

multifunction Monofilament Extrusion Machine

,

300D Monofilament Extrusion Machine

Name:
Spacer Fabric
Style:
Karl Mayer Graphene
Monofilament Diameter:
300D
Speed:
180m/min
Material:
PET
Knitted Type:
Warp
Application:
Home Textiile
Color:
Customized
Name:
Spacer Fabric
Style:
Karl Mayer Graphene
Monofilament Diameter:
300D
Speed:
180m/min
Material:
PET
Knitted Type:
Warp
Application:
Home Textiile
Color:
Customized
300D Monofilament Extrusion Machine

PET Monofilament Machine For 3D Karl Mayer Graphene Air Mesh Spacer Fabric



Product Description:

1. Extruder: 1 set

(1) Screw dia.: 70mm;

(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is for 100%  PET

(3) Hard tooth reducer: Jiangyin Gearbox manufactuer.

(4) Pressure automatic feedback system to control screw speed.

(5) Melt filter: customized

(6) Pressure sensor and gauges: Zhaohui

(7) Melt pump:1 set

(8) Power of melt pump: 3.7kw

(9) Heater: Electric .

(10) Spinneret device: 1 Set



2. Quenching Tank:1 set

(1) The tank is made by Stainless Steel.

(2) Use big window.

(3) Heating power: 18kw



3. Seven roller Stretching unit A: 1 set

(1) Roller size: φ270×750×7, All steel roller.

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear.

(4) Driving motor and reducer is from Zhejiang Tongli Reducer.

(5) The center height is 1100mm



4. Hot water Tank:1 set

(1) Size (L×W×H) : 4000×800×1100 mm

(2) Heating power: 35KW; Electrical heating.

(3) Material is stainless steel 304.

(4) Equip one moisture absorption device: 4KW



5. Seven rollers stretching unit B: 0-160m

(1) Roller size: φ270×750×7,All steel roller.

(2) Power of motor: 15KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Equip one pressing rollers

(5) The center height is 1100mm



6. Single layers hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 23KW

(3) Oven length: 4300 mm



7. Seven rollers stretching unit C: 1 set

(1) Roller size: φ270×750×7, All steel roller.

(2) Power of motor: 15KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer:Zhejiang Tongli Reducer.

(5) The center height is 1100mm



8. Single layers hot blast setting oven: 1 set

(1) Fan power: 2.2KW×2 sets,

(2) Heating power: 23KW

(3) Oven length: 5000 mm



9. Seven rollers stretching unit D: 1 set

(1) Roller size: φ270×750×7,All steel roller.

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer is from Zhejiang Tongli Reducer.

(5) The center height is 1100mm



10. Lubricating system: 1 set



11. Waster yarn collectors: 1 set

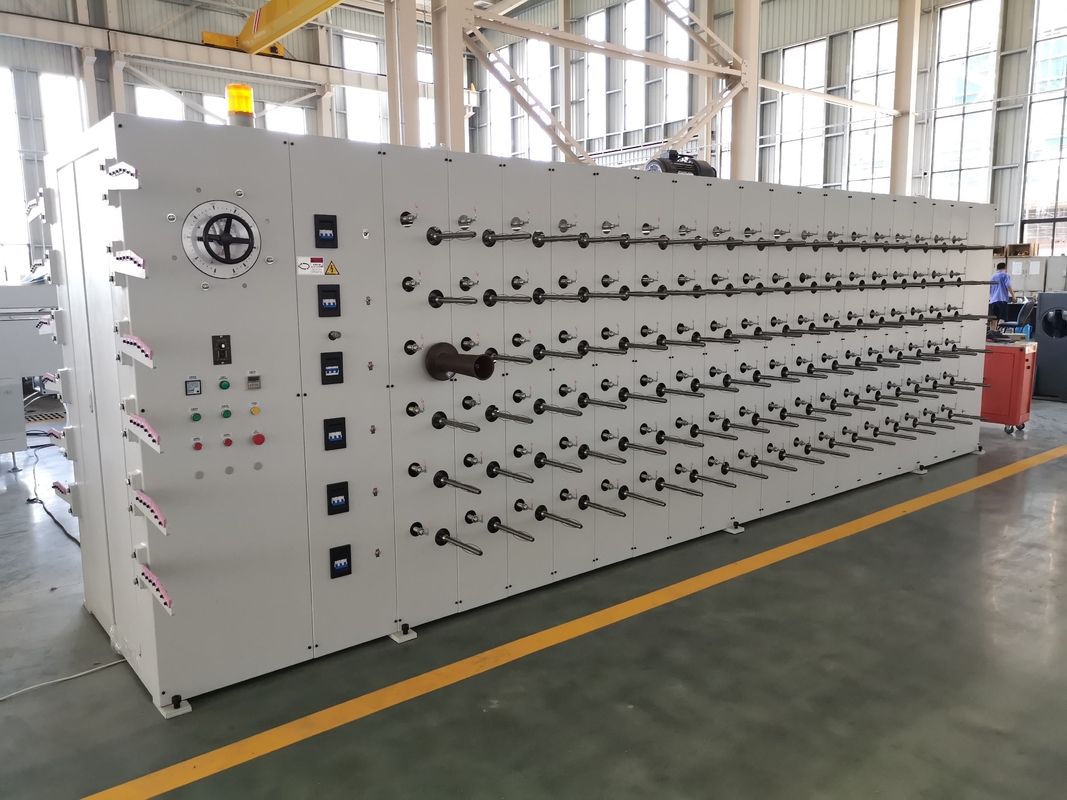

12. Winding collector: 300 spindles

(1) The frame transmission is frequency control, driving motor: 2.2kw

(2) F7 spools, size as per client's request.

(3) Each spindle has on/off switch.



Specification:

Screw diameter Φ75mm
Raw material PET Filament size 280D
Capacity 35Kg/H Filament shape round
Screw L:D 30:1 Stretching unit 4 sets
Screw material 38CrMoALA Winder 300 spindles
Max linear speed 180m/min Instillation power 300Kw
Nozzle holes 284 holes Overall size 47.5×2.8×2.8m




Picture:

300D Monofilament Extrusion Machine 0
